Chapter 2 Building an Object-Oriented Model
39

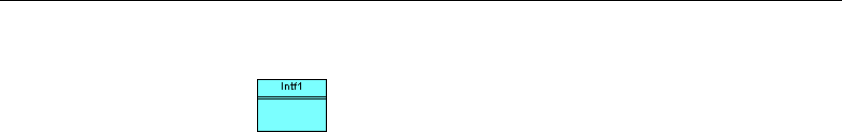

The following symbol appears at the click position:
At creation, an interface is named Intfn, where n is a number assigned in
the order of the creation of objects.
3 Click the Pointer tool in the palette toolbar.
4 Double-click the new interface symbol in the diagram.
The interface property sheet appears.
5 Type an interface name and an interface code.
6 Click OK.
The newly created interface is visible in the Browser.
Modifying interface properties
There are two approaches to modifying interface properties:
♦ Modify an interface property sheet
♦ Modify an entry in the list of interface
Modifying interface properties from its property sheet
The interface property sheet displays the definition of an interface, which you
can modify.
v To modify interface properties from its property sheet:
1 Double-click the interface in the Browser.
or
Double-click the interface in the list of interfaces.
or
Double-click the interface in a diagram.
