Installation Instructions for

ENERAL RODUCT NFORMATION

These fixtures are intended to be installed utilizing

NEC compliant junction boxes.

This product is suitable for damp locations.

Incandescent version may be dimmed with a standard incandescent

dimmer. LED version may be dimmed with a LED dimmer. Consult

lamp manufacturer for additional information.

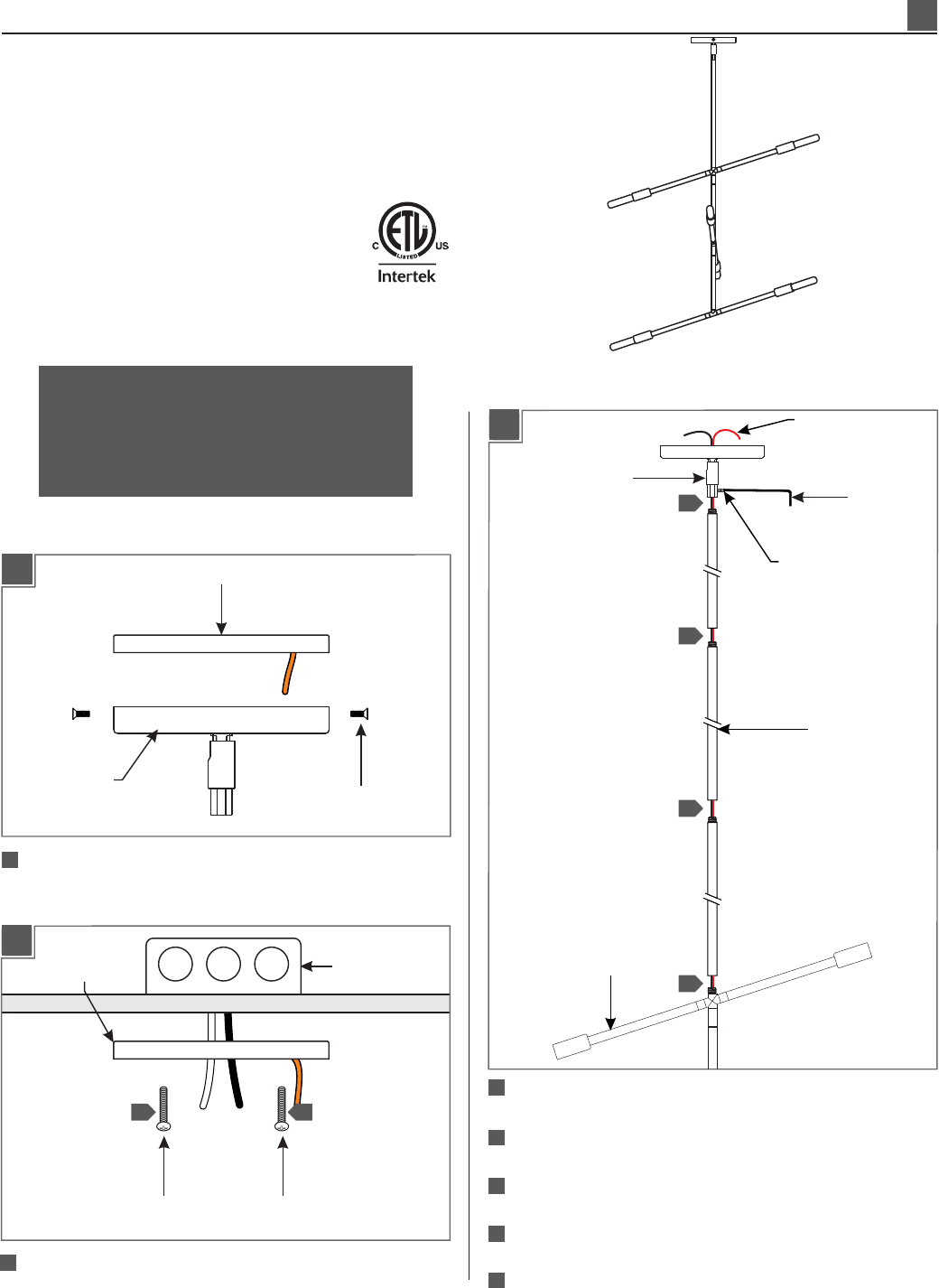

1.0

Install the Mounting Plate

MOUNTING PLATE

CANOPY

Separate the mounting plate assembly from the canopy

by unscrewing the two fixture screws on the canopy.

Secure the mounting plate to the electrical box with the

two #8-32 screws.

MOUNTING

PLATE

ELECTRICAL BOX

#8-32 SCREW

FIXTURE SCREW

#8-32 SCREW

HANG STRAIGHT

STEM

FIXTURE

SET SCREW

Loosen the set screw on the hang straight using the

provided Allen wrench.

Determine desired length of fixture using the provided

stems and assemble them by screwing them together.

Feed the fixture wires through the stem assembly and

screw it to the fixture.

Feed the fixture wires through the hang straight and

screw it onto the stem assembly.

Re-tighten the set screw on the hang straight.

Assemble the Fixture

ALLEN

WRENCH

FIXTURE WIRES

CAUTION RISK OF FIRE-

This product must be installed in accordance with

the applicable installation code by a person familiar

with the construction and operation of the product

and the hazards involved.

Use minimum 90°c supply conductors.

GP I :

Chandelier

Summary of content (2 pages)

PAGE 1
Installation Instructions for Chandelier 1.0 GENERAL PRODUCT INFORMATION: These fixtures are intended to be installed utilizing NEC compliant junction boxes. This product is suitable for damp locations. Incandescent version may be dimmed with a standard incandescent dimmer. LED version may be dimmed with a LED dimmer. Consult lamp manufacturer for additional information.
PAGE 2
Install the Fixture 3C 3A ELECTRICAL BOX 5 6 MOUNTING PLATE 6" 1 Leave 6" of the cord behind the canopy for power connections. Cut the excess cord. 2 From the end of the cord, strip the insulation 4" using a sharp knife. Make sure not to nick the inner wires. 3 5 Connect the ground wire to a suitable ground in accordance with local electrical codes. 6 Connect the black wire to the neutral power wire with a wire nut. 7 Connect the red wire to the hot power wire with a wire nut.
