User Guide
Table Of Contents
- Table of Contents
- Preface
- 1 Overview
- 2 SRIO Functional Description
- 3 Logical/Transport Error Handling and Logging
- 4 Interrupt Conditions
- 5 SRIO Registers
- 5.1 Introduction
- 5.2 Peripheral Identification Register (PID)
- 5.3 Peripheral Control Register (PCR)
- 5.4 Peripheral Settings Control Register (PER_SET_CNTL)
- 5.5 Peripheral Global Enable Register (GBL_EN)
- 5.6 Peripheral Global Enable Status Register (GBL_EN_STAT)
- 5.7 Block n Enable Register (BLKn_EN)
- 5.8 Block n Enable Status Register (BLKn_EN_STAT)
- 5.9 RapidIO DEVICEID1 Register (DEVICEID_REG1)
- 5.10 RapidIO DEVICEID2 Register (DEVICEID_REG2)
- 5.11 Packet Forwarding Register n for 16b DeviceIDs (PF_16B_CNTLn)
- 5.12 Packet Forwarding Register n for 8b DeviceIDs (PF_8B_CNTLn)
- 5.13 SERDES Receive Channel Configuration Registers n (SERDES_CFGRXn_CNTL)
- 5.14 SERDES Transmit Channel Configuration Registers n (SERDES_CFGTXn_CNTL)
- 5.15 SERDES Macro Configuration Register n (SERDES_CFGn_CNTL)
- 5.16 DOORBELLn Interrupt Status Register (DOORBELLn_ICSR)
- 5.17 DOORBELLn Interrupt Clear Register (DOORBELLn_ICCR)
- 5.18 RX CPPI Interrupt Status Register (RX_CPPI_ICSR)
- 5.19 RX CPPI Interrupt Clear Register (RX_CPPI_ICCR)
- 5.20 TX CPPI Interrupt Status Register (TX_CPPI_ICSR)
- 5.21 TX CPPI Interrupt Clear Register (TX_CPPI_ICCR)
- 5.22 LSU Status Interrupt Register (LSU_ICSR)
- 5.23 LSU Clear Interrupt Register (LSU _ICCR)
- 5.24 Error, Reset, and Special Event Status Interrupt Register (ERR_RST_EVNT_ICSR)
- 5.25 Error, Reset, and Special Event Clear Interrupt Register (ERR_RST_EVNT_ICCR)
- 5.26 DOORBELLn Interrupt Condition Routing Register (DOORBELLn_ICRR)
- 5.27 DOORBELLn Interrupt Condition Routing Register 2 (DOORBELLn_ICRR2)
- 5.28 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR)
- 5.29 RX CPPI Interrupt Condition Routing Register (RX_CPPI _ICRR2)
- 5.30 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR)
- 5.31 TX CPPI Interrupt Condition Routing Register (TX_CPPI _ICRR2)
- 5.32 LSU Module Interrupt Condition Routing Register 0 (LSU_ICRR0)
- 5.33 LSU Module Interrupt Condition Routing Register 1 (LSU_ICRR1)
- 5.34 LSU Module Interrupt Condition Routing Register 2 (LSU_ICRR2)
- 5.35 LSU Module Interrupt Condition Routing Register 3 (LSU_ICRR3)
- 5.36 Error, Reset, and Special Event Interrupt Condition Routing Register (ERR_RST_EVNT_ICRR)
- 5.37 Error, Reset, and Special Event Interrupt Condition Routing Register 2 (ERR_RST_EVNT_ICRR2)
- 5.38 Error, Reset, and Special Event Interrupt Condition Routing Register 3 (ERR_RST_EVNT_ICRR3)
- 5.39 INTDSTn Interrupt Status Decode Registers (INTDSTn_DECODE)
- 5.40 INTDSTn Interrupt Rate Control Registers (INTDSTn_RATE_CNTL)
- 5.41 LSUn Control Register 0 (LSUn_REG0)
- 5.42 LSUn Control Register 1 (LSUn_REG1)
- 5.43 LSUn Control Register 2 (LSUn_REG2)
- 5.44 LSUn Control Register 3 (LSUn_REG3)
- 5.45 LSUn Control Register 4 (LSUn_REG4)
- 5.46 LSUn Control Register 5 (LSUn_REG5)
- 5.47 LSUn Control Register 6 (LSUn_REG6)
- 5.48 LSU Congestion Control Flow Mask n (LSU_FLOW_MASKS n)
- 5.49 Queue Transmit DMA Head Descriptor Pointer Registers (QUEUEn_TXDMA_HDP)
- 5.50 Queue Transmit DMA Completion Pointer Registers (QUEUEn_TXDMA_CP)
- 5.51 Queue Receive DMA Head Descriptor Pointer Registers (QUEUEn_RXDMA_HDP)
- 5.52 Queue Receive DMA Completion Pointer Registers (QUEUEn_RXDMA_CP)
- 5.53 Transmit Queue Teardown Register (TX_QUEUE_TEAR_DOWN)
- 5.54 Transmit CPPI Supported Flow Mask Registers n (TX_CPPI_FLOW_MASKSn)
- 5.55 Receive Queue Teardown Register (RX_QUEUE_TEAR_DOWN)
- 5.56 Receive CPPI Control Register (RX_CPPI_CNTL)
- 5.57 Transmit CPPI Weighted Round Robin Control Register 0 (TX_QUEUE_CNTL0)
- 5.58 Transmit CPPI Weighted Round Robin Control Register 1 (TX_QUEUE_CNTL1)
- 5.59 Transmit CPPI Weighted Round Robin Control Register 2 (TX_QUEUE_CNTL2)
- 5.60 Transmit CPPI Weighted Round Robin Control Register 3 (TX_QUEUE_CNTL3)
- 5.61 Mailbox-to-Queue Mapping Register Ln (RXU_MAP_Ln)
- 5.62 Mailbox-to-Queue Mapping Register Hn (RXU_MAP_Hn)
- 5.63 Flow Control Table Entry Registers (FLOW_CNTLn)
- 5.64 Device Identity CAR (DEV_ID)
- 5.65 Device Information CAR (DEV_INFO)
- 5.66 Assembly Identity CAR (ASBLY_ID)
- 5.67 Assembly Information CAR (ASBLY_INFO)
- 5.68 Processing Element Features CAR (PE_FEAT)
- 5.69 Source Operations CAR (SRC_OP)
- 5.70 Destination Operations CAR (DEST_OP)
- 5.71 Processing Element Logical Layer Control CSR (PE_LL_CTL)
- 5.72 Local Configuration Space Base Address 0 CSR (LCL_CFG_HBAR)
- 5.73 Local Configuration Space Base Address 1 CSR (LCL_CFG_BAR)
- 5.74 Base Device ID CSR (BASE_ID)
- 5.75 Host Base Device ID Lock CSR (HOST_BASE_ID_LOCK)
- 5.76 Component Tag CSR (COMP_TAG)
- 5.77 1x/4x LP_Serial Port Maintenance Block Header Register (SP_MB_HEAD)
- 5.78 Port Link Time-Out Control CSR (SP_LT_CTL)
- 5.79 Port Response Time-Out Control CSR (SP_RT_CTL)
- 5.80 Port General Control CSR (SP_GEN_CTL)
- 5.81 Port Link Maintenance Request CSR n (SPn_LM_REQ)
- 5.82 Port Link Maintenance Response CSR n (SPn_LM_RESP)
- 5.83 Port Local AckID Status CSR n (SPn_ACKID_STAT)
- 5.84 Port Error and Status CSR n (SPn_ERR_STAT)
- 5.85 Port Control CSR n (SPn_CTL)
- 5.86 Error Reporting Block Header (ERR_RPT_BH)
- 5.87 Logical/Transport Layer Error Detect CSR (ERR_DET)
- 5.88 Logical/Transport Layer Error Enable CSR (ERR_EN)
- 5.89 Logical/Transport Layer High Address Capture CSR (H_ADDR_CAPT)
- 5.90 Logical/Transport Layer Address Capture CSR (ADDR_CAPT)
- 5.91 Logical/Transport Layer Device ID Capture CSR (ID_CAPT)
- 5.92 Logical/Transport Layer Control Capture CSR (CTRL_CAPT)
- 5.93 Port-Write Target Device ID CSR (PW_TGT_ID)
- 5.94 Port Error Detect CSR n (SPn_ERR_DET)
- 5.95 Port Error Rate Enable CSR n (SPn_RATE_EN)
- 5.96 Port n Attributes Error Capture CSR 0 (SPn_ERR_ATTR_CAPT_DBG0)
- 5.97 Port n Packet/Control Symbol Error Capture CSR 1 (SPn_ERR_CAPT_DBG1)
- 5.98 Port n Packet/Control Symbol Error Capture CSR 2 (SPn_ERR_CAPT_DBG2)
- 5.99 Port n Packet/Control Symbol Error Capture CSR 3 (SPn_ERR_CAPT_DBG3)
- 5.100 Port n Packet/Control Symbol Error Capture CSR 4 (SPn_ERR_CAPT_DBG4)
- 5.101 Port Error Rate CSR n (SPn_ERR_RATE)
- 5.102 Port Error Rate Threshold CSR n (SPn_ERR_THRESH)
- 5.103 Port IP Discovery Timer in 4x mode (SP_IP_DISCOVERY_TIMER)
- 5.104 Port IP Mode CSR (SP_IP_MODE)
- 5.105 Serial Port IP Prescalar (IP_PRESCAL)
- 5.106 Port-Write-In Capture CSR n (SP_IP_PW_IN_CAPTn)
- 5.107 Port Reset Option CSR n (SPn_RST_OPT)
- 5.108 Port Control Independent Register n (SPn_CTL_INDEP)
- 5.109 Port Silence Timer n (SPn_SILENCE_TIMER)
- 5.110 Port Multicast-Event Control Symbol Request Register n (SPn_MULT_EVNT_CS)
- 5.111 Port Control Symbol Transmit n (SPn_CS_TX)
www.ti.com
Globally
shared
memory spec
logical
Future
Message
passingsystem
I/O
Logical specification
Information necessary for the end point
to process the transaction (i.e., transaction
type, size, physical address)
to end in the system (i.e., routing address)
Information to transport packet from end
Transport specification
spec
transport
Common
between two physical devices (i.e., electrical
Information necessary to move packet
interface, flow control)
Physical specification
1x/4x
LP serialLP-LVDS
8/16
Future
spec
physical
checklist
Compliance
Inter-
operability
specification
Overview

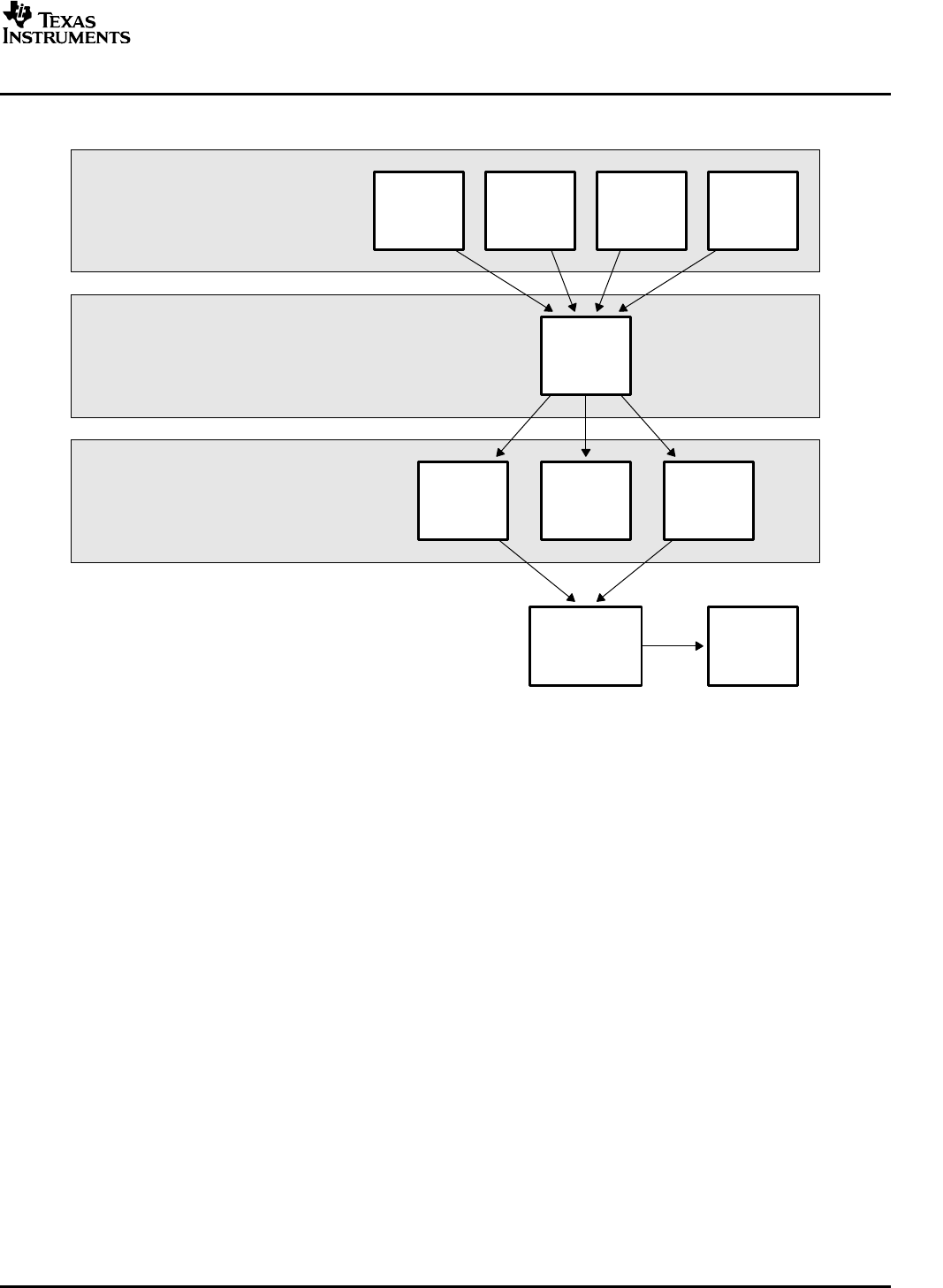

Figure 1. RapidIO Architectural Hierarchy
SPRU976 – March 2006 Serial RapidIO (SRIO) 15
Submit Documentation Feedback
