www.ti.com
double-word n-1
acklD rsv
prio
tt ftype
destID
sourcelD
address
rsrv
xamsbs double-word 0
double-word 1
...
double-word n-2
CRC
PHY
LOG
TRA
LOG
TRA
PHY
5
3
2
2
4
8
8
29
1
2
64 64
(n-4)*64
64
64
16
16
n*64+32
16
4
2
10
LOG
PHY
10
TRA
2 4
9 * 6 4 + 32
LOG
TRA
16
PHY
16
double-word 0
5
acklD sourcelDrsv
3
prio
2
ftype
tt
2 4
destiD
8
1
rsrv
address
8 29
xamsbs
2
64
double-word 8
double-word 1
64
5*64
...
64
double-word 9
64
CRC
16
LOG
(n-9)*64
16
PHY
double-word 10
64
double-word n-2double-word 11
64
(n-13)*64
...
double-word n-1
6464
16
CRC
n*64+96
n*64+80
PHY = Physical layer
TRA = Transport layer
LOG = Logical layer
SC or PD parameter1stype0 stype1Parameter0 cmd CRC
533553
Delimiter 1st Byte 2nd Byte 3rd Byte
8
SRIO Functional Description

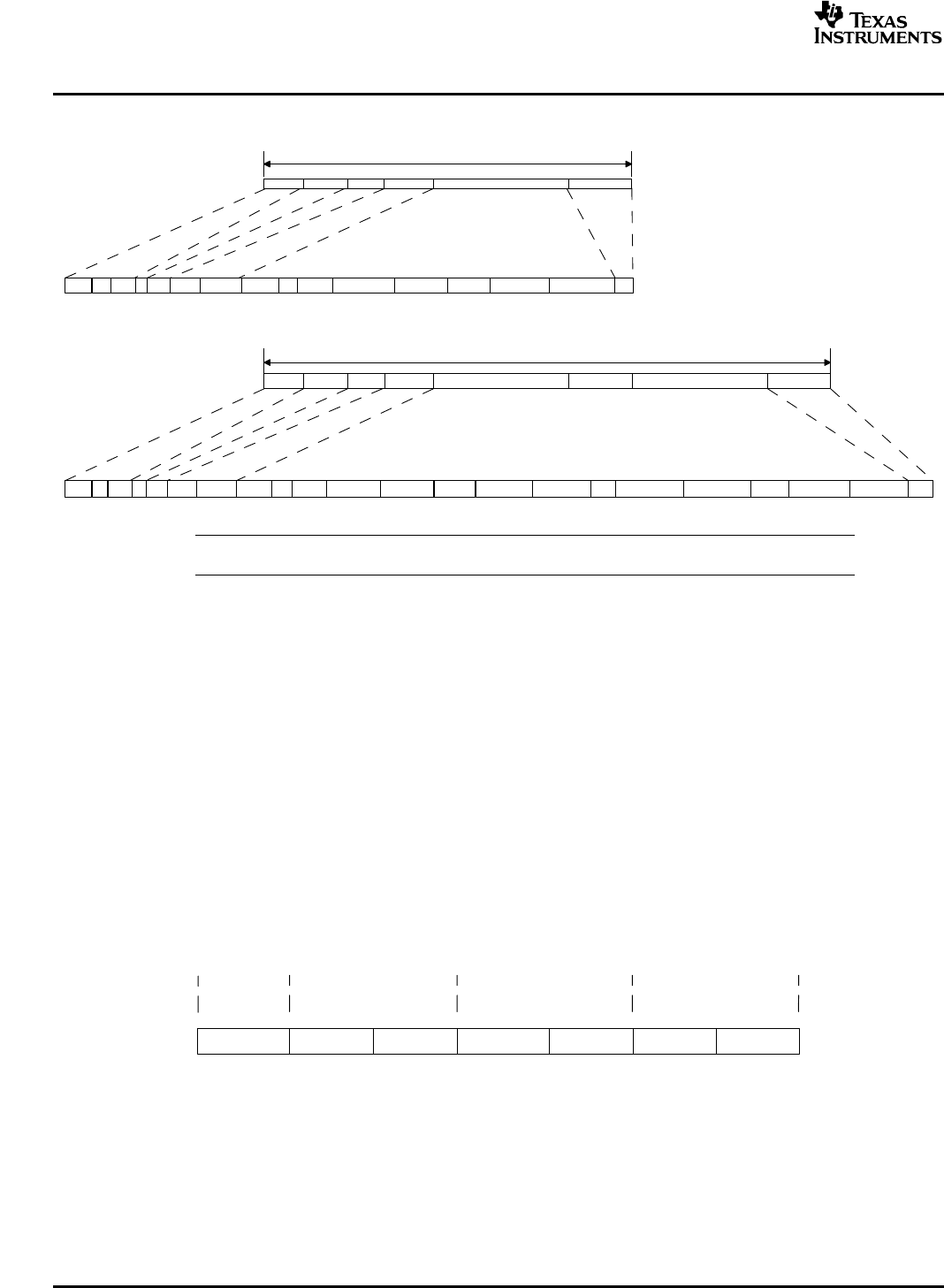

Figure 6. 1x/4x RapidIO Packet Data Stream (Streaming-Write Class)
Note: Figure 6 assumes that addresses are 32-bit and device IDs are 8-bit.
The device ID, being an 8-bit field, will address up to 256 nodes in the system. If 16-bit addresses were
used, the system could accommodate up to 64k nodes.
The data stream includes a Cyclic Redundancy Code (CRC) field to ensure the data was correctly
received. The CRC value protects the entire packet except the ackID and one bit of the reserved PHY
field. The peripheral checks the CRC automatically in hardware. If the CRC is correct, a Packet-Accepted
control symbol is sent by the receiving device. If the CRC is incorrect, a Packet-Not-Accepted control
symbol is sent so that transmission may be retried.
2.1.2.3 Control Symbols
Control symbols are physical layer message elements used to manage link maintenance, packet
delimiting, packet acknowledgment, error reporting, and error recovery. All transmitted data packets are
delimited by start-of-packet and end-of-packet delimiters. SRIO control symbols are 24 bits long and are
protected by their own CRC. Control symbols provide two functions: stype0 symbols convey the status of
the port transmitting the symbol, and stype1 symbols are requests to the receiving port or transmission
delimiters. They have the following format, which is detailed in section 3 of the RapidIO LP-Serial
specification.
Figure 7. Serial RapidIO Control Symbol Format
Control symbols are delimited by special characters at the beginning of the symbol. If the control symbol
contains a packet delimiter(start-of-packet, end-of-packet, etc.), the special character PD (K28.3) is used.
If the control symbol does not contain a packet delimiter, the special character SC (K28.0) is used. This
use of special characters provides an early warning of the contents of the control symbol. The CRC does
not protect the special characters, but an illegal or invalid character is recognized and flagged as
Packet-Not-Accepted. Since control symbols are known length, they do not need end delimiters.
