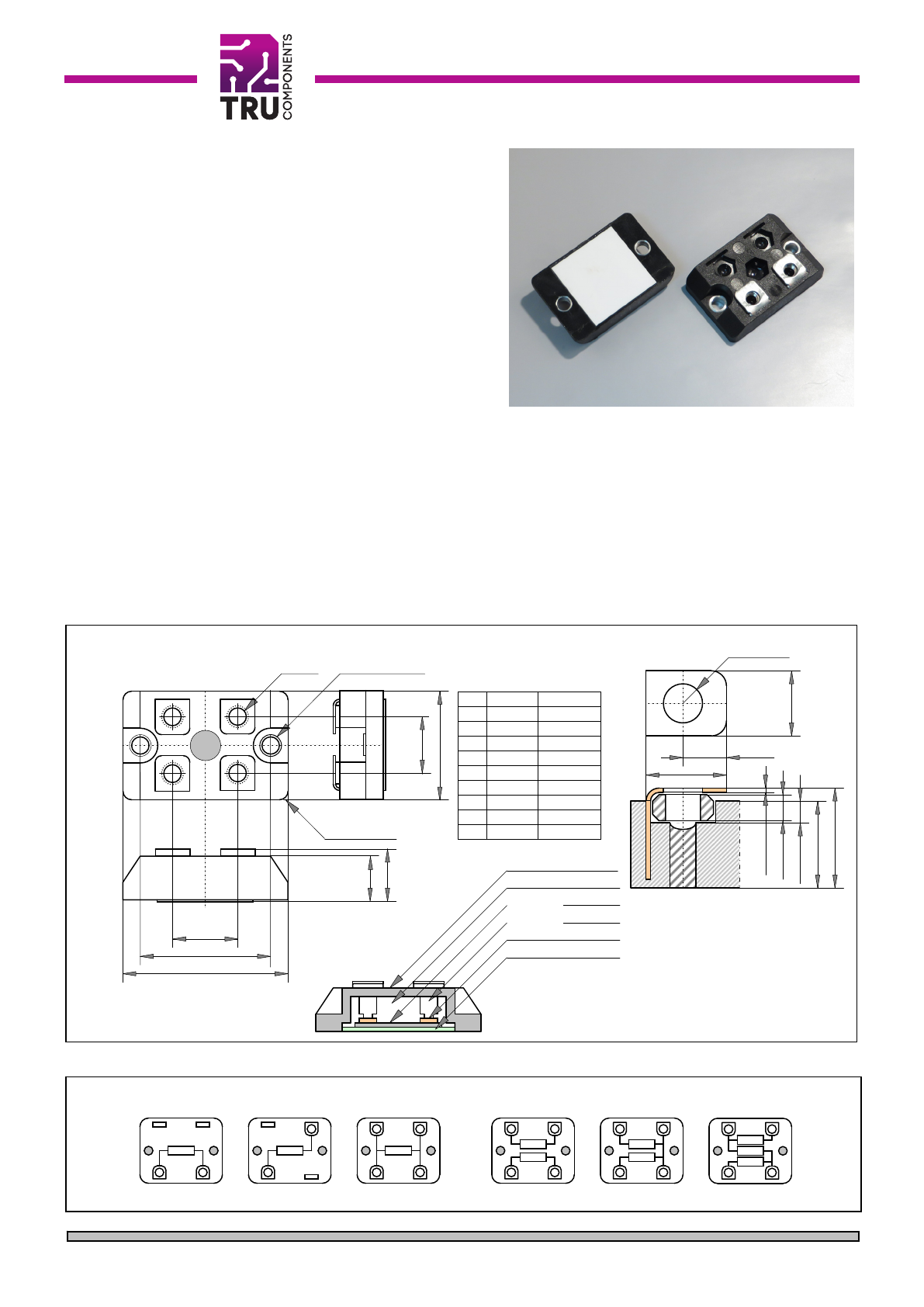

Data Sheet

POWER - NIKKOHM
200W
CHASSIS MOUNTING NON-INDUCTIVE
HIGH POWER RESISTORS
TCP
150, TCP200
Note: The depth of the screw hole is about 4.3mm from the surface of the terminal plate.
Dimensions
Features and Applications
Small size SOT227, light weight, 200W high power resistor install on air-cooled heat sink or water-cooling
is necessary.
Completely resin filled structure provides high insulation voltage between heat-sink / resistor and partial
discharge performance, long-life stable operation.
2.5kV insulation voltage is standard and 4.0kV insulation is available in option.
Various 6 types of circuit configuration gives ease customer’s applications.
Very low series inductance and parallel capacitance make wide frequency range operation.
Applications include snubber resistors, filter resistors, bleeder resistor, current detect for automotive
electronics and many types of power electronics as UPS, power supply, professional audio.
RoHS
mm +/- mm
A 38.0 +/-0.2
B 25.0 +/-0.2
C 11.8 +/-0.5
D 4.2 +/-0.1
E 13.0 +/-0.3
F 15.0 +/-0.4
G 30.0 +/-0.1
H 10.0 +/-0.2
J M4
4-J 4-D
4-4R
A
G
F
4
1
3
2
H
B E
C
Schematics
TCP200X TCP200Y TCP200Z TCP150X TCP150Y TCP150Z
4 3
1 2
R2
R1
4 3
1 2
R2
R1
4 3
1 2
R3
R2
R1
4 3
1 2
R1
4 3
1 2
R1
4 3
1 2
R1
Case
Fillin
g
Resisto
r
Terminals
Conducto
r
ALO substrate
