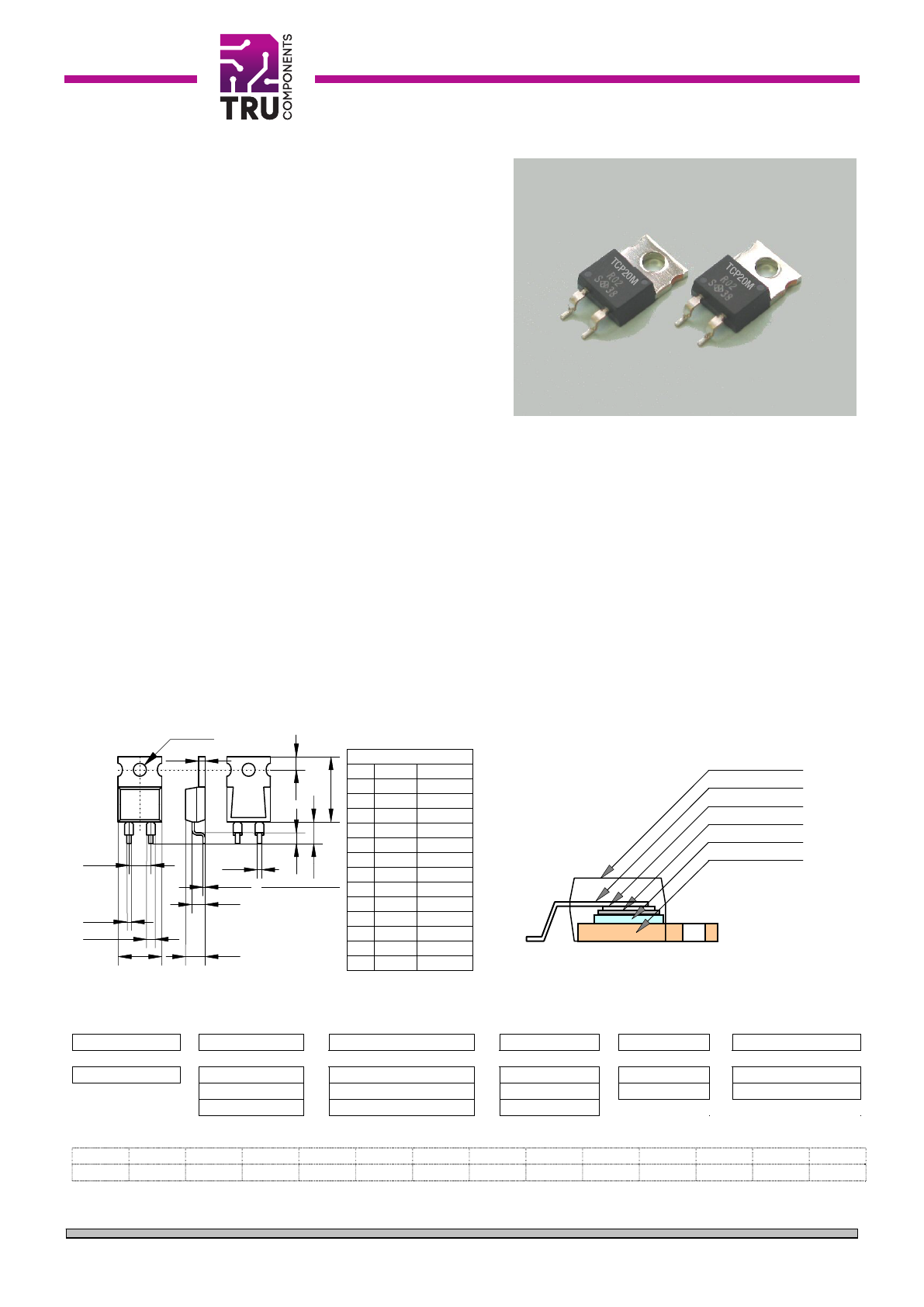

TO220 35W HIGH POWER RESISTORS

TCP20M

Dimensional Specifications (mm) Structure and Materials

Ordering Information

TCP20M -

C 10R0 (*) F

Note

| | | | | |

TCP20M -

H(250ppm) > R02-R09 (+E6) > J(5%)

Tape/500pcs

A(100ppm) > R10-510K(+E24) > F(1%), J(5%)

Tube/50pcs

C(50ppm) > 10R-51K (+E24) > F(1%)

Resistance value (*) is available following modified E24, +E24.

1.0 1.1 1.2 1.3 1.5 1.6 1.8 2.0 2.2 2.4 2.5 2.7 3.0 3.3

3.6 3.9 4.0 4.3 4.7 5.0 5.1 5.6 6.2 6.8 7.5 8.0 8.2 9.1

Note*: When ordering, additional ohm resistance notation is recommended for keeping out of misunderstanding.

Features and Applications

35W high power resistors in TO220 style mold package for surface mount.

Non-inductive design suits high frequency applications and high-speed pulse circuits.

Low, 3.3 °C/W heat resistance from resistor hot spot to flange and long life performance are presented

with thin film metallization technology and rejection of plastic adhesive joint.

Wide 20 milliohm to 51kOhm resistance range, non-inductive impedance characteristic and heat

conduction through the insulated metal flange aid circuit designers.

Small size and thin profile suit high-density compact installations.

Complete thermal conduction, heat dissipation design and vibration durable design also available.

Applications include snubber, gate control, bleeder, filter, rush current protection, braking resistors of

automotive, rail traction, wind turbine, PV, UPS and motor control inverters.

TCP20M

mm +/-mm

A 10.1 +/-0.2

B 15.0 +/-0.2

C 4.5 +/-0.2

D 3.6 +/-0.1

E 5.0 +/-1.0

F 2.5 +/-0.5

G 3.0 +/-0.2

H 2.75 +/-0.2

J 0.5 +/-0.05

K 0.75 +/-0.05

L 1.5 +/-0.05

M 5.08 +/-0.10

C A

Leads, Tin

lated C

Moldin

, e

, UL94

Conductor, Co

Resistor, Ni

Cr or RuO

Substrate, Alumina

Flan

e, Ni

lated C

Between flange and resistor is insulated.

Nikkohm Co., Ltd. 3-31-2640 Minamicho, Misawa, Aomori 033-0036 Japan TEL: +81-176-53-2105, FAX: +81-176-53-2106

Conrad Electronic SE - Klaus-Conrad-Str.1 - 92250 Hirschau - www.conrad.de

Summary of content (3 pages)

PAGE 1
TO220 35W HIGH POWER RESISTORS TCP20M Features and Applications 35W high power resistors in TO220 style mold package for surface mount. Non-inductive design suits high frequency applications and high-speed pulse circuits. Low, 3.3 °C/W heat resistance from resistor hot spot to flange and long life performance are presented with thin film metallization technology and rejection of plastic adhesive joint.
PAGE 2
RoHS POWER - NIKKOHM TCP20M 35W HIGH POWER RESISTORS Specifications Type Rating Power Rating Power Heat Resistance Resistance Range Nominal Resistance TCR(ppm/°C) Tolerance Capacitance Inductance Operation Temp. Max. Operating Volt. Withstanding Volt. Load Life Humidity Temp. Cycle Soldering Heat Solder ability Insulation Resistance Vibration Weight 0.01-0.091 Ohm 0.1-510 k Ohm 10-51k Ohm E6 E24+ E24 250(H)* 100 (A) 50 (C) 5%(J) 1% (F), 5% (J) +/-1% (F) Thick Film Thin Film 1.44pF 8.
PAGE 3
RoHS POWER - NIKKOHM SMD 35W HIGH POWER RESISTORS TCP20M 16.00 5.00 4.00 16.00 Applications, TCP20M 5.08 2.54 2.54 14.00 Heat conduction metal back-plate. with Heat conduction with via hole to back conductor. Heat conduction with surface conductor. W. S0. B0 Tape Reel, TCP20M (500pcs/reel) A0 B0 K0 P1 S0 W 10.56+/-0.1 20.72+/-0.1 6.10+/-0.1 16.00+/-0.1 28.40+/-0.1 32.00+/-0.3 2.0d min. K0 4.0+/-0.1 P1 A0 1.5d+0.1-0.0 330mm Nikkohm Co., Ltd.
