INSTRUCTIONS Class 2 Power Unit

Model EN-2460D-C

CAUTION – TO REDUCE RISK OF FIRE AND ELECTRICAL SHOCK

• Always turn off power at main switch prior to installation.

• Intended for installation by a qualified electrician.

• System is intended for installation in accordance with National Electric Code, and local

regulations. Consult with local inspector to assure compliance.

MAX LOAD

60W

INPUT VOLTAGE

120-240V 60Hz

INPUT CURRENT

1.2A

OUTPUT CURRENT

2.5A

OUTPUT VOLTAGE

24V DC

CASE TEMP

40 ºC to 55 ºC

AMBIENT TEMP

-4 to 122 ºF (-30ºC to 70ºC)

MINIMUM LOAD

1.5W

FEATURES:

• Power Supply short circuit protection with auto-reset.

• Overload protection with auto-reset.

• Automatic thermal regulation.

• Soft start delay to preserve bulb life, for use with controller

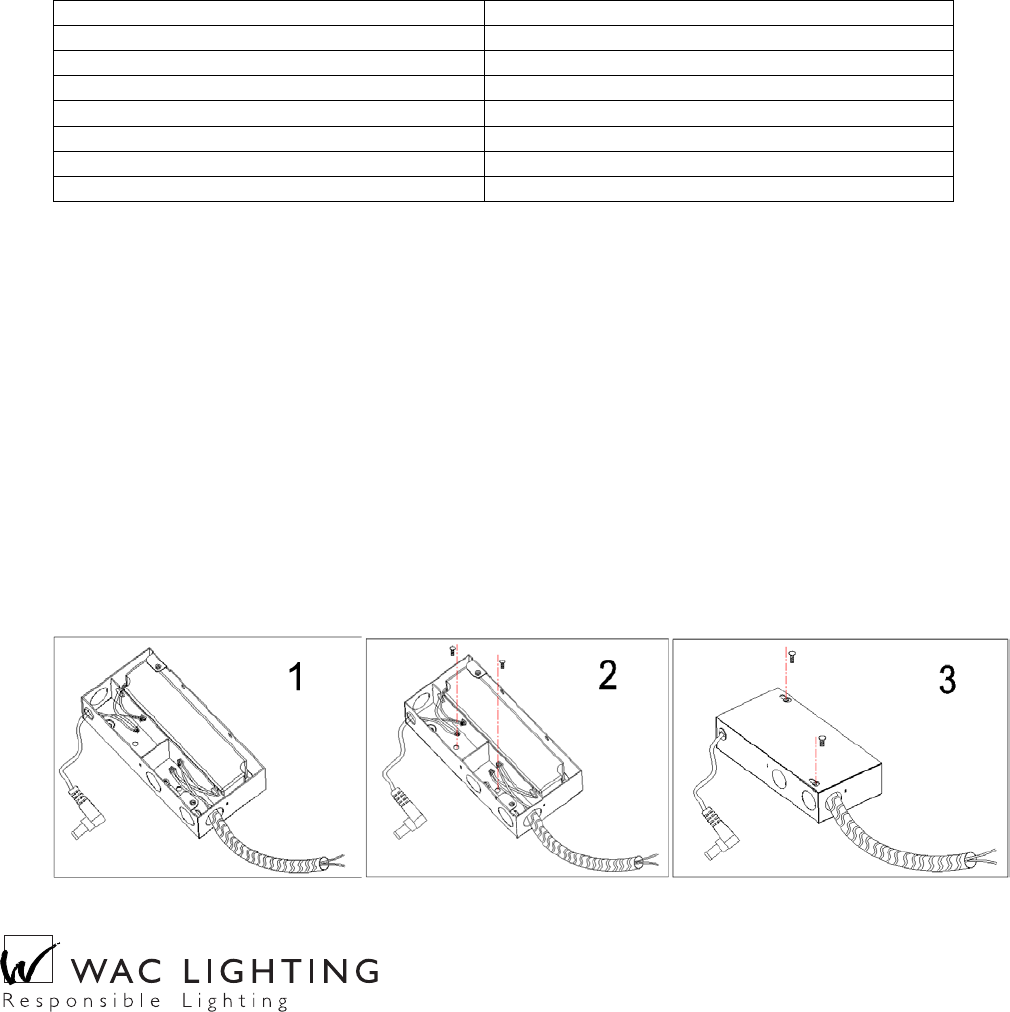

INSTALLATION

• DC power supply must be installed away from heat sources and accessible for service

• Enclosed DC power supply is UL listed. The power supply box has a separate line volt,

and low volt wiring compartments. Trade size knock out are provided on both

compartments. Connect building wires to like color DC power supply wires with wire

nuts. Building ground wire may be green or un-insulted, and attaches to green wire

from DC power supply box.

Retain these instructions for future service and adjustments

615 South Street, Garden City, NY 11530

Tel: (516) 515-5000 Fax (516) 515-5050

www.waclighting.com
