Waves API 560 User Manual Waves API 560 User Manual
TABLE OF CONTENTS CHAPTER 1 – INTRODUCTION................................................................................................................................3 1.1 WELCOME...........................................................................................................................................................3 1.2 PRODUCT OVERVIEW ..........................................................................................................................................4 1.
Chapter 1 – Introduction 1.1 Welcome Thank you for choosing Waves! In order to get the most out of your Waves processor, please take the time to read through this manual. In conjunction, we also suggest that you become familiar with www.wavesupport.net. There you will find an extensive Answer Base, the latest Tech Specs, detailed Installation guides, new Software Updates, and current information on Authorization and Registration. By signing up at www.wavesupport.
1.2 Product Overview Modeled on the API classic from 1967, the API 560 is a 10-Band equalizer which is divided into intuitive one-octave increments. It features precision filtering and high headroom, ideal for signal enhancement and room tuning. The 560’s curve shaping potential is unmatched, while API's unique "Proportional Q" design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings.
1.3 Components WaveShell technology enables us to split Waves processors into smaller plug-ins, which we call components. Having a choice of components for a particular processor gives you the flexibility to choose the configuration best suited to your material.
Chapter 2 – Quickstart Guide Approach the Waves API 560 as you would any conventional graphic EQ. Since the API 560 features “Proportional Q,” which intuitively widens the filter bandwidth at lower settings and narrows it at higher settings, feel free to push the API 560 harder than you normally would other equalizers. The API 560 will deliver smooth, natural, and musical sound even at extreme settings.

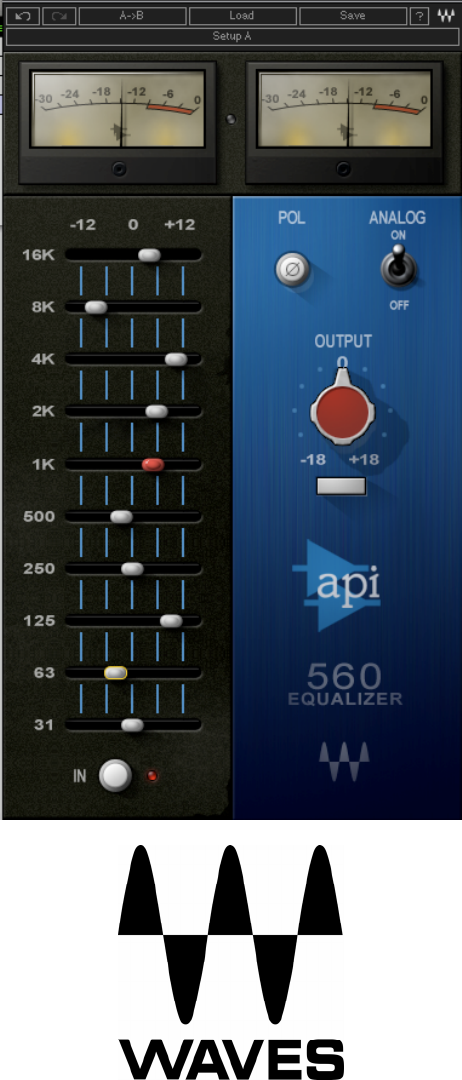

Chapter 3 – Controls and Interface Waves API 560 User Manual -7-
3.1 EQ section Cutoff Points 31Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz Range +/-12dB per band In/Out Switches EQ on and off while retaining Analog modeling.
3.2 Output Section Pol (Polarity) Shifts the phase by 180 degrees. Range 0deg-180deg Default 0deg Analog Turns the Analog modeling on and off.
Output Controls the output level. Range -18dB to +18dB (in 0.1dB steps) Default 0dB Trim Displays the maximum peak level of the output signal and its distance from nominal gain (-0.1dBfs). Range -inf to 0dB Default -inf Meters The API 560’s meters display output level in dBFS. The Clip LED, located between the two meters, lights up when output signal exceeds 0dBFS.
Chapter 4 – The WaveSystem 4.1 The WaveSystem Toolbar All Waves processors feature the WaveSystem toolbar which takes care of most administrative functions you will encounter while working with your Waves software. The features of the WaveSystem toolbar are the same on practically all Waves processors, so familiarity with its features will be helpful whichever processor you are using. Toolbar Functions Undo Redo Setup A/B Copy A->B Load Save ? Undoes the last 32 performed actions.
all the settings you create into a single Setup File, they can all be quickly available for every instance of that plug-in. Loading Presets and Setups Click-and-hold on the Load button to see the Load pop-up menu. The menu is divided into four sections. If a section is not currently available it will not appear in the Load pop-up menu. Open Preset File… Select to open any setup or preset file, whether from the Library or your own creations. ‘Filename.
Deleting Presets You may delete User Presets and presets within a Setup File. Factory Presets and Setup Library files cannot be deleted or overwritten. 1. Hold the Command (Mac)/Control (PC) key down. 2. Click-and-hold the Load button to see the pop-up menu. 3. While still holding the Command/Control key, select the preset or setup to delete. 4. A confirmation box will appear, allowing you to cancel or ‘OK’ the deletion.
Value Window Buttons Value windows display the value of a control and allow click-and-drag adjustment, or direct control via the keyboard. • • • Using the mouse, click-and-drag on the value window to adjust. Some value windows support left/right, some up/down (as you hover over a button, arrows will appear to let you know which direction of movement that button supports).
TAB Functions TAB moves the ‘selected’ status to the next control, with shift-TAB moving in the reverse direction. Additionally, the Mac has an option-TAB function for ‘down’ movement and shift-option-TAB for ‘up’ movement where applicable. If you have several Value Window Buttons selected, TAB functions will take you through the selected controls only.
Appendix A – Controls List 31 Hz 63 Hz 125 Hz 250 Hz 500 Hz 1 KHz 2 KHz 4 KHz 8 KHz 16 KHz Output Trim Analog Control Range -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -12dB to 12dB -18dB to 18dB -inf to 0dB On/Off Default 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB 0dB -inf On Phase 0deg - 180deg 0deg Waves API 560 User Manual - 16 -
