Recirculating Kit Manual

ZRC-9000 Recirculating Kit Instructions

For Use With AK9028AS and AK9034AS

1. Remove baffle filter from insert and position

it back-side up so the mesh is visible.

3. Place filter brackets over charcoal filter and

secure in place by tucking each end of

the bracket under the baffle filter frame.

Re-install baffle filter into insert.

NOTE: Take care when installing the filter brackets as they may have sharp edges

2. Place charcoal filter on back-side of baffle

filter so it fully covers the mesh.

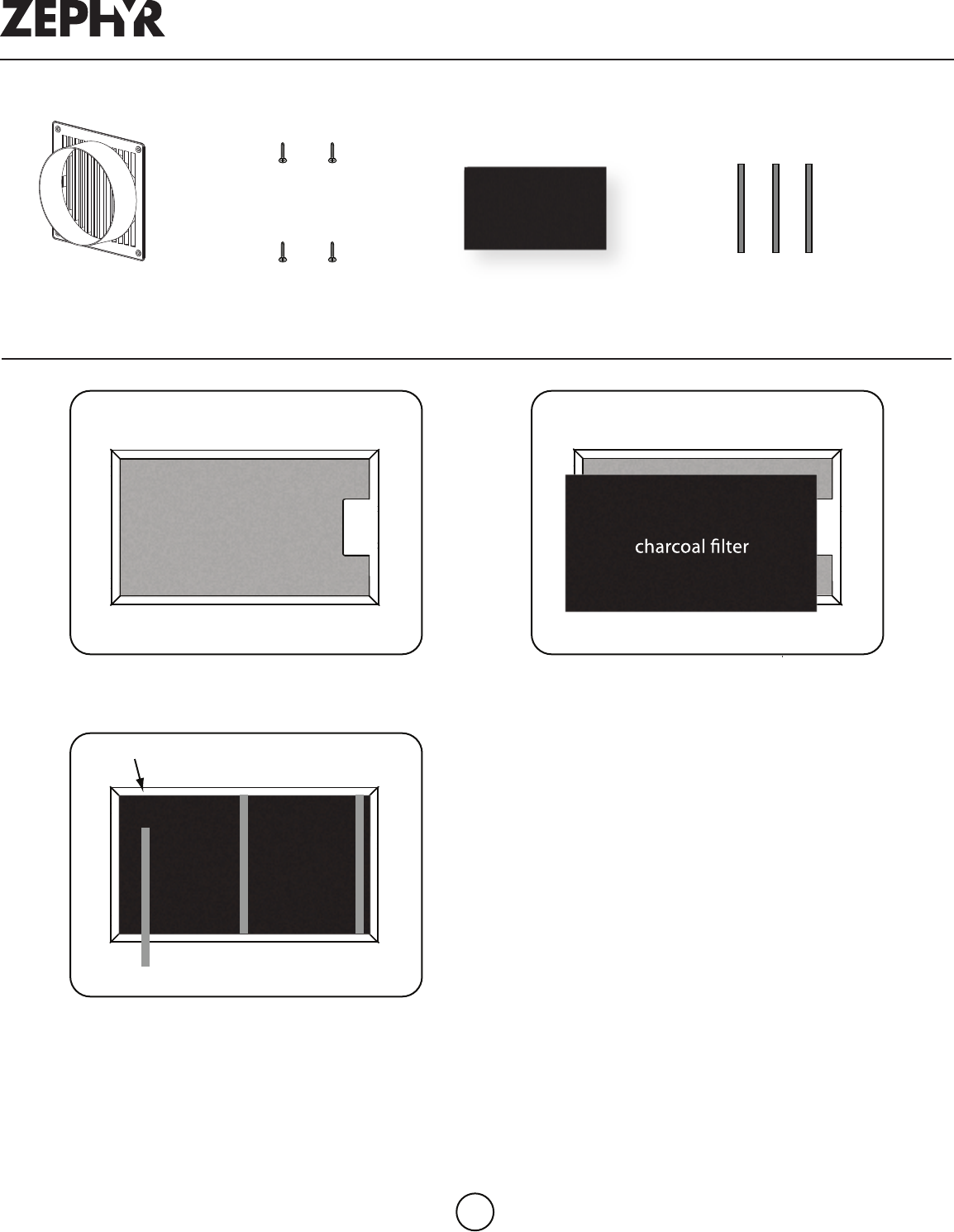

THIS KIT INCLUDES:

(1) return air vent (1) charcoal filter (3) charcoal filter

brackets.

(4) return air

vent screws

Turn to next page for instructions

on installing return air vent.

WARNING: Charcoal filter is not

meant to be washed and must be

replaced after 3 - 4 months of use.

Replacement Part: Z0F-C090

JAN12.0101 www.zephyronline.com | 1.888.880.8368

fra me

mesh

PAGE 1
ZRC-9000 Recirculating Kit Instructions For Use With AK9028AS and AK9034AS THIS KIT INCLUDES: (1) return air vent (4) return air vent screws (1) charcoal filter (3) charcoal filter brackets. mesh 2. Place charcoal filter on back-side of baffle filter so it fully covers the mesh. 1. Remove baffle filter from insert and position it back-side up so the mesh is visible. WARNING: Charcoal filter is not meant to be washed and must be replaced after 3 - 4 months of use.
PAGE 2
ZRC-9000 Recirculating Kit Instructions For Use With AK9028AS and AK9034AS OPTION 1: Install return air vent to top of the cabinet: screw (1 in each corner of return air vent) (for installations where cabinet does not extend to the ceiling) 1. Cut a 6-1/2” round opening in top of the cabinet where the ducting will connect to the return air vent. FIG.1 2. Connect 6” round ducting from AK9028AS/AK9034AS to return air vent collar. Return air vent collar will go around the ducting. Secure with duct tape.
