User Guide

© 3M 1999 3M
™
Multimedia Projector MP8635
TECHNICAL
A.5
c) Example of computer signal

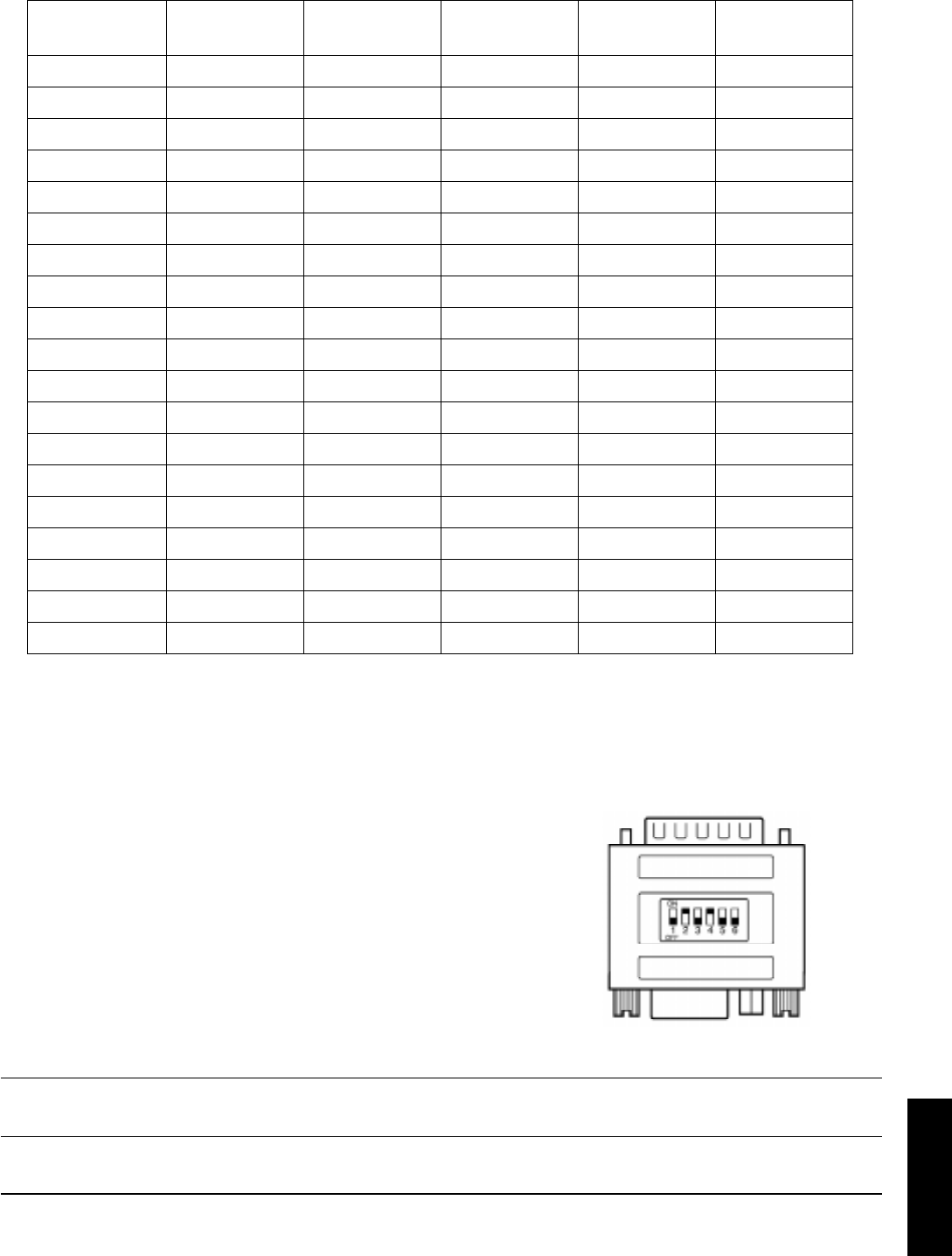

* MAC adapter is necessary to set the resolution mode.
Projector is compatible with 13 inch mode and 16 inch mode.
Set all dip switches OFF except those indicated below:
MAC 13" mode = switch 1 and 2 are ON
MAC 16" mode = switch 2 and 4 are ON
(Example of 16 inch mode)
Resolution HxV Refresh Rate Horizontal Standard Type Note Display
Frequency Dots HxV
640 x 400 56.4 Hz 24.8 kHz NEC PC9800 800 x 560
640 x 350 85.1 Hz 37.9 kHz VGA-1 800 x 490
640 x 400 85.1 Hz 37.9 kHz VESA VGA-2 800 x 560
720 x 400 37.9 85.0 kHz VESA TEXT 800 x 560
640 x 480 59.9 Hz 31.5 kHz VESA VGA-3 800 x 600
640 x 480 66.7 Hz 35.0 kHz *MAC 13 in. 800 x 600
640 x 480 72.8 Hz 37.9 kHz VESA 800 x 600
640 x 480 75.0 Hz 37.5 kHz VESA 800 x 600
640 x 480 85.0 Hz 43.3 kHz VESA 800 x 600
800 x 600 56.3 Hz 35.2 kHz VESA 800 x 600
800 x 600 60.3 Hz 37.9 kHz VESA 800 x 600
800 x 600 72.2 Hz 48.1 kHz VESA 800 x 600
800 x 600 75.0 Hz 46.9 kHz VESA 800 x 600
800 x 600 85.1 Hz 53.7 kHz VESA 800 x 600
832 x 624 74.5 Hz 49.7 kHz *MAC 16 in. 800 x 600
1024 x 768 60.0 Hz 48.4 kHz VESA Compressed 768 x 576
1024 x 768 70.1 Hz 56.5 kHz VESA Compressed 768 x 576
1024 x 768 75.0 Hz 60.0 kHz VESA Compressed 768 x 576
1024 x 768 85.0 Hz 68.7 kHz VESA Compressed 768 X 576
✔ Note
Some input sources may not be displayed properly because they are not compatible with the projector.
