Turn-Key Chassis Solutions (EmBOX)
Features
Specifications
■■
Fanless Design
■■
2.5” Hard Disk Drive And CompactFlash™
■■
802.11b/g WiFi (Optional)
■■
COM x 5, USB x 4, 8-bit Digital I/O (Optional)
■■
Built-in AC-in Or DC-in Power Supply
■■
Desktop Or Wallmount (Optional)
CPU AMD Geode™ LX800 processor
Chipset AMD Geode™ LX + AMD CS5536
System Memory
200-pin DDR 333/400MHz SODIMM x 1, up to 1 GB for DDR333 and 512 MB
for DDR400
Display
Interface
VGA D-SUB 15 x 1
DVI —
Others —
Storage
Device
SSD Type 2 CompactFlash™ Slot x 1
HDD 2.5" Hard Disk Drive Bayx1
Network
LAN 10/100 Base-TX Ethernet
Wireless 802.11b/g WiFi (Optional)
Front I/O
USB Host —
LAN —
Serial Port 9-pin D-Sub x 3
DIO 8-bit Programmable x 1 (Optional)
Audio —
KB/MS —
Others —
Rear I/O
USB Host USB Type A x 4
LAN RJ-45 x 2
Serial Port 9-pin D-Sub x 2
DIO —
Audio Line-out, Mic-in
KB/MS PS/2 x 1
Others —
Expansion
PCIe —
PCI —
Mini Card —
Mini PCI Mini-PCI x 1 (Internal)
Others —
Indicator
Front Power LED x 1, HDD LED x 1
Rear —
Power Requirement
For DC Type: +9V ~ +30V Input
For AC Type: 100V ~ 240V Input
Power Consumption —
System Cooling Fanless
Mounting Desktop or Wallmount (optional)
Operating temperature 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Anti-Vibration
0.5g rms/ 5 ~ 500Hz/ random operation (Internal Hard Disk Drive active
Module)
Anti-Shock 10G peak acceleration (11 msec. duration) (Hard Disk Drive Module)
MTBF (Hours) 60,000
Certification
EMC CE/FCC Class A
Safety —
Dimension (W x H x D) 10" x 5.75" x 2” (254mm x 146mm x 49mm)
Gross Weight Heavy duty steel (1.7 kg/ 3.74 lb)

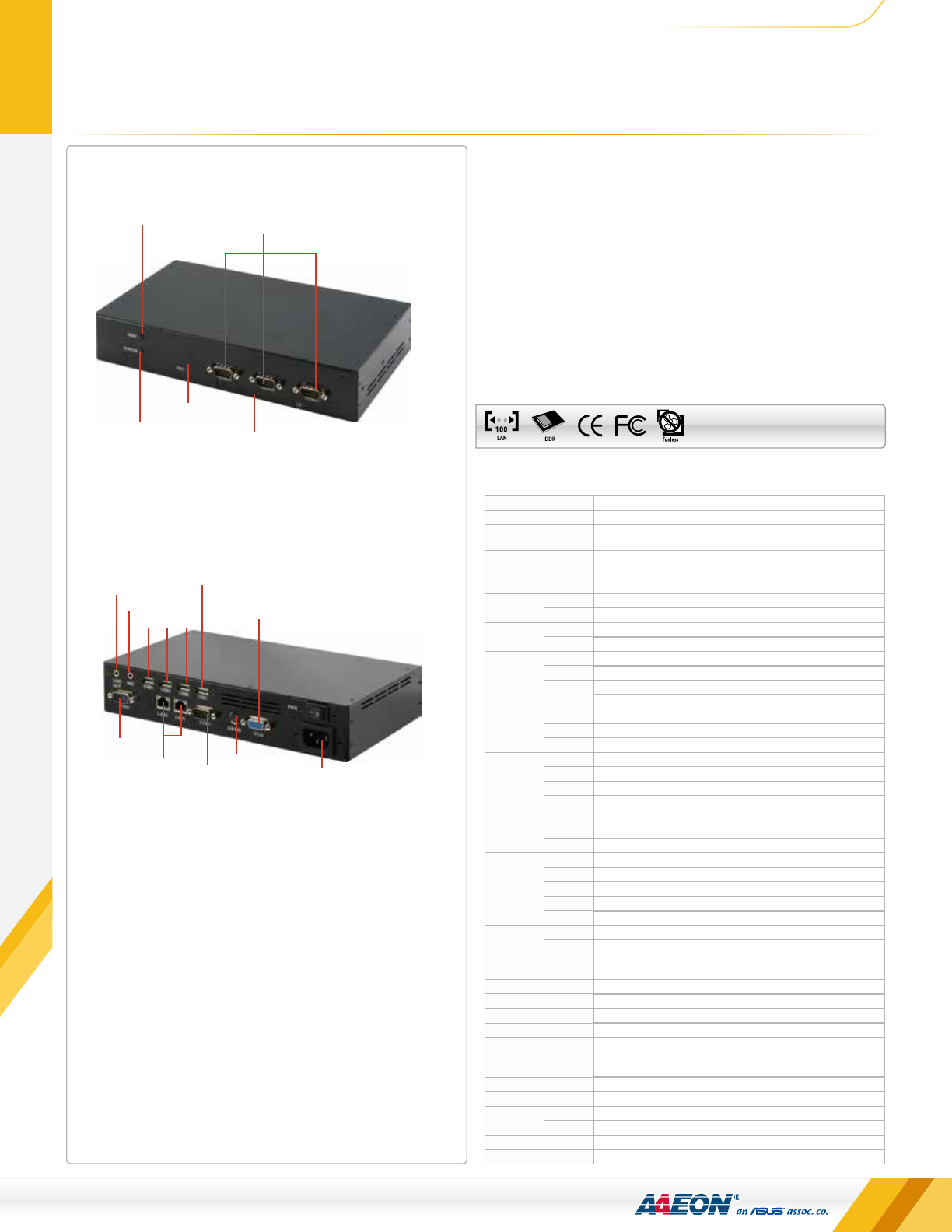

Front View
Rear View
Fanless Embedded Box for GENE-5315 Rev.B
TKS-G30-5315B
Line-out
COM
Keyboard + Mouse
Mic-in
USB x 4
VGA
Power Switch
Power Input
COM
LAN x 2
Hard Disk Drive LED
COM x 3
Power LED
CompactFlash™
DIO
