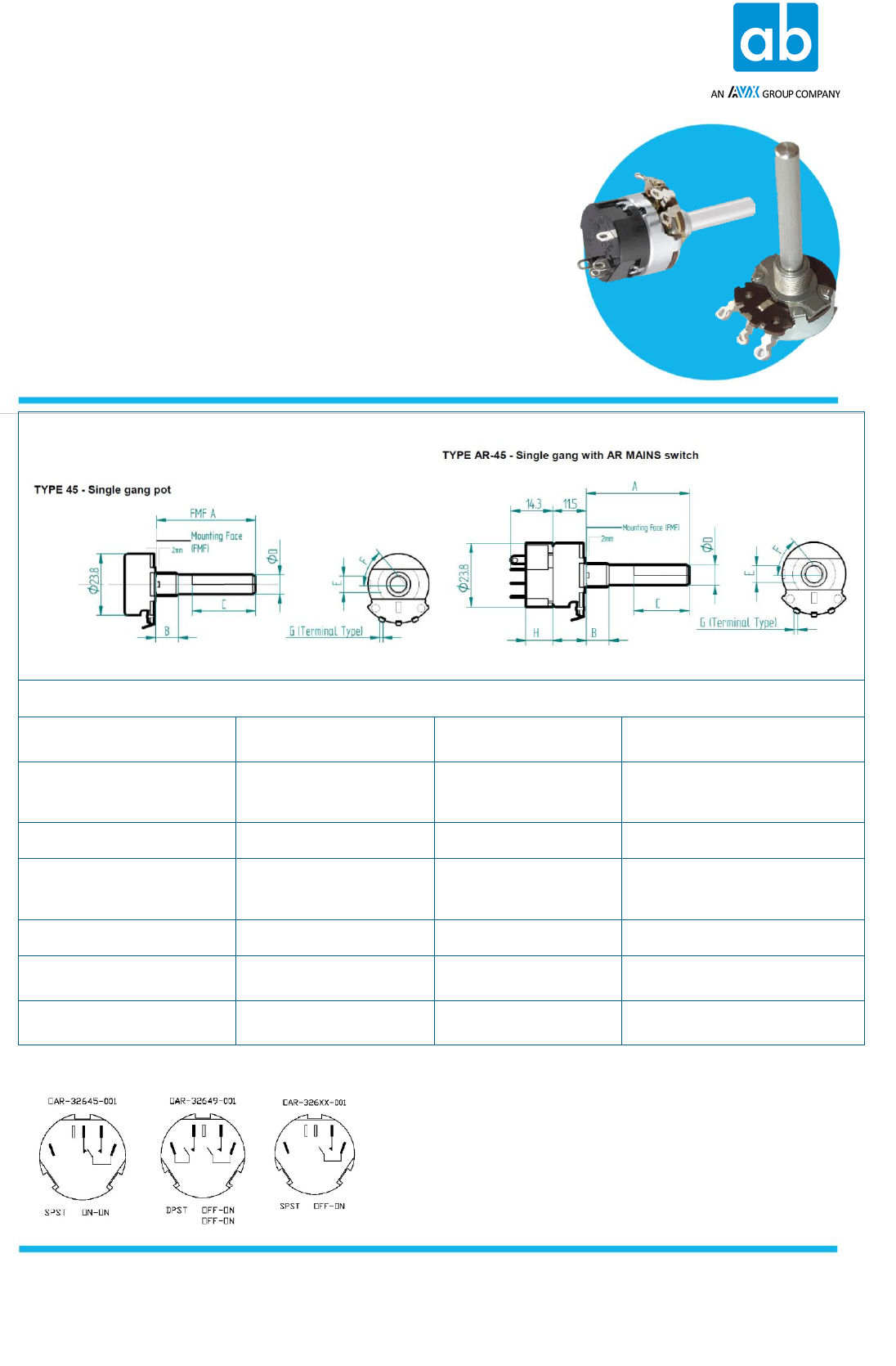

Data Sheet
General Note This datasheet does not give any information on product availability. The information given is just meant to describe the
product and is not to be considered as guaranteed characteristics in the legal sense. All products are subject to design changes in the
interest of further technical development.
Copyright: AB Elektronik GmbH (GER) ▪ info@abelektronik.de ▪ www.abelektronik.com
05/2018
Page 1 / 1
Technical data
Mechanical Rotation
300° +/- 5° without switch
320° +/- 5° with switch
Resistance Range
500 Ω to 10M Ω Linear
1K Ω to 10M Ω Logarithmic
Operating Torque
0.7 – 3.6 Ncm
Resistance Tolerance
Standard +/- 20% for values to 1M Ω
+/- 20% for values above 1M Ω
Special +/- 10%
End Stop Torque
113 Ncm minimum
Insulation Resistance
>5000M Ω
Mounting Details
M10 diecast bush,
M10x0.75x8mm ling with
standard or DIN locating key
Voltage Rating
500V d c maximum
Voltage Proof
1.5 kV peak minimum
Temperature Range
-25°C to 70°C
Temperature Coefficient
Typically +/- 500ppm
Power Rating at 40°C
Ambient Temperature
0.5W Linear
0.25W Logarithmic
Mains Switch-Type AR
The switch is rated at 2A/250V
with a surge rating of 64A
Mains Switch contact Arrangement
Carbon Composition Potentiometers
Series 45
