User Manual

• Custom cut to provide perfect opening
• Enhanced for superior ventilation
• Assembles easily in minutes
• Rear brackets included to prevent mounted
component from sliding back
• Accepts any component up to 17-3/4” wide,
iPad and iPod docks
• Choice of finishes: black brushed and
anodized and black textured powder coat
• Optional rubber-lined captivating clamps
available for use in mobile applications and
installations in seismic zones
• Face plates may also be ordered separately
(model AFACE, CFACE, SFACE)
• UL Listed in the US and Canada
RSH Series
Custom Rackmount
96-034 / rev 5c / 07-26-11
96-034 / rev 5c / 07-26-11 / RSH Series Custom Rackmount
EIA compliant 19” custom rackmount shall be Middle Atlantic Products model # RSH4(A,S)
custom fit to accommodate the component installed in RSH (A- black brushed and anodized,
S- textured black powder coat). RSH series custom rackshelf shall be constructed of the following
materials: vented bottoms and side panels (ears) shall be 16-gauge steel with a durable flat
black powder coat finish, faceplate shall be .063" thick aluminum. Custom rackshelf shall be UL
Listed in the US and Canada. Clamp kit for RSH series custom rackshelf shall be Middle Atlantic
Products part # -C. Clamp kit shall be constructed of 16-gauge steel and finished in a durable
black powder coat. Custom rackshelf shall be GREENGUARD Indoor Air Quality Certified for
Children and Schools. Custom rackshelf shall be RoHS EU Directive 2002/95/EC compliant.
Custom rackshelf shall be manufactured by an ISO 9001 and ISO 14001 registered company.
Custom rackshelf shall be warrantied to be free from defects in material or workmanship under
normal use and conditions for the lifetime of the product.
OPTIONS
• Clamp kit for use in mobile applications and installations in seismic zones, part # -C
The RSH Series Custom Rackmount can install virtually any
component in a standard 19” enclosure. Custom cut to provide a
perfect opening for the face of the component you are mounting

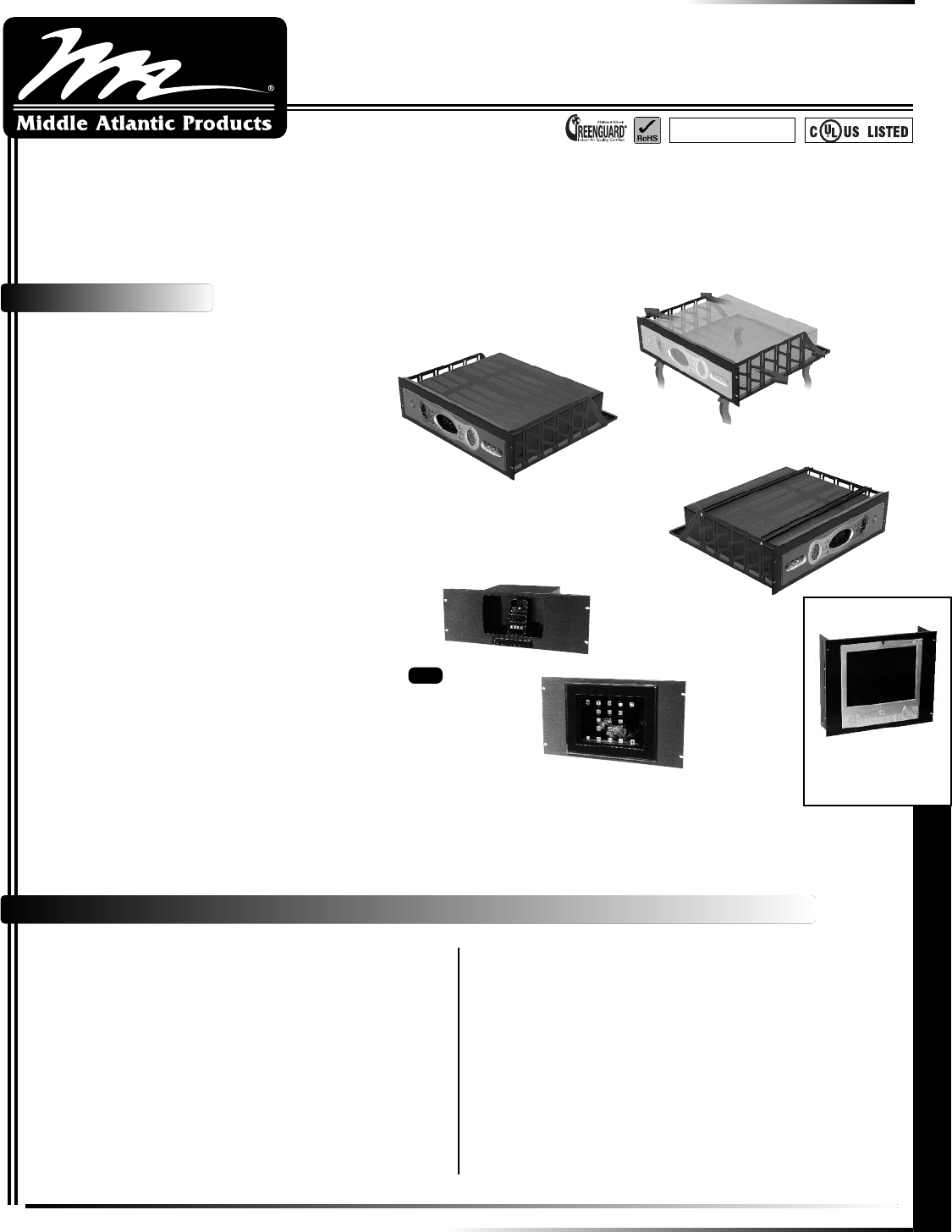

RSH4A
clamp option with
unit installed
RSH4A
custom rackmount
with unit installed
New design provides
enhanced ventilation
Now accepts
iPod
®
docks and
iPad
®
mounts
RSH Custom LCD Mount
see A&E specification
# 96-999
