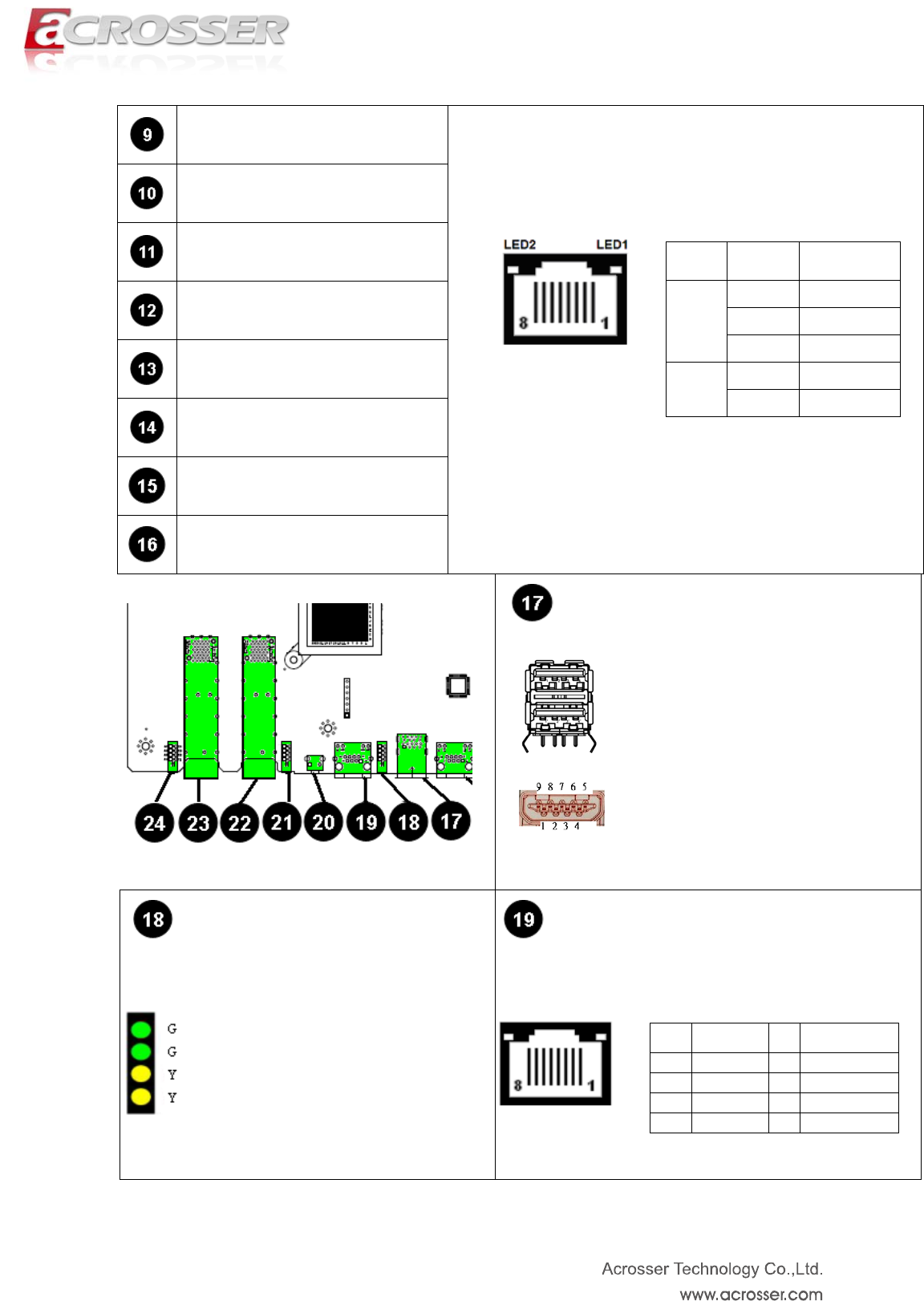

LAN1 RJ45 LAN Connector
LAN2 RJ45 LAN Connector
LAN3 RJ45 LAN Connector
LAN4 RJ45 LAN Connector
LAN5 RJ45 LAN Connector
LAN6 RJ45 LAN Connector
LAN7 RJ45 LAN Connector
LAN8 RJ45 LAN Connector
LAN LED table:
LED ON/OFF Status
OFF 10Mbps
Green 100Mbps
LED1
Orange 1000Mbps
Yellow Link/Active
LED2
OFF LAN OFF
CN_2USB1
Standard USB 3.0 Type-A connector
LED3 COM1
Green1: Power ON LED.
Green2: HDD LED
Yellow1: LAN3&LAN4 Bypass
LED.
Yellow2: LAN1&LAN2 Bypass
LED.
RS-232, RJ45 connector
PIN Signal PIN Signal
1 RTS 5 GND
2 DTR 6 SIN
3 SOUT 7 DSR
4 GND 8 CTS
28
