Chapter 6 Driver And Utility Installation
6.1. Driver CD Interface Introduction
Acrosser provides the a driver CD, which includes the drivers, utilities,
applications and documents. For Windows environment, it can be guided by
the setup program; for Linux environment, the related files can be found at
folder “IB75N1\Linux”.
Once putting the CD into the optical disk drive, it will run automatically. The driver CD

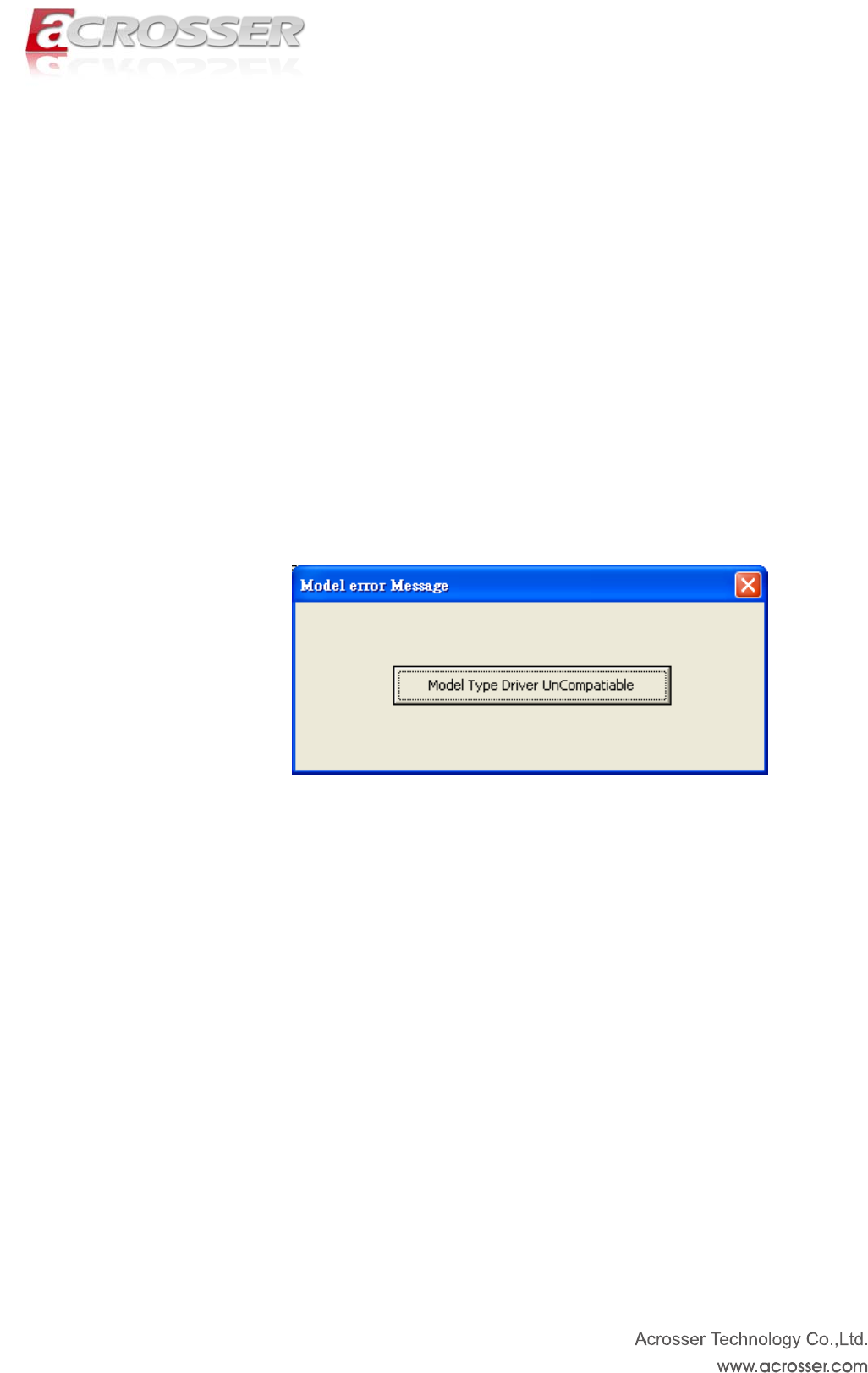

will also detect the MB information to see if they are matched. The following error messages
appear if you get an incorrect driver CD.
It indicates that the board information is not available.
54
