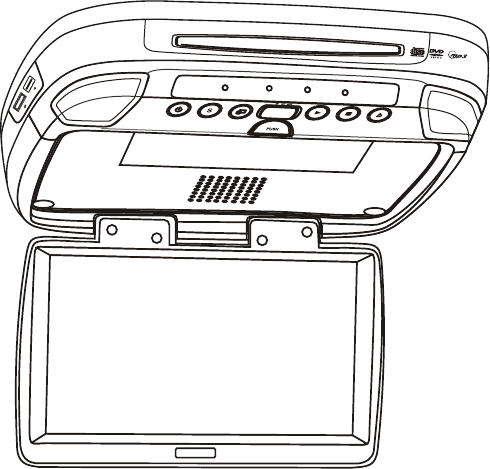

ODM90902CR Overhead 9" TFT LCD Monitor with Built-in DVD Player Owner Manual / Installation Guide
Important Notice An LCD panel or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.
FEATURES 9 Inch TFT (Thin Film Transistor) l Active Matrix LCD (Liquid Crystal Display) Monitor. OSD (On Screen Display) for control of Picture Quality and Functions. l Full Function Remote Control. l Playing DVD, CD and MP3 Disc. l Built-in 16 Channel Frequency Wireless FM Modulator. l Dome Light with 3-Position Switch. l Three Audio/Video Source Inputs (DVD/SD/USB, AV1 and AUX). l AV Output via RCA Cable. l Last Position Memory for DVD. l Screen Mode Selection (4:3, 16:9). l Backlit Controls. l USB 2.
CONTROLS AND INDICATORS DIAGRAM 10 14 13 12 11 10 1 9 2 8 3 7 16 15 17 4 5 6 4
CONTROLS FUNCTION DESCRIPTIONS 1. POWER Button – Used to turn the DVD and Monitor system on/off. Bright red when the system is on, dim when off. 2. Source Select – Use to select one of the three sources: DVD/SD/USB, AV1, AUX. 3. Screen Mode Button – Allows the user to change the screen format (Aspect Ratio 4:3 or 16:9). 4. Ventilation Openings 5. Monitor Cut Off Switch – Used to turn off monitor when in the closed position. 6. Drop Down Panel 7.
Install The Battery In The Remote nitial Use When purchased the remote control has a battery installed with a Pull Tab to prevent battery discharge. Remove the Pull Tab before attempting to use the remote. Battery Replacement 1. Remove the battery holder. 2. Insert the battery into the battery holder and insert the battery holder into the remote. Be sure to observe the correct polarity. 3. Align the battery holder with the remote control and push until the holder clicks.
REMOTE CONTROL FUNCTION DESCRIPTIONS * Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF. 2. MONITOR SELECT M1 Button – Sets the remote control code to allow control of the unit set to M1 mode. M2 Button** – Sets the remote control code to allow control of the unit set to M2 mode. 3. SOURCE* Each time the button is pressed, the change mode as DVD/SD/USB, AV1 and AUX. 4.
10. DISPLAY Press to display the current disc information while the disc is playing. Press the cursor (p q ) buttons to select the Title or Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection. 11. SCAN BACKWARD (7 ) Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times the normal speed. 12. PLAY* Press to activate the play mode while a disc is loaded in the disc compartment. 13.
22. SETUP Press to display the Setup Menu which allows the user to change the DVD player options such as LANGUAGE, VIDEO, RATING & MISC. Refer to the settings and adjustments section for more information. 23. SUBTITLE Press to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes. Note: The type and number of languages for subtitle vary from disc to disc. 24. REPEAT Allows the user to repeat a selected title, chapter, or track. 25.
MENU ADJUSTMENT The System Menu Contains features and options that let you customize your system to change the screen mode display, OSD language and source default. 1) Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen. 2) Use the cursor buttons p or q to select the desired item in the main page and press the ENTER button to select. 3) The sub menu will appear on screen.
FMM SELECT FMM ON/OFF Options - Turns the Wireless FM Modulator on or off. FMM SELECT Options - Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1MHz).
SOURCE DEFAULT DVD This allows the user option for selectable to default to DVD source (via System Menu). Note: • If selected default source is set to DVD every time the unit’s power is cycled with the source set to something other then DVD, the unit will power up and automatically switch the source over to DVD. • Unit will be set to Last Memory on as the default mode of operation. • Selection of Source default can only be made from within the system menu .
SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or prevent DVD playback for children. Using the Setup Menu 1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram. Language OSD Language : English Video Subtitle : Off Rating Audio : English Misc 2.
SUBTITLE SETUP Language OSD Language Video Subtitle English French Select "SUBTITLE" using the cursor button p q , Rating then press the cursor button u to enter the Sub Misc menu. Select the subtitle you desire using the cursor button p q , then press "ENTER" to confirm the setting. Press the cursor button t to return. Audio Spanish German Italian Chinese Japanese Thai Off Note: The subtitle selection is only available for discs that are recorded in the above listed languages.
RATING SETUP Rating This item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict control. 1. G Language Parental : 6.Adult 2. PG Change password Video 3. PG - 13 Rating 4. R 5. NC - 17 Misc 6. Adult : 6.Adult Language Parental The rating level can only be changed when the Change password displayed lock is open.
Screen Saver ON - Screen saver will appear OFF - Screen saver will not appear Language Video Rating Load Factory Screen Saver Off On Misc Note: The DVD player will enable the Screen Saver Mode if the unit is inactive for approximately 2 minutes. Playing DVDs 1. Press the DISPLAY button on the remote control to display the status banner. The banner include title, chapter, angle, audio, subtitle, title selection & chapter selection. 2.
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CDR discs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc. When playback is started the elapsed time of the track that is playing will be displayed.
Mode: play mode The Mode function has 4 options: Normal, Shuffle, Random and Music Intro. Move cursor to the desired Mode function and press ENTER;Normal/Shuffle/Random/Music Intro are selected in that order. The mode function default status is Normal. 00:00:01 Normal: Play all songs in folder once 1/12 / 001 Shuffle: Play songs in a folder in a shuffle order. Each 002 song in the folder is played only once. 003 004 Random: Play songs in a folder in a random order.
Region 1- USA, Canada Region 2- Japan, Europe, South Africa, Middle East, Greenland Region 3- S. Korea, Taiwan, Hong Kong, Parts of South East Asia Region 4- Australia, New Zealand, Latin America (including Mexico) Region 5- Eastern Europe, Russia, India, Africa Region 6- China DVD Area Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. DVDs from a different regions cannot be played in this unit and the unit will display "WRONG REGION”.
TROUBLESHOOTING SOLUTION PROBLEM IR sensor inoperative —Verify that the batteries in the remote are fresh. —Verify that the remote sensor eye is not obstructed. Disc won't play —Insert a disc with the label side facing upwards. —Check the type of disc you put into disc tray. This DVD only plays DVDs, audio Cds and MP3s. —Both the unit and the disc are coded by region. If the regional codes don’t match, the disc can’t be played. Play starts, but then stops immediately —The disc is dirty. Clean it.
SOLUTION PROBLEM Picture is distorted —The disc might be damaged. Try another disc. —It is normal for some distortion to appear during forward or reverse scan. No forward or reverse scan —Some discs have sections that prohibit rapid scanning or title and chapter skip. —If try to skip through the warning information and credits at the beginning of a movie, it won’t be able to do. This part of the movie is often programmed to prohibit skipping through it.
WIRING DIAGRAM Dome Light Harness Violet/Brown (Lamp Auto) Red/Black (Lamp On) Black/Red (Lamp Common) FM ANT Red: +12VDC Accessory Ckt. (Install 5A inline Fuse) AV1 Input Cable Line In-V (Yellow) Power Harness Black: Ground Line In-R (Red) Line In-L (White) AV Output Cable Line Out-V (Yellow) Line Out-R (Red) Line Out-L (White) 1) Connect the Power Harness to the mating connector on the Video Monitor.
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light.
Negative Switched Dome Lighting To 3 pin connector Red / Black – Lamp on Black / Red – Lamp common Violet / Brown – Lamp Auto To constant To constant Factory Door ajar switch or Body Mounting the Trim Ring Roof Roof Support Headliner Mounting Bracket Self-drilling Screws Trim Ring Video Unit M5 Flange Nut 24
MATERIALS INCLUDED IN THIS PACKAGE 1) 2) 3) 4) 5) 9" Overhead TFT LCD Monitor with DVD Player Trim Ring Mounting Bracket Remote Control Hardware Kit: • ISO 3 x 6 RD+ • Self Drilling Screw (10mm) – 8pcs – 4pcs • M5 Flange Nut – 4pcs 1) 2) POWER – 1pc – 1pc – 1pc – 1pc 3) EJECT M1 M2 TV DVD SOURCE DVD SOURCE 4) MUTE VOLUME PIX SYSTEM MENU DISC MENU ZOOM SETUP SUBTITLE 5) REPEAT ENTER DISPLAY AUDIO 1 2 3 5 6 7 8 FMM ON/OFF 9 0 IRT ON/OFF 4 TOOLS REQUIRED: • • • • • • •
Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
