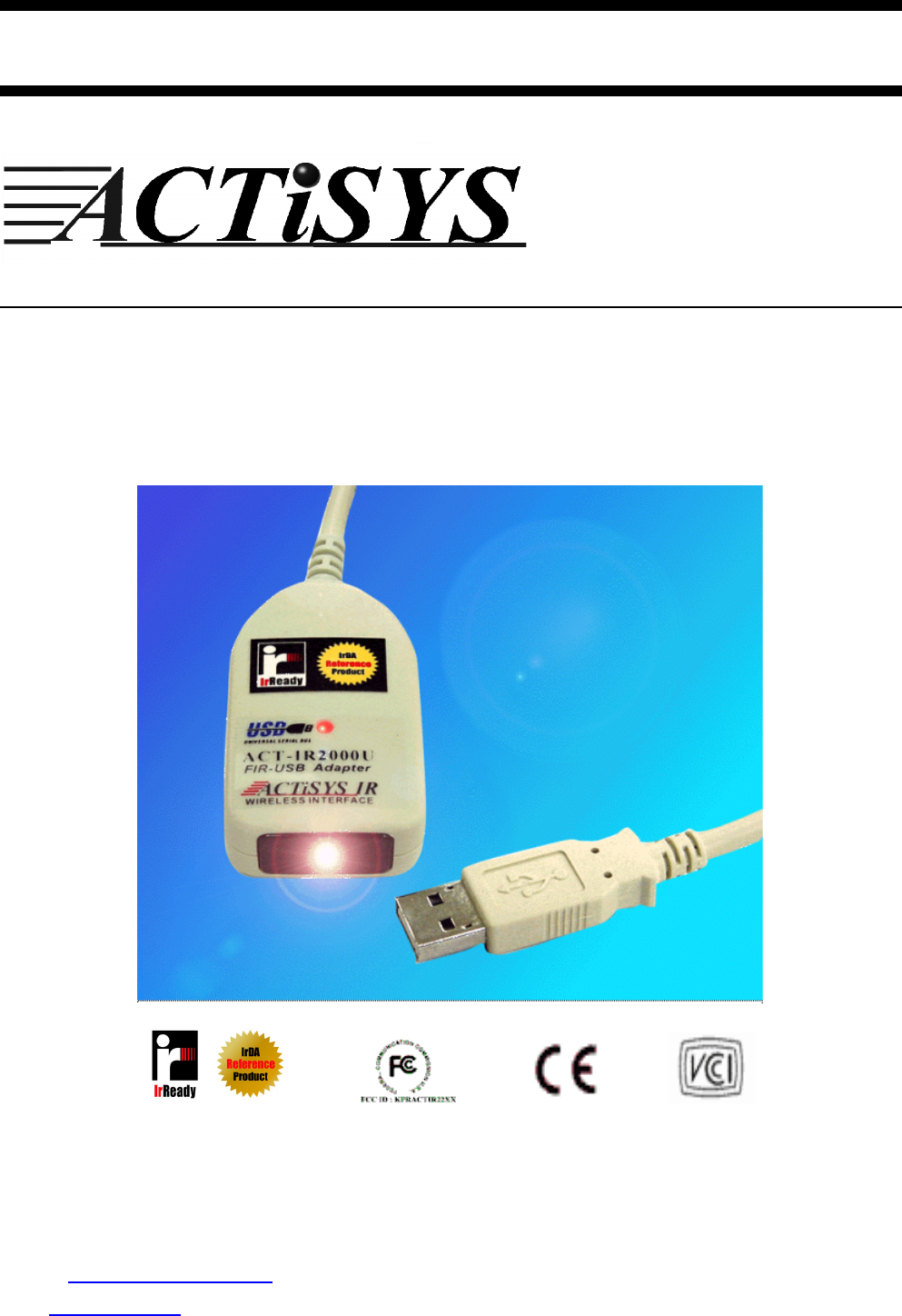

ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual User’s Manual ACTiSYS ACT-IR2000UL Series Windows XP/2000/ME/98SE InstallShield Installation and Removal Release1.5a 2003.7.15 ACTiSYS Corporation 48511 Warm Springs Blvd, Suite 206 Fremont, CA 94539, USA Tel: (510)490-8024, Fax: (510)623-7268 E-Mail: irda-support@actisys.com Web: www.actisys.com Release 1.5a 2003. 7. 15 ACTiSYS Corporation Copyright (C) 2002-2003 ACTiSYS Corp.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual FCC & VCCI Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 1 TABLE OF CONTENTS 1 TABLE OF CONTENTS ............................................................................................................................................ 3 2 INTRODUCTION ....................................................................................................................................................... 4 3 PACKING CHECK LIST .................................................................................
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 2 INTRODUCTION ACTiSYS IR2000UL is an advanced wireless Fast Infrared USB adapter designed to replace the serial port or FIR controller based FIR/SIR wireless peripheral through the PC USB (Universal Serial Bus) port.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 6 ACT-IR2000UL SERIES DRIVER INSTALLATION FOR WINDOWS 2000/ME/98SE Following are the instructions to properly install the ACTiSYS ACT-IR2000UL Series under, Windows 2000, Windows ME, and Windows 98SE. Important: Do NOT use Windows’ Native Driver. Please use the driver on this CD to assure a smooth installation. 1. Insert the attached CD to CD-ROM, Windows will display install manual. Please click Installation then will execute InstallShield Wizard.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 3. To complete the installation, plug the ACTiSYS ACT-IR2000UL Series into the USB port. If the Actisys ACT-IR2000UL Series is already plugged in, remove it then re-insert it. Click on Finish to continue. 4. Windows will now detect the ACTiSYS ACT-IR2000UL Series. In some operating systems, you may need to restart your computer. If so, click “Yes” to continue and the Installation is now complete. Release 1.5a 2003. 7.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 7 ACTISYS ACT-IR2000UL SERIES DRIVER INSTALLATION FOR WINDOWS XP Following are the instructions to properly install the ACTiSYS ACT-IR2000UL Series under Windows XP. Important: Do NOT use Windows’ Native Driver. Please use the driver on this CD to assure a smooth installation.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 3. Click on Continue Anyway to continue 4. Insert the ACTiSYS ACTIR2000UL Series into the USB Jack and click on Finish. Release 1.5a 2003. 7.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 5. WinXP will detect the ACTiSYS ACT-IR2000UL Series. Select Install the software automatically (Recommended). Please note you should take the CD out of the CD-ROM BEFORE clicking on Next. If you kept the CD in the CDROM, Windows XP will automatically search for all drivers compatible with IR2000UL. You will see a window with a choice of different drivers, please select the OEM one.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 7. Click on Finish to complete the installation. Release 1.5a 2003. 7.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 8 ACTISYS ACT-IR2000UL WINDOWS XP NATIVE DRIVER REMOVE PROCEDURE Your ACTiSYS ACT-IR2000UL is shipped with the latest driver on the CD. If you had already installed the Windows XP Native Driver, the following steps will remove the Native Driver and then you can follow the ACTiSYS ACT-IR2000UL Installation Instruction to install the latest driver.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 3. Right click on “SigmaTel USB-IrDA Dongle” Click on Uninstall. 4. You will see a “Confirm Device Removal” Window then press OK. 5. You have completed the removal of the Windows XP Native Driver. Click on Yes. Congratulation! You have successfully removed the Windows XP Native Driver for the USB Infrared Adapter. Before the PC is restarting, you should un-plug your ACT-IR2000UL USB connector from the PC’s USB port.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 9 ACT-IR2000UL SERIES DRIVER REMOVAL FOR WINDOWS XP/2000/ME/98SE Following are the instructions to properly uninstall ACTiSYS ACT-IR2000UL Series under Windows XP, Windows 2000, Windows ME, and Windows 98SE. Important: Please keep the ACTiSYS ACT-IR2000UL Series plugging into the computer until prompted to remove it. 1. Open the Control Panel and select Add / Remove Programs. 2. Select ACTiSYS ACT-IR2000UL Series from the list.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 3. To continue, click the Yes button to uninstall the ACTiSYS ACT-IR2000UL Adapter. 4. To complete the removal process, click the Finish button. Unplug the ACTiSYS ACT-IR2000UL Series from your USB jack. Release 1.5a 2003. 7.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 10 TROUBLE SHOOTING For help on general and miscellaneous problems you may be experiencing with your printing, refer to the following pages for possible solutions. Look up your problem and try the solution. SYMPTOM PROBLEM Solution Can not establish link (General) 1. The two IR devices are not aligned properly. 2. Distance is too near or far. 3. Device is inactivated 4. BIOS setting incorrect 5. Installation is not correct. 1.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 11 SPECIFICATION • • Product Name: ACT-IR4000US/2000UL FIR-USB Adapter Compatibility: Fully compliant to USB specification 1.1 and IrDA specification 1.1 • Communication speed and Distance: IrDA-1.0 (9.6, 19.2, 38.4, 57.6, 115.2Kbps): 3-100cm; IrDA-1.1 (4Mbps): 3--100cm; • Connection: Standard USB connector with 4-ft USB cable • Power Source: Obtain power from USB port. No external power supply required.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 12 PRECAUTIONS To ensure trouble-free operation, please observe the following precautions: Optical communications are easily affected by external light sources, weak batteries, transfer distance, transfer angle, etc. Any of these conditions may cause a data transfer failure, incomplete, missing or incorrect data. Make sure that the wireless interface is away from direct sunlight and other strong light source.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 13 WARRANTY INFORMATION THE FOLLOWING WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
ACTiSYS ACTiSYS ACT-IR2000UL Series User’s Manual 14 CONTACT INFORMATION ACTiSYS Corporation. 48511 Warm Springs Blvd, Suite 206 Fremont, CA 94539, USA TEL: (510) 490-8024, FAX: (510) 623-7268 E-Mail: irda-support@actisys.com Web: www.actisys.com Release 1.5a 2003. 7.
