Chrysler Historic
Prior to 1996, most Chrysler vehicles used either the SCI or LH DLC. Refer to
“Appendix A - Data Link Connectors" for DLC type and location. The SCI
adapter cable is included with the scan tool. The LH adapter cable (P/N 9605)
can be purchased from your dealer.
Use the Battery Power cable to provide 12V to the tool when
using the SCI adapter cable.

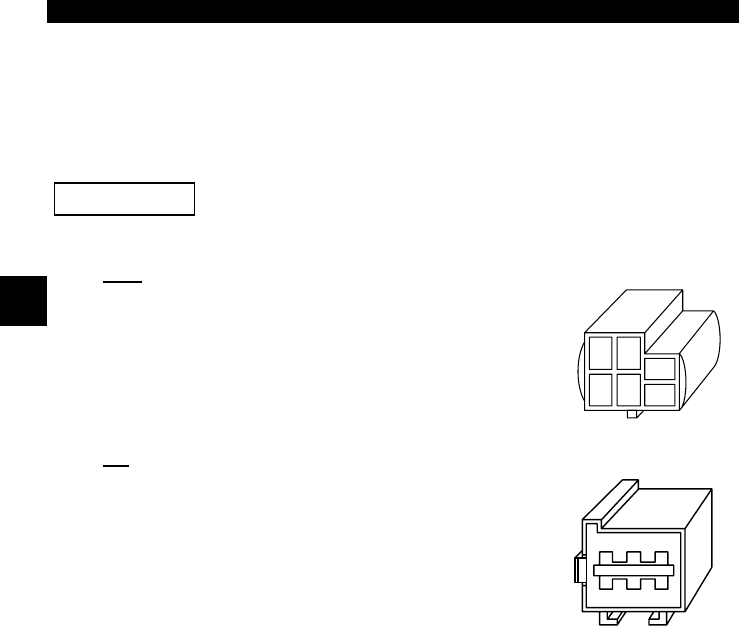

SCI
The SCI (serial communications interface) DLC is a
6-pin connector located in the engine compartment.
The adapter cable to be used on these vehicles is
supplied with the tool. This cable is labeled CHRY on
the 15 pin DB style connector and SCI on the vehicle
end.
LH
The DLC is used on LH platform vehicles. The LH
style DLC is a small, blue, rectangular 6-pin
connector located in the passenger compartment
below the dashboard to the right of the steering
column.
The LH Adapter Cable (P/N 9605) is optional and
must be purchased separately.
IMPORTANT
SCI
LH (P/N 9605)
