Section 3 – Using The Scan Tool

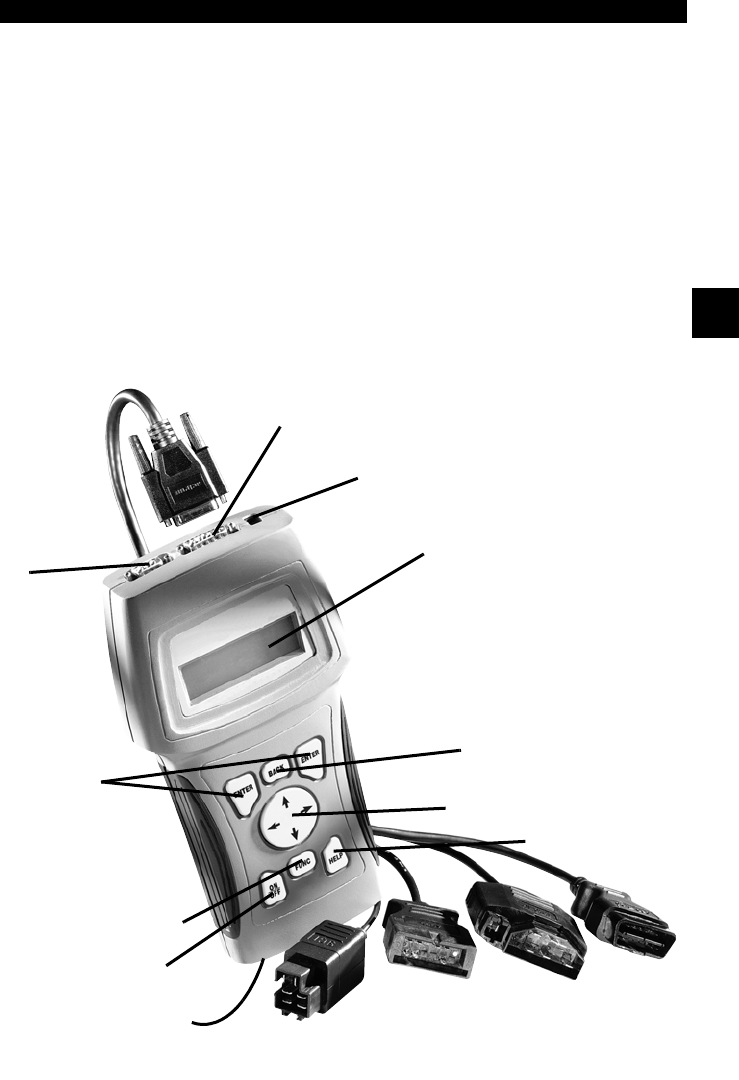

THE SCAN TOOL
B Serial Port (DB9 Male Connector) – provides a serial RS232 connection for a printer
and for updating the software.
C DLC Port (DB15 Male Connector) – provides connection for vehicle interface.
D 12V Power Jack
E LCD Display – backlit, 4 line x 20 character with contrast adjustment.
F BACK key – goes to the previous screen or level.
G UP/DOWN arrows – scrolls UP or DOWN and moves the selection pointer (`).
LEFT/RIGHT arrows – selects responses and moves cursor (^) in code lookup.
H HELP key – accesses the Help Function.
I ENTER key – selects displayed items.
J FUNC key – returns back to a function list or menu.
a ON/OFF key – turns power ON/OFF when not connected to vehicle.
b Battery compartment cover.
