362 11 G-Code Edit, Help, & Advanced Features
11.1 G-Code Program Editing
Find: Specific Text or Code in a program
Use the Find/Replace button in Edit Mode to search for blocks, or for
specific text.
Text, or Program Codes can be searched for throughout the entire
program, or at specific locations. The following examples show how
to use the Find/Replace button to search for blocks, or for specific
text.
First open the program for editing using the Edit button.

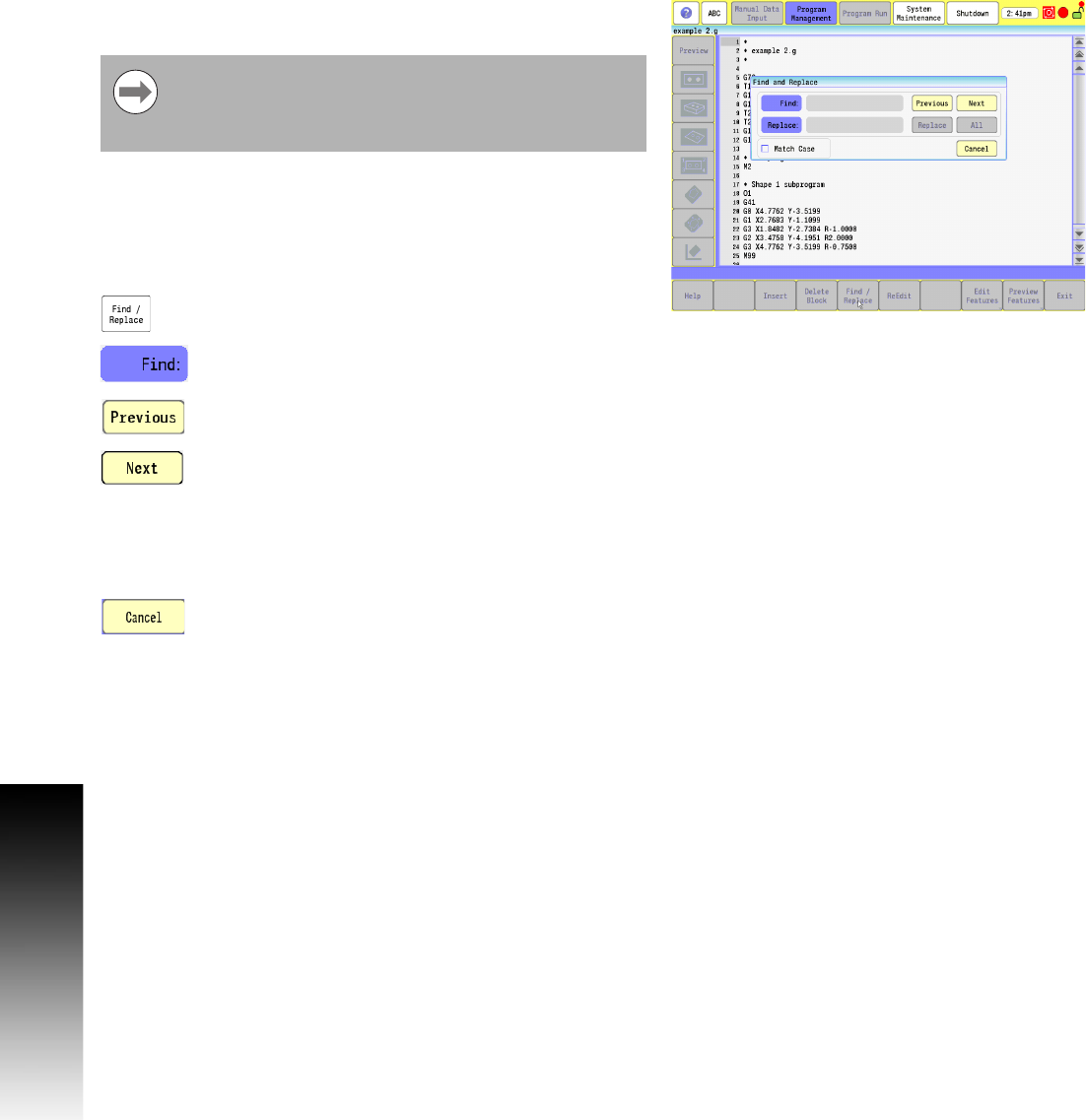

Place the cursor anywhere in the program, and touch
the Find/Replace button.
In the Find input field, type in only the text, or code
that is being searched for.
Touch Previous to search from cursor location to the
beginning.
Or touch Next to search to the end of the program.
To find all instances of specific text, or a code, place the cursor at
the beginning of the program.
Check the Match Case box to narrow the search parameters for
specific text, or a code.
Touch Cancel to exit the Find and Replace dialogue.
Depending on cursor location in the program, touch
previous to search from cursor location to the beginning
of the program, or next to search to the end of the
program.
