Fingerprint Software User Manual Fingerprint Disk User Manual -1-
Fingerprint Software User Manual -IndexGeneral Description .............................................................................................................3 Features .................................................................................................................................3 System Requirements ............................................................................................................

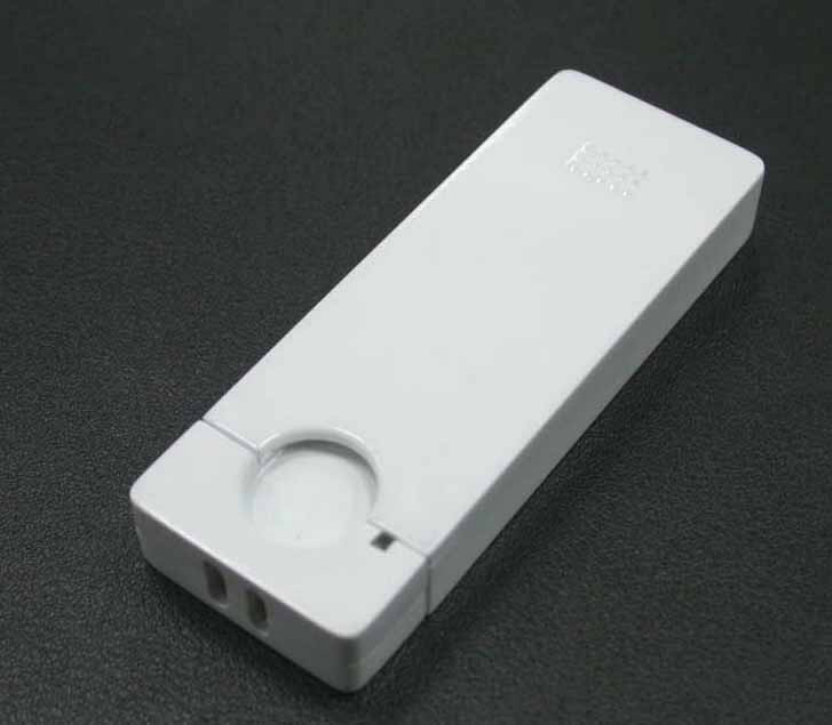

Fingerprint Software User Manual General Description ADATA FP Disk USB 2.0 is a new biometric technology USB flash drive; it provides data security with fingerprint scanning identification. To protect your personal data from others in a very easy way, just plug in the pen drive, and sweep your finger. Then no one can access your disk but you .It also provides another password access, in case user’s finger is injured. Features ․ No driver for Fingerprint sensor for most Windows OS.
Fingerprint Software User Manual How to start using your Fingerprint and open Fingerprint Application Software 1.Please plug-in your Fingerprint device into your PC or laptop USB port. The system will pop-up a message. Please click “NO” icon and continue next step. 2.
Fingerprint Software User Manual 3.Please move your mouse pointer on one finger and click it.Then click “next” to continue next step.(the finger on the screen does not need to match withthe real scanned finger) 4.
Fingerprint Software User Manual If you are still not scan your finger over 10 minutes,it will open a waring Message 5.Slide your finger on device sensor.The sensor will scan your fingerprint and compare it more than 3 times.(Note.1) Note.
Fingerprint Software User Manual 6.The fingerprint register into the devicde when your fingerprint is scanned successfully. 7.Please fill the “Hint” 、”New Password” and “Confirm New Password” then click “OK”.(Note2.), to enter the backup password.
Fingerprint Software User Manual Note.2:This function offers another way to login this device, especially when something is wrong with your finger! 8.You can see below windows when you register your fingerprint and password success into the device. Slide your finger on the device sensoir. 9.
Fingerprint Software User Manual 10.Fingerprint AP SW will pop-up on your system And there is a tray icon showing at left corner on the screen.It has three functions for user’s choose. If user chooses the “Format” function,the system will pop-up a warning message If you press “OK”,all of the data will be fomat.
Fingerprint Software User Manual If the "Fingerprint Life time setting" is set "Never use Fingerprint enroll", every time you click on tray icon will open the "Menu for Fingerprint". If user can not finish the enrollment in ten minutes, you must re-verify the fingerprint again. "Fingerprint Authentication" dialog will ask you for your fingerprint verification. Verify your fingerprint Click on the Fingerprint Software tray icon your fingerprint.
Fingerprint Software User Manual Or press "Password >>" button and enter your password. If the fingerprint verification succeeds, the Menu for Fingerprint Access will appear. Remark: When your PC or laptop get into sleeping-mode or suspend-mode, please replug-in your Fingerprint device agin.
Fingerprint Software User Manual How to Open the Menu for Fingerprint Software IE AutoLogin IE AutoLogin allows you to automate the entry of ID and/or password on a web site. At first, you save your ID and/or password for a web site. When you go to the web site, IE AutoLogin fills in the dialog boxes automatically after a successful fingerprint or password verification. Note : This application is for Internet Explorer only.
Fingerprint Software User Manual How to "Save ID and Password" 1 Start Internet Explorer and go to the web site for which you want to store your ID and/or Password. 2 Type your Username and Password.
Fingerprint Software User Manual 3. Click the icon ID and Password” on the taskbar of Internet Explorer and choose “Save 4. If the "Fingerprint Life time setting" is set "Never use Fingerprint enroll", the Username and/or Password is saved.
Fingerprint Software User Manual If the current fingerprint expires, you must re-verify the fingerprint in order to save the Username and/or Password. "Fingerprint Authentication" dialog will ask you for your fingerprint verification. (This process can also be executed by typing in your password.
Fingerprint Software User Manual ID/Password AutoLogin auto-filling Method 1.
Fingerprint Software User Manual Method 2. You can also go to the web site directly without starting Internet Explorer via the Menu for Fingerprint Access. Click IE AutoLogin and choose the web site you want to go to. Internet Explorer will automatically start and show the web site that you have chosen. And your ID and/or Password will automatically be filled in.
Fingerprint Software User Manual AutoLogin Database Manager You can delete ID and Password, and manage all the URLs that you've - 18 -
Fingerprint Software User Manual Access To Favorites You can get access to your "Favorites" included in Internet Explorer. Carry-On My Favorites 1. Open "Menu for Fingerprint Access". 2. Click "Access To Favorites" and then select "Organize..." 3. My Favorites in Internet Explorer will appear on the left side. 4. You can select a favorite web site you want to add and copy them into "Fingerprint". Also, you can delete a web site listed in the right pane.
Fingerprint Software User Manual ․Computer Side: The favorites already registered into Internet Explorer are listed. ․Fingerprint Disk side: The favorites already stored in your FP1 are listed. ․Select All: Select all URL in the frame. ․Delete: Delete the URL that you selected. 5. You can directly open "Access to Favorites" through "Menu for Fingerprint Access".
Fingerprint Software User Manual FlashMail Managing multiple e-mail accounts If you have multiple e-mail accounts, you can manage these accounts in the same browser window simultaneously. You are also able to set each account to only receiving certain mails (spam blocking). Conveniently send and receive mails FlashMail is an application that runs on Flash Disk. You can easily access your e-mail accounts when the Flash Disk is inserted into the computer, wherever you go.
Fingerprint Software User Manual E-mail Account Setup If you would like to set up an account, please click on in the tool bar and select . Now you will enter , as shown below: When you see the message above, click to go to the next window; If you would like to add a new account, go to [Accounts in Outlook Express of this PC:] select the existing Outlook Express e-mail account(s), and click to add the new account(s).
Fingerprint Software User Manual - 23 -
Fingerprint Software User Manual If you use button to import your e-mail account in Outlook Express, please enter the password for that account manually. Also, please make sure that the information in is correct. (If you have anti-virus programs, e.g. Norton Anti-Virus, the software may include your e-mail server into its virus scanning paths.
Fingerprint Software User Manual FlashMail Function Settings When you execute FlashMail, a FlashMail main window will appear. File (F): The main choices are and . • If you would like to send an e-mail, you may directly choose or click on the icon on your tool bar. This will then take you to the outbox window and you may compose e-mails.
Fingerprint Software User Manual Help (H): The main options are and ٛ •If you are unsure of how to use FlashMail, refer to the ٛ under the menu. ٛ •If you would like to learn more about our company and version, you can click on in the menu. Read Mail • --Check Mail Before you download any e-mail, you can click on the button on the tool bar to check whether you have any new mail.
Fingerprint Software User Manual • Download Mail All the ones selected will immediately be downloaded onto Flash Disk, and on the file list you can see that the names have been changed to "Got" instead of "Not yet". 1. --Retrieve All All the mails will immediately be downloaded onto Flash Disk, and on the file list you can see that the names have been changed to "Got" instead of "Not yet". 2.
Fingerprint Software User Manual • --Delete Mail When you wish to delete any mail, first select the ones you would like to delete and click on on the toolbar. A window will then appear asking whether to or . Please choose one of the options and proceed by clicking and the mail will be deleted. (Shown below) If you choose to . Then the mail will be permanently deleted.
Fingerprint Software User Manual Sending E-Mail 1 If you click on the on the Outbox window, a Mail Editor window will appear. In the line, you can enter the recipient's e-mail address. If there are multiple recipients, separate the addresses with semi-colons (;). Or you can click on the button and find the people from your address book. In the line, enter the subject of this e-mail. Write the e-mail, and then click the button on the toolbar.
Fingerprint Software User Manual Address Book Summary FlashMail offers a simple way to store your address book. Importing address book from other mail software You can export CSV format address books from other e-mail software(s) into FlashMail's address book. A good example is to use the "Export Address Book" function in Microsoft Outlook. First, convert the file into CSV format and then import it into FlashMail.
Fingerprint Software User Manual Change Contacts Information Find the name you want from the
list and double click on it. Or select the name(s) and click on to change the information. Note: If you want to delete a contact, please select the name of the contact and click on the button. If this contact is part of a group, then it will be successfully removed from the entire group.Fingerprint Software User Manual You will find the name of the new contact in your address book, shown below: Use CSV files generated by other programs and import the address book to FlashMail Choose the option from the menu, and then the dialogue below will appear: Select the CSV file that you would like to import and then the following window will appear after you click on : - 32 -
Fingerprint Software User Manual Now, please choose the contacts you would like to import, and click on the button. The contacts you selected will be transferred onto Flash Disk address book (see Fig. 1), click and it will successfully import the contacts into the address book (see Fig. 2). Fig.
Fingerprint Software User Manual Fig.
Fingerprint Software User Manual How to remove contacts Remove contacts from address book Select the contacts that you would like to remove from the address book, and then click . This contact will also be removed from its current group. Follow the steps below: 1.First, select the contacts, and click . Or use the option from the menu, shown below: 2.After you click , the message will pop-up to confirm (shown below).
Fingerprint Software User Manual User Settings In "User Settings" dialog, you can set: •Fingerprint Registration •Fingerprint Software Password Setting •Fingerprint Live Time Setting Fingerprint registration - 36 -
Fingerprint Software User Manual 2. In the "Finger Identify" windows, there are two ways to verify your fingerprint. Method 1. * Finger Identify: Verify your previously registered fingerprint. The blue fingers show which fingers have been registered. Method 2. * Password: Click the "Password >>" button and enter your password if you want to use it instead of your fingerprint. 3. Finger Registration Wizard will start. And you may register or delete your registered fingers.
Fingerprint Software User Manual Fingerprint Software Password Setting In the "Hint and Password" dialog, you can set your rescue hint and password.
Fingerprint Software User Manual Fingerprint Live Time Setting Life of Current Fingerprint If you are working in an environment which requires full confidentiality, you may set the "Fingerprint Life" to a short period of time (e.g. two minutes). When you leave computer, current fingerprint soon expires. After current fingerprint expires, you must re-verify the "Fingerprint Life". This feature offers you full confidentiality.
Fingerprint Software User Manual Folder Security Folder Encryption: Encrypted folders enable fingerprint security to all files within a folder. 1. Point cursor to the folder you wish to encrypt and right-click. Choose 2. When authentication is successful, the folder (and files inside) will be encrypted. Files inside this folder will also have a lock on their icons. PS: The folder icon for the Encrypted Folder is as same as one for normal folder with Windows 98/98SE.
Fingerprint Software User Manual Folder Decryption: To decrypt encrypted files. 1.Right-click on the encrypted folder, and choose "Decrypt Folder" from the menu. 2.If the "Fingerprint Life time setting" is set "Never use Fingerprint enroll", the folder will be decrypted. 3.If the current fingerprint expires, you must re-verify the fingerprint in order to decrypt the files. "Fingerprint Authentication" dialog will ask you for your fingerprint verification.
Fingerprint Software User Manual 4. The icon of the decrypted folder will return to its normal appearance. Files inside this folder will also be decrypted and the icons will have no locks.
Fingerprint Software User Manual File Security File Encryption Your encrypted files can only be accessed by fingerprint (or password). 1.Point cursor to the file you want to encrypt and right-click. Choose Encrypt File from the menu. 2.When authentication is successful, the file will be encrypted.
Fingerprint Software User Manual File Decryption To decrypt encrypted files. 1.Point cursor to the file you want to decrypt and right-click. Choose Decrypt File from the menu. 2.If the "Fingerprint Life time setting" is set "Never use Fingerprint enroll", the file will be decrypted. 3.If the current fingerprint expires, you must re-verify the fingerprint in order to decrypt the files. "Fingerprint Authentication" dialog will ask you for your fingerprint verification.
Fingerprint Software User Manual 4. The icon of the decrypted file will have no lock and will go back to its normal appearance.
