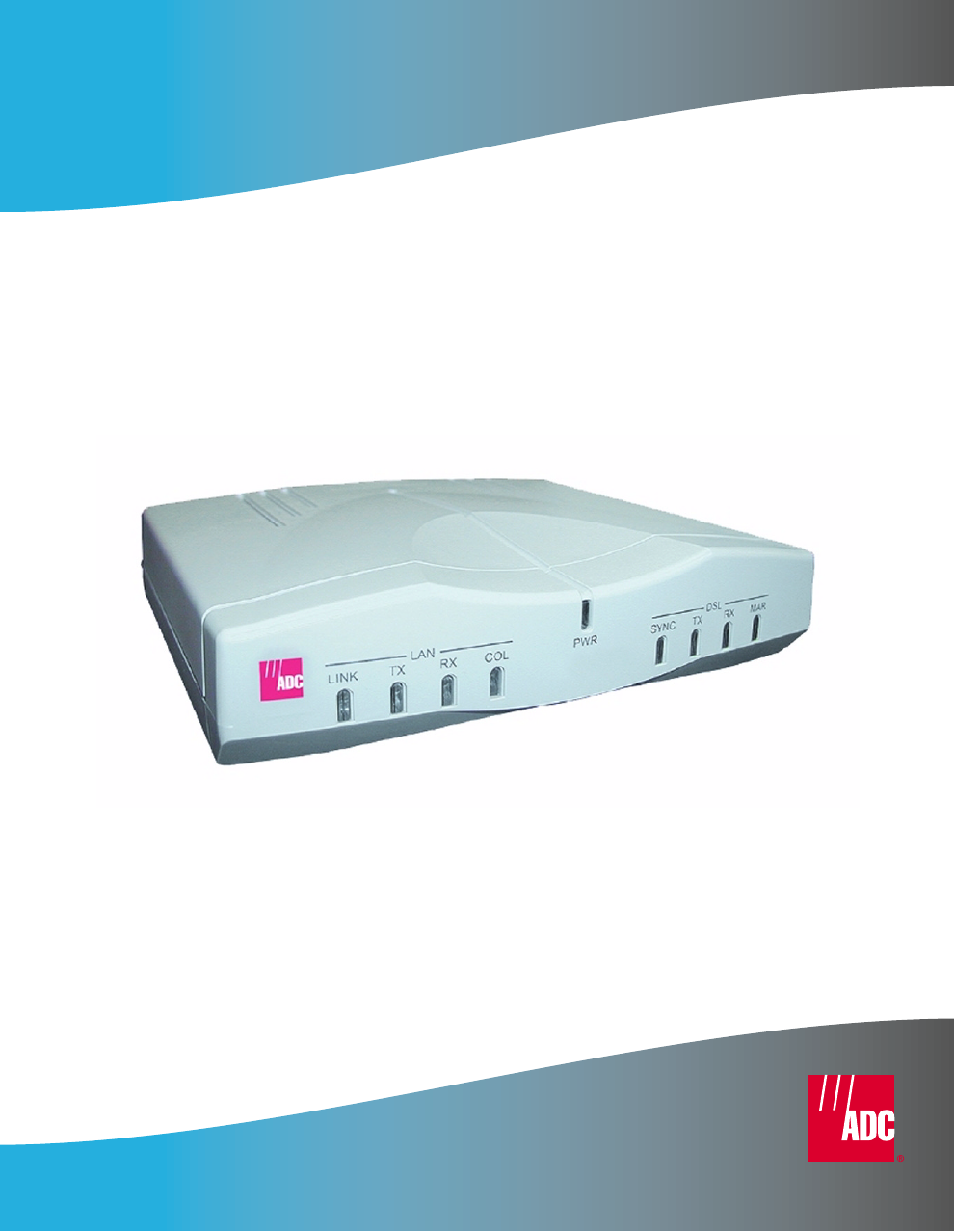

Megabit Modem MM701F User Manual Version 1.
Copyright February 2002 ©Copyright 2002 ADC DSL Systems, Inc. All Rights Reserved. Information contained in this document is company private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC. Trademark Information ADC is a registered trademark of ADC Telecommunications, Inc. Avidia and Megabit Modem are registered trademarks and StarGazer, SwitchWare, and Skyrocket are trademarks of ADC DSL Systems, Inc.
About This User Manual ABOUT THIS USER MANUAL Use this manual to set up the MM701F modem. It provides instruction on: • installing the modem • configuring the modem • monitoring the modem • maintaining the modem DOCUMENT CONVENTIONS Notes contain information about special circumstances. Cautions indicate the possibility of equipment damage or personal injury.
Product Certifications PRODUCT CERTIFICATIONS FCC CLASS B COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Table of Contents TABLE OF CONTENTS Chapter 1: Overview ...............................................................................................................1 Verify Shipping Package Contents...................................................................................... 2 System Requirements ..........................................................................................................2 What To Do Next .............................................................................
Table of Contents Updating System Software ................................................................................................61 Viewing System Information.............................................................................................62 Rebooting the Modem .......................................................................................................63 Appendix A: Specifications ..............................................................................................
1 OVERVIEW The MM701F is a versatile, high speed modem that connects your LAN to one or more service providers. It employs ADSL technology for asymmetric rates up to 7.552 Mbps over single-pair wiring and allows for multiple management options, including an Status LEDs easy to use Web-based interface. In addition, the MM701F supports 32 simultaneous Bridge/Router or PPP sessions to the same or different service providers over its ADSL WAN interface.
Verify Shipping Package Contents VERIFY SHIPPING PACKAGE CONTENTS As you unpack the modem, inspect the contents for damage. If the equipment was damaged in transit, report it to the shipping company and to your sales representative.
INSTALLING THE MODEM 2 Perform the following installation procedures to install the modem: Section Setting the MDI/MDI-X Switch MM701F User Manual Page 4 Connecting the Cables 5 Checking LED Indications 6 What To Do Next 7 3
Setting the MDI/MDI-X Switch SETTING THE MDI/MDI-X SWITCH The MDI/MDI-X switch located on the modem rear panel allows you to connect a network device (such as a PC, hub, switch, or router) to the modem 10Base-T port. Set the MDI/MDI-X switch for the 10Base-T port to: 4 • MDI-X when connecting to a network device such as a PC with an Ethernet NIC card with a MDI port. • MDI when connecting to a device such as a hub, switch, or router with a MDI-X port.
Chapter 2: Installing the Modem CONNECTING THE CABLES After you’ve verified the shipping package contents, follow this procedure to physically set up your modem: 1 Turn off your computer. 2 Connect the cables to the modem rear panel as shown below. • grey phone cable for the DSL line port • black cable for the 10Base-T port • power cable for the modem Power connector See “Connecting to the Console Port” on page 42 for connecting the console cabling.
Checking LED Indications CHECKING LED INDICATIONS Your service provider sets up the ADSL parameters for your service. The MM701F must have the DSL SYNC LED lit before you can connect sessions with your service provider. The table below describes LED indications for all operational modes. LEDs on the MM701F front panel provide continual status at-a-glance for network connections. LED State Description POWER On green MM701F has power. Off MM701F does not have power.
Chapter 2: Installing the Modem WHAT TO DO NEXT After you have installed the modem, determine which method to use to manage the modem: • To manage the modem through the Web interface using your Web browser (recommended), refer to Chapter 3 “Managing the Modem Using a Web Browser” on page 9. • To manage the modem through the command-line interface using the modem console port or by a telnet session, refer to Chapter 4 “Managing the Modem Using the Console Port & Telnet” on page 41.
What To Do Next 8 MM701F User Manual
MANAGING THE MODEM USING A WEB BROWSER 3 You can manage the MM701F using a Web browser, console port, or a telnet session. All of the MM701F features and functionality are accessible through the Web interface. In contrast, there are some features not supported through the console port. For example, you can enable or disable spanning tree through the Web interface, but not through the console port or telnet.
Setting Up the PC SETTING UP THE PC To access the modem Web interface, connect your PC to the same LAN IP subnet as the MM701F. The default LAN IP subnet for the modem is 10.0.0.0 with a subnet mask of 255.255.255.0. In addition, the modem uses 10.0.0.1 as its default LAN IP address. However, if you have an existing subnet to accommodate the modem, change the IP address of the modem from the command-line interface as described in “Setting Up the LAN” on page 48.
Chapter 3: Managing the Modem Using a Web Browser 4 Do one of the following: • If DHCP server has not been enabled on the modem (default), select Specify an IP address. • If DHCP server has been enabled on the modem, select Obtain an IP address automatically and skip to step 6. 5 Enter IP Address and Subnet Mask. The default modem LAN IP address is 10.0.0.1 with a subnet mask of 255.255.255.0. Use an IP address for your PC between the range of 10.0.0.2 to 10.0.0.254.
Configuring the Web Browser CONFIGURING THE WEB BROWSER To view the modem Web pages properly, your Web browser must have the proxies disabled and cache settings enabled to compare the cached document against the network document every time it is accessed. The following is an example of how to make the configuration changes using Netscape Navigator 4.0. 12 1 Open your Web browser. 2 Click Edit, Preferences to open the Preferences dialog.
Chapter 3: Managing the Modem Using a Web Browser The following is an example of how to make the configuration changes using Internet Explorer 5.5: 1 Open your Web browser. 2 Click Tools, Internet Options to open the Internet Options dialog. 3 In the Temporary Internet Files section of the dialog, click Settings. 4 Select Every visit to the page, then click OK.
Configuring the Web Browser 14 5 Click the Connections tab, then click LAN Settings to open the LAN Settings dialog. 6 In the Proxy Server section of the dialog, clear the Use a proxy server box. 7 Click OK to close the LAN Settings dialog. 8 Click OK to close the Internet Options dialog.
Chapter 3: Managing the Modem Using a Web Browser ACCESSING THE MODEM WEB PAGES Type http://10.0.0.1 in the Location Bar field of the Web browser (as shown below), then press Enter to display the MM701F Web pages. http://10.0.0.1 Location Bar The following login screen displays. This login is for the system administrator responsible for configuring and managing the MM701F. Enter the default username (admin) and password (password), then click Login.
Managing the System MANAGING THE SYSTEM The System pages are designed so that you can manage, update, and troubleshoot the modem as a whole.
Chapter 3: Managing the Modem Using a Web Browser View Modem Status The System Status page is a read-only summary of the current modem configuration. It includes information about the modem software, DSL configuration values, WAN session settings, and LAN parameters. Use it as an overview of the modem status. You cannot change the Device Name.
Managing the System Refer to the following table for a description of the fields: Parameter Description Device Name Descriptive role of the modem. This is not configurable. Model Megabit Modem model number. DSP Version Version of the Digital Signal Processor of the modem. Firmware Revision Version number of the image downloaded to the modem. DSL Status Fields Configuration values specific to ADSL. Modulation ADSL standard (Multi Mode, T1.413, G.DMT, or G.Lite) in the current configuration.
Chapter 3: Managing the Modem Using a Web Browser Set Spanning Tree Spanning Tree eliminates loops in a LAN topology, ensuring that there is only one path (or link) between any two nodes on a network. Use Spanning Tree protocol only when you have already selected a Bridge session (as described in “Set Up WAN Sessions” on page 23) and when your LAN has more than one device (a PC only) on your LAN and those devices have more than one physical path connecting them.
Managing the System Set Login Name and Password You can change the login parameters for the system administrator. The default login name is admin and the default password is password. 1 Select System on the menu bar then click Password to access the System Password page. 2 Enter the Current Login name then enter the Current Password. 3 Enter the New Login Name then enter the New Password. 4 Enter the new password again to Confirm New Password. 5 Click Submit.
Chapter 3: Managing the Modem Using a Web Browser Update System Software You can upgrade the software on your MM701F. To upgrade, you must specify the IP address of the server where the new software is stored. The MM701F uses TFTP to download the software which comprises a configuration file (must be named “celsiancfg”) and an image file (must be named “image”). The software update process takes about 90 seconds to complete. After the update the modem resets itself.
Managing the System Set to Factory Defaults When you configure the MM701F, you change the factory default settings to new values. You can return these parameters to their default values to provide a known starting point if you are troubleshooting or you simply want to configure new parameters. For session default values, see “Default Session Parameter Values” on page 70. Active links are lost when you reset to factory default values.
Chapter 3: Managing the Modem Using a Web Browser CONFIGURING THE WAN This configuration sets up the communication between the MM701F and the service provider for each session you set up. Set Up WAN Sessions 1 Select WAN on the menu bar to access the Session Configuration page. 2 Select a session from the [Sessions] list. The configuration options for that session appear in the Session X table (where X equals the Session number).
Configuring the WAN 3 Configure the following parameters for each session you set up, as defined in the following table. Parameter Description Session Name Enter a unique, descriptive identifier for the session. This name can have a maximum of 15 characters with no spaces. Protocol Select the message format to be used between the MM701F and the service provider. You can configure each session with any of the three protocols listed below.
Chapter 3: Managing the Modem Using a Web Browser Parameter Description RIP Send Routing Information Protocol (RIP) dynamically routes packets sent from the MM701F to the service provider. Select the same RIP version that is used by the service provider: • Select Disable if you selected RFC1483 - Bridge protocol. • Select RIP1 to send broadcast packets from the MM701F. • Select RIP2 to send multicast packets from the MM701F.
Configuring the WAN Parameter Description Login Name A PPP session requires a Login Name that is supplied by the service provider. Login Password A PPP session requires a Login Password that is supplied by the service provider. Authentication Select the authentication protocol provided by your service provider for PPP sessions. The authentication protocol type must match at the MM701F and the service provider.
Chapter 3: Managing the Modem Using a Web Browser CONFIGURING THE LAN This configuration sets up the communication between your LAN and the MM701F. 1 Select LAN on the menu bar to access the LAN Settings page.
Configuring the LAN 2 Configure the following parameters: Parameter Description LAN Protocol Select the message format to be used for your LAN. • Select Bridge if the LAN forwards packets based on MAC addresses. If you selected RFC 1483 Bridge protocol for the WAN sessions (page 23), select Bridge for the LAN traffic. • Select Router if the LAN routes packets based on IP addresses. If you selected RFC 1483 Router or PPP protocol for the WAN sessions (page 23), select Router for the LAN traffic.
Chapter 3: Managing the Modem Using a Web Browser Parameter Description DHCP Gateway Enter the IP address of the default gateway that is provided by the LAN administrator for devices on the LAN. The MM701F must be configured as a DHCP server and provides this gateway IP address to requesting DHCP clients (such as PCs) on the LAN. DNS Server Enter the IP address of the Domain Name System (DNS) server that is provided by either the service provider or the LAN administrator.
Managing DSL MANAGING DSL Select either the DSL quick configuration or the advanced configuration as directed by your service provider. DSL Quick Configuration You can configure the MM701F to comply with different standards for DSL transmission. For the quick configuration, you only select the transmission type. 1 30 Select DSL on the menu bar then select ADSL Quick Config under [ADSL Options].
Chapter 3: Managing the Modem Using a Web Browser 2 3 Select one of the following options as directed by your service provider: • Multi Mode: Multi-vendor version of T1.413 line code based off of the ANSI standard. • T1.413: ANSI standard ADSL line code supporting full-rate transmission. • G.DMT: ITU standard ADSL line code supporting full-rate transmission. • G.lite: ITU standard ADSL line code that is a simplified version of G.dmt allowing up to 1.536 Mbps downstream and 512 Kbps upstream.
Managing DSL DSL Advanced Configuration You can configure the MM701F to comply with different standards for ADSL transmission as well as parameters. 1 32 Select DSL on the menu bar then select DSL Advanced Config under [ADSL Options].
Chapter 3: Managing the Modem Using a Web Browser 2 Configure the following parameters as supplied by your service provider: Parameter Description ADSL Standard for physical layer interface Select from the options: • ITU G.992.2 G.lite • ITU G.992.1 G.DMT (default) • ANSI T1.413 Issue 2 • Multimode Trellis Encoding Enable or Disable (default) Trellis Encoding. Trellis Encoding allows for high data speeds and reduces transmission errors.
Managing DSL Test DSL The MM701F has embedded diagnostics used for detecting line problems or as an aid in troubleshooting line related technical problems. These diagnostics are described in “Testing the DSL Line” on page 58. These diagnostic programs have significance only to technical support personnel. 34 1 Select DSL on the menu bar then select Spectrum Tests to access the ADSL Test page. 2 Select a test from the menu. 3 Do one of the following: • Click Start to begin the test.
Chapter 3: Managing the Modem Using a Web Browser View Link Statistics Use the ATM statistics on the DSL Link Statistics page for troubleshooting and monitoring ATM traffic. 1 Select DSL on the menu bar then select Link Statistics to access the DSL Link Statistics page.
Managing DSL 2 View the updated real-time statistics. ADSL Statistical Parameter Description Operational State Valid entries are: • Handshaking—the transceiver is exchanging or attempting to exchange information necessary to start up. • Training—the transceiver is in the process of starting up. • Show Time—the transceiver has started up, trained, and is capable of passing user data. 36 Coding Gain (dB) Coding gain is the expected improvement or gain due to trellis/RS coding.
Chapter 3: Managing the Modem Using a Web Browser View Error Counters Use the ATM statistics on the DSL Error Counters page for troubleshooting and monitoring ATM traffic. 1 Select DSL on the menu bar then select ADSL Counters to access the ADSL Counters page.
Managing DSL 2 38 View the statistics. ADSL Parameter Description Local RS Interleaved Count of local Reed Solomon forward error correction for the interleaved data stream. Local RS Fast Count of local Reed Solomon forward error correction for fast stream. Local CRC Interleaved Count of local Cyclic Redundancy Check (CRC) anomalies for interleaved data stream. Local CRC Fast Count of local CRC anomalies for fast data stream. Local Loss of Signal Count of local loss of signal defects.
Chapter 3: Managing the Modem Using a Web Browser SAVING CHANGES Use the Save Changes page for saving your current configuration to flash memory. This option immediately writes all current system configuration to permanent memory (NVRAM). You cannot selectively write configuration to NVRAM. When you issue the save command, all current configuration is written to NVRAM. 1 Select Save Changes on the menu bar to access the Save Changes page.
Rebooting the Modem REBOOTING THE MODEM Before you reboot the modem, make sure you have saved any configuration changes as described in “Saving Changes” on page 39. 1 Select Reboot on the menu bar to access the Reboot page. 2 Do one of the following: • Click Yes to reboot the modem. • Click No to cancel the rebooting process. It is unlikely that the modem will lock up (no response to any of your requests through the Web interface and command-line interface).
MANAGING THE MODEM USING THE CONSOLE PORT & TELNET 4 You can manage the MM701F using a Web browser, console port, and telnet session. In comparison, you can manage more of the modem’s functionality using a Web browser rather than using the modem console port and telnet access. For example, you can enable or disable spanning tree through the modem Web interface, but not through the console port or telnet. The same applies for deleting a WAN session and selecting ATM VBR as a quality of service.
Connecting to the Console Port CONNECTING TO THE CONSOLE PORT 1 Install the supplied grey console cable between the modem Console port and your PC as shown below.
Chapter 4: Managing the Modem Using the Console Port & Telnet Currently, Windows includes a terminal emulation program called HyperTerminal. In Windows 98, access it from the Windows desktop by clicking Start, Programs, Accessories, HyperTerminal. Once you have established communication, the Main Menu page displays.
Setting Up a Telnet Session SETTING UP A TELNET SESSION Make sure your PC is on the same IP subnet as the modem as described in “Setting Up the PC” on page 10. To set up a telnet session, specify the LAN IP address of the modem to establish communication. The default LAN IP address is 10.0.0.1. If this IP address has changed, contact your network administrator. You cannot manage the modem through the console port and a telnet session at the same time.
Chapter 4: Managing the Modem Using the Console Port & Telnet SETTING UP THE WAN For Bridge or Router mode you need to set the WAN VPI/VCI as supplied by your service provider. 1 From the Main Menu, select WAN Setup. The WAN Session screen displays. . Session group 1 - 16 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17.
Setting Up the WAN 2 Select a session by typing the session number at the Select session for editing prompt to display the WAN Session Options screen. 1. 2. 3. 4. 5. 6. 7. 8. 9. Session Name WAN Protocol State IP Addressing IP Address IP Net Mask NAT RIP Send RIP Accept Bridge RFC1483 Bridge Enabled N/A N/A N/A N/A N/A N/A 10. 11. 12. 13. 14. 15. 16. 17. 18.
Chapter 4: Managing the Modem Using the Console Port & Telnet Valid values for the parameters shown on the Sessions Options screen are defined in the following table. Unless there is a special circumstance, the default values for the remaining parameters should not be changed. Session Parameter Valid parameter Values Session Name The name assigned to the session by your service provider—up to 15 characters. WAN Protocol RFC1483-Router, RFC1483-Bridge, PPPoA. State Enable or Disable a session.
Setting Up the WAN SETTING UP THE LAN If you are operating in Router mode and in a LAN environment, then you also need to set your LAN protocol, Ethernet Port IP address, and subnet mask. If you prefer, you may use the default values of 10.0.0.1 for the Ethernet Port IP Address, and 255.255.255.0 for the subnet mask. 1 From the Main Menu, select LAN Setup. The LAN setup screen displays. LAN 1. 2. 3. 4. 5. 6. 7. 8. 9. 10.
Chapter 4: Managing the Modem Using the Console Port & Telnet Valid values for the parameters shown on the LAN Setup screen are defined in the following table. LAN Parameter Valid parameter Values LAN Protocol Select the message format to be used for your LAN. • Select Bridge if the LAN forwards packets based on MAC addresses. If you selected RFC 1483 Bridge protocol for the WAN sessions, select Bridge for the LAN traffic. • Select Router if the LAN routes packets based on IP addresses.
Setting Up the WAN LAN Parameter Valid parameter Values DHCP Range Low Address Enter the IP address supplied by your LAN administrator. This is the lowest IP address value that the MM701F can serve when configured as a DHCP server. DHCP Range High Address Enter the IP address supplied by your LAN administrator. This is the highest IP address value that the MM701F can serve when configured as a DHCP server.
Chapter 4: Managing the Modem Using the Console Port & Telnet 5 Type 9 to enter the DNS address that is provided to the requesting DHCP client—only if you are operating in server mode. This IP Address is also available from your LAN administrator. 6 Type 10 to select Apply. Apply immediately activates the changes that you have made for this session. 7 From the Main Menu, select Save New System Configuration to save these settings or the changes will be lost upon reboot or power cycle.
Managing DSL MANAGING DSL Use the DSL menu to manage the DSL line. This menu allows you to: • view the DSL configuration • configure the DSL line • monitor the DSL statistics • test the DSL line Main Menu 1. 2. 3. 4. 5. 6. 7. 8. WAN Setup LAN Setup DSL Restore Factory Configuration Save Current Configuration System Update System Information Reboot Select -> Viewing the DSL Configuration 1 From the Main Menu, type 3 to elect DSL. The ADSL Menu displays.
Chapter 4: Managing the Modem Using the Console Port & Telnet Quick Configuration From the ADSL Standard page, select one of the following: • Multimode: Multi-vendor version of T1.413 line code based off of the ANSI standard. • T1.413: ANSI standard ADSL line code supporting full-rate transmission. • G.DMT: ITU standard ADSL line code supporting full-rate transmission. • G.lite: ITU standard ADSL line code that is a simplified version of G.dmt allowing up to 1.
Managing DSL The table below describes each of the parameters displayed in the ADSL Current Settings screen: 54 ADSL Parameter Description Standard May be either ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite) or Multimode. Trellis Indicates whether Trellis coding is enabled or disabled. Trellis Encoding allows for high data speeds and reduces transmission errors. BinOverlapMode Valid options are FDM or Echo Cancellation. TxPwrAtten The current transmit power attenuation level.
Chapter 4: Managing the Modem Using the Console Port & Telnet Monitoring the DSL Statistics Use the ADSL Statistics page to monitor the following types of DSL statistics: • General Statistics • Error Counters Viewing General Statistics 1 From the Main Menu, type 3 to select DSL and access the ADSL Menu. 2 Select ADSL Statistics, type 4 to access the ADSL Statistics page. 3 Select ADSL General Statistics, type 1 to access the ADSL General Statistics page. ADSL General Statistics 1. 2. 3. 4. 5. 6.
Managing DSL 4 View the updated real-time statistics. ADSL Statistical Parameter Description OperationalState Valid entries are: • Handshaking—the transceiver is exchanging or attempting to exchange information necessary to start up. • Training—the transceiver is in the process of starting up. • Show Time—the transceiver has started up, trained, and is capable of passing user data. 56 CodingGain (dB) Coding gain is the expected improvement or gain due to trellis/RS coding.
Chapter 4: Managing the Modem Using the Console Port & Telnet Viewing Error Counters 1 From the Main Menu, select DSL to access the ADSL Menu. 2 Select ADSL Statistics to access the ADSL Statistics page. 3 Select ADSL Counters to access the ADSL Counters page. ADSL Counters 1. 2. 3. 4. 5. 6. 7. 8. 9. 10.
Managing DSL Testing the DSL Line The MM701F has embedded diagnostics used for detecting line problems or as an aid in troubleshooting line related technical problems. These programs are used by technical support personnel to diagnose problems and determine the appropriate solutions. 1 From the Main Menu, select DSL to access the ADSL Menu. 2 Select Hardware/Line Diagnostics to access the ADSL Hardware/Line Diagnostics page.
Chapter 4: Managing the Modem Using the Console Port & Telnet RESTORING FACTORY DEFAULTS When you configure the MM701F, you change the factory default settings to new values. You can return these parameters to their default values to provide a known starting point if you are troubleshooting or you simply want to configure new parameters. Active links may be lost when you reset to factory default values.
Saving the Current Configuration SAVING THE CURRENT CONFIGURATION Use the Save Current Configuration page for saving your current configuration to flash memory. By saving your configuration changes, your changes will not be lost by resetting the modem. 1 From the Main Menu, select Save Current Configuration to access the Save Current Configuration page. WARNING - This will overwrite configuration 1. Continue 2.
Chapter 4: Managing the Modem Using the Console Port & Telnet UPDATING SYSTEM SOFTWARE You can upgrade the firmware on your MM701F. To upgrade, you must specify the IP address of the server where the new firmware is stored. 1 Configure a TFTP server to download the system software. The MM701F uses TFTP to download the firmware which comprises a configuration file (must be named “celsiancfg”) and an image file (must be named “image”) located on the TFTP server.
Viewing System Information VIEWING SYSTEM INFORMATION The System Information page is a read-only summary of the current modem configuration. It includes information about the firmware release, model, release date, MAC address, and DSP version. This information is often used by technical support when troubleshooting. From the Main Menu, select System Information to access the System Information page. System Information 1. 2. 3. 4. 5. Firmware Release Model Release date MAC address DSP version 1.1.6.
Chapter 4: Managing the Modem Using the Console Port & Telnet REBOOTING THE MODEM Before you reboot the modem, save configuration changes as described in “Saving the Current Configuration” on page 60. 1 From the Main Menu, select Reboot to access the Reboot page. WARNING - This will reboot without saving configuration 1. Continue 2. Cancel Select (Return to exit) -> 2 Do one of the following: • Type 1 to Continue the reboot process. • Type 2 to Cancel the reboot process.
Rebooting the Modem 64 MM701F User Manual
SPECIFICATIONS A The MM701F is a DSL CPE modem that takes advantage of ADSL technology by offering full-rate data transmission at a maximum downstream rate of 7.552 Mbps and a maximum upstream rate of 928 Kbps. In addition, the MM701F also provides: • sessions for precise control of security, performance and management of users and resources per session.
Overview OVERVIEW The MM701F provides: 66 • compliance with full-rate ADSL (ITU G.dmt or ANSI T1.413i2) and ITU G.lite standards • rates up to 7.552 Mbps downstream/928 kbps upstream for full rate • rates up to 1.5 Mbps downstream/512 kbps upstream for G.
Appendix A: Specifications DATA SPECIFICATIONS DSL Standards • ADSL (G.dmt, G.lite, T1.413, and Multimode) ATM standards • ATM Forum UNI Version 3.1 and UNI Version 4.0 • ITU-T Q.2931, Q.2971 signaling • ITU I.363.5 ATM Adaptation Layer 5 • ITU I.432 Cell Delineation and HEC • ITU I.
Data Specifications WAN Protocols • IETF RFC 2364 PPP over AAL5 (VC multiplexing and LLC encapsulation) • IETF RFC 1483 Multiprotocol encapsulation over AAL5 • IETF RFC 1577 Classical IP over ATM Security • PPP authentication - PAP/CHAP: 1334, 1994 • Web and Telnet password Management • Embedded SNMP agent, Terminal, Telnet with Web based configuration and management tool • Auto provisioning extensions • ILMI, OAM F4 and F5 support • Concise MIB: 1212, MIB-II: 1213, Traps: 1215, Bridge MIB
Appendix A: Specifications Encapsulation When you activate RFC 1483 system mode, you can select WAN encapsulation as VC multiplexing for some sessions and LLC encapsulation for other sessions. PPP Authentication (PAP/CHAP) Provides authentication of PPP sessions for security through Password and Challenge-Handshake Authentication Protocols (RFC 1994).
Data Specifications MIBs • Bridge MIB - 1493 • SNMP MIBs - 1471, 1472, 1473, 1474 • MIB 1213 - MIB II • MIB 1215 - Trap Default Session Parameter Values Session Parameter Bridge IPoA Router PPP-Router Protocol RFC1483 - Bridge RFC1483 - Router PPPoA State Enable Enable Enable IP Address N/A 10.0.0.1 N/A (Dynamic) Subnet Mask N/A 255.255.255.
Appendix A: Specifications HARDWARE SPECIFICATIONS LED • Power • Ethernet: Link, Tx, Rx, Collision • DSL: Sync, Tx, Rx, Margin Connectors • DSL Interface: RJ-11 • 10Base-T: RJ-45 • Console Port: RJ-45 (serial connection to RS-232 for local configuration) LAN Interface • 10Base-T (IEEE 802.
Hardware Specifications WAN Interface ADSL (Asymmetrical Digital Subscriber Line) Maximum transmission rate: Downstream 7552 kbps 928 kbps Upstream Minimum transmission rate to sync 64 kbps Connector RJ-11 ATM (Asynchronous Transfer Mode) 72 ATM Adaptation Layer AAL5 (ITU I.363.5) - Supports encapsulation and de-encapsulation of AAL5 Protocol Data Units (PDUs) for convergence. Segmentation and Reassembly (SAR) layer segments and reassembles AAL5 PDUs into ATM cells that are 48 byte SAR-PDUs.
Appendix A: Specifications Connector Pinouts The following sections provide the pinout information for the various modem connectors. DSL Port (RJ-11) The following table shows the signal on each pin of the DSL port. The connector for this interface is an RJ-11. See “Connecting the Cables” on page 5 for the location of this port.
Hardware Specifications Console Port (RJ-45) The following table gives the signal designations and pin numbers for each end of the RJ-45 to RS-232 cable that is used between the modem Console port (RJ-45) and the PC Serial port (DB-9).
TECHNICAL ASSISTANCE AND RETURNS B TECHNICAL SUPPORT Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical Assistance Center (TAC). • Telephone: 800.638.0031 714.730.3222 • Fax: 714.730.2400 • Email wsd_support@adc.com A Customer Service Engineer answers technical assistance calls Monday through Friday between 7:30 AM and 5:30 PM, Pacific Time, excluding holidays.
Knowledge Base KNOWLEDGE BASE The ADC Knowledge Base can help you locate answers to frequently asked questions on a variety of topics, including: • troubleshooting • installation • configuration • upgrades The Knowledge Base can be found at: http://www.adc.com/Knowledge_Base/index.jsp using any Web browser.
GLOSSARY C 10Base-T The Institute of Electrical and Electronic Engineers (IEEE) 802.3 specification for Ethernet over thin coaxial cable. AAL2 ATM Adaptation Layer 2. Used for compressed voice and video that is intolerant of delay. This layer is used by xDSL technology. AAL5 ATM Adaptation Layer 5. AAL5 has been adopted by the ATM Forum from a Class of Service called High Speed Data transfer. It typically supports all types of data traffic. Originally designed to support TCP/IP.
78 community string A text string required for an SNMP trap to be received by a trap receiver(s). Also, a text string that identifies an SNMP community and is associated with specific access rights (read-only or read/write). CRC Cyclic Redundancy Check is a method used to verify the accuracy of data transmission. downstream traffic Communications from a service provider to a user.
Appendix C: Glossary MIB Management Information Base is a set of variables that define the configuration and status parameters for network management. Network management stations can retrieve information from and write information to an MIB. The Internet Engineering Task Force (IETF) specifies standard MIBS for certain types of devices, ensuring any NMS can manage the devices. Vendors can specify proprietary MIBs for their devices to fit specific needs.
80 RIP Routing Information Protocol allows routers to update the routing tables automatically (for example with information such as how many hops between destinations). The version of RIP you select for the session must match the version supported by the service provider. Versions RIP1 and RIP-1 compatible are used for broadcast. Version RIP 2 is used for multicast. SEF Severely Errored Frames is the incoming signal has at least four consecutive errored framing patterns.
Appendix C: Glossary UDP User Datagram Protocol is a transport protocol used to map inbound traffic (from a remote IP address) to an internal (LAN) IP address. Uses a protocol port number for the destination at the remote location. upstream traffic Communications from a user to a service provider. VCI Virtual Channel Identifier is a 16-bit field addressing identifier in the header of an ATM cell used to route cell traffic. It identifies a particular VC link for a given VP.
82 MM701F User Manual
Numerics connecting cables 4 10Base-T console port 42 connector pinouts 73 connector pinouts 73 description 77 A console port 74 connecting to 42 accessing modem web pages 15 managing modem 41 adaptation layer 72 counters, errors 57 ADSL, specifications 72 D advanced configuration 53 ATM Data Specifications 67 adaptation layer 72 Default Session Parameter Values 70 cell format 72 defaults description 77 factory 59 max VCs 72 settings 22 specifications 72 DHCP 50 B bridging specific
F modem installing 3 factory defaults rebooting 40, 63 restoring 59 setting 22 modem status, viewing 17 file monitoring, DSL statistics 55 configuration 21, 61 image 21, 61 N NAT full duplex 10 configuring, CLI 51 G description 79 setting up 51 general statistics 55 I network interface card (NIC) 10 image file 21, 61 O overview 1 installing, modem 3 L LAN P package contents 2 configuring 27 password 20 setting up 48 Physical Specifications 71 troubleshooting 10 pinouts 73 login P
S saving support 75 system changes 39 managing 16 configuration 39 requirements 2 current configuration 60 updating software 21, 61 setting viewing information 62 factory defaults 22 login name 20 password 20 spanning tree 19 setting up LAN 48 NAT 51 telnet 44 WAN 45 WAN sessions 23 shipping package contents 2 software, updating 21, 61 spanning tree, setting 19 specifications 65 ADSL 72 ATM 72 T technical specifications 65 technical support 75 telnet managing modem 41 setting up 44 testing DSL 34
V viewing error counters 37, 57 general statistcs 55 link statistics 35 modem status 17 system information 62 W WAN configuring 23 interface specifications 72 setting up 45 setting up sessions 23 warranty 75 web browser, configuring 12 web interface accessing 15 managing modem 9 86 MM701F User Manual
MM701F User Manual 87
