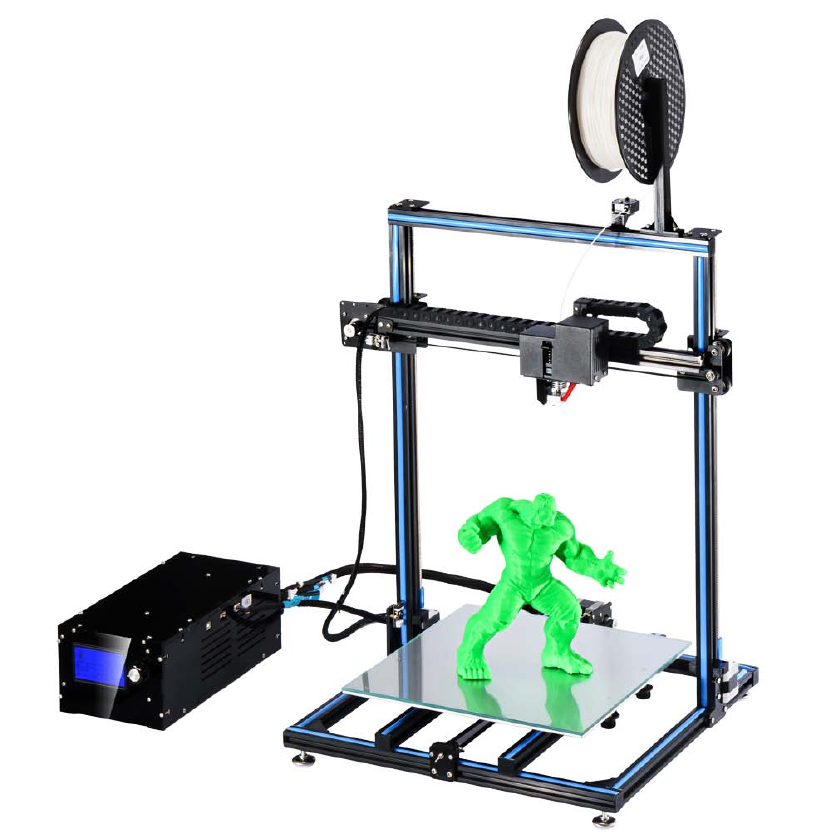

User Guide ADIMLab-gantry 3D printer Version V1.3.
Contents 一、 Overview ............................................................................................. 4 二、Thanks and Commitment .................................................................. 6 三、What is 3D Printer ............................................................................... 7 3.1 3D printing steps ................................................................................ 7 3.2 3D Modeling ..............................................................................
6.4 Select printing way .......................................................................... 34 6.5 Printing finish ................................................................................. 39 7、Printer operating .................................................................................. 39 7.1 Replace filament .............................................................................. 41 7.2Replace filament during printing ...................................................... 41 7.
一、Overview Thank you for your support of our company's products,the guidelines only apply to ADIMLab-gantry 3D printer. This guide is based on Win7 operating system.
* Place the printer on a flat solid platform 5
二、Thanks and Commitment Thanks Thanks for your purchase and support for ADIMLab-gantry 3D printer . You may also purchased our other 3D products or well understand 3D printing technology. But we still want you to read this guide, it contains a lot of important information about the use of the product so that customers get a better 3D experience. By reading and understanding of the operation, you can immediately start your first print.
三、What is 3D Printer? In short, 3D printers are used to three-dimensional computer model into real objects can be touched. The most common 3D printing technology is called FDM (Fused Deposition Modeling), namely melting precipitation manufacturing technology, ADIMLab-gantry belong to this one. The way it works is melted on the printing platform supplies plastic called high temperature. After cooling supplies curing, this process occurs at the instant it from the print head is pushed out .
way is to download from the website, which allows registered users to upload 3D models of their own design. (3) 3D Scanner Scanning the object is an alternative method of 3D modeling. 3D scanners to digitize items, collected its geometric data, then save it as a file stored on your computer. Install the appropriate App on your mobile device can be realized 3D scanning. 3.3 Slice output 3D model Slice software can translate 3D models into G-code that 3D printer can read.
Once the input file begins to run in ADIMLab-gantry, and it begins to pile up layer by layer so as to print the 3D model into an actual entity. 4.
1.Frame 2.Towline 3. Extruder 4.Slideron the right side of the axis 5.Nozzle 6.The print platform 7.Z-motor2 8.Foot pad9.Slideron the left side of the Z axis 10.X-endstop 11.Cooling fan12.Y axis the wheel stand axis pulley 16.X-motor 13.Z-endstop 14. Z-motor1 15.Y 17.Z-endstop mounting plate 18.Z -screw rod 19.Z axis screw 20.Coupling 21.
4.2Assembly and wiring （Please reference SD card file contents“2.Assembly and debugging tutorial”“HCmaker7Assembly instruction”1~2） 4.3 First time test the maker7 （Please reference SD card file contents“2.Assembly and debugging” “HCmaker7Assembly instruction”3） 4.3.
4.3.
4.4First time prepare printing: （Please reference SD card file contents“2.Assembly and debugging” “HCmaker7Assembly instruction”4） 4.4.
test shaft guide distance between the two ends and the base, Make the metal parts at both ends of the X-axis guide just touch the glue stick or print model. 4.4.2Leveling Heating Platform： (1) “Info screen” Press the knob，Rotate select“Prepare”,Click OK： (2) Select“Manual Bed Leveling”in Submenu，Click OK： (3) First printer will Perform homing，Then extruder moves to the first adjustment point in the lower left corner of the hot bed.
(4) Adjust the hand nut under the platform in turn so that the nozzle just touches the hot bed. Click after leveling“Back”。 4.4.3 First time test the maker7： （Please reference SD card file contents“2.
(2) Select“505020.
五、Slice software installation and configuration 5.1 Software copy Insert the SD card into the computer, SD card file "4. control software, Repetier-Host installation and introduction", there are various systems Repetier-Host control software installation package, You can copy the required installation to your computer. 5.2 Install control software（Take Win7 operating system as an example） (1) Please unzip the downloaded “setupRepetierHost_1_6_2.
(2) Using the desktop icons or start menu’s shortcuts to start the software . 5.3 Setting software： Users can use Repetier-Host software to control ADIMLab-gantry printer to print, you should set up control software, open Repetier-Host. 5.3.
(2) Choose language： 19
(3) Select Printer Settings： Choose their own corresponding serial port, such as: COM3, COM4 and so on (in the serial drop-down menu selection), in the drop-down menu set baud rate of 250000.
Set nozzle number “1”and extruder diameter “0.
Set printer shape，click“Apply”,“OK”：then close. 5.3.
(2)“Slic3r”Slicing software setting： (3)Select file to load configuration (slice settings on SD card 6.
(4) Save configuration (three items need to be saved) Click”Print Settings”，click“Save”button： Click“Filament Setting”，click“Save”button： 25
Click”Printer Settings”，Click“Save”button： Saved，Close the settings window，Slice setting finish！ 26
5.4Slic3r setting Slicing software basic configuration, here briefly introduces several important configuration (details please refer to SD card 7.
(3) FilamentSetting： (4) Printer Settings： 28
六、Start printing 29
6.1Get print model (common ways to download online and their own modeling, file formats, such as STL, AMF, etc.) 6.
(2) Setting ADIMLab-gantry slice parameter： click“Slicing software“button，select“Slic3r” Print setting：select“HCmaker7”; Printer setting：select“HCmaker7”; Filament setting：select“HCmaker7”; 31
(3) Click“Slice with Slic3r”button： 32
(4) Slicing completed： 6.3Install filament： One hand presses the lever first, the other hand advances the material. Note: consumables head can not be larger than the wire diameter, front end straightened, easier to insert supplies, supplies need to push to the bottom.
6.4Choose print method: online print or SD card offline print (recommended offline printing) 6.4.
(2) Click“Connect”，become green，It mean succed，click“Start Print”， star printing： 35
6.4.2 Offline printing： (1)Save file (Note: file names need to be saved as English letters or numbers) （Recommended to save the file to the computer first then copy it to the SD card.
(2) Slice file copy to SD card，Plug in the printer： 37
(3)“Info screen” click button，select“Print from SD”,click ok： (4) Select Slice file in Submenu,click ok： (5) Printer need preheating ，pls waite be patient： 38
(6) Preheating ok，star printing： 6.5Printing finish，take the model： After finish printing，waiting platform cooling,take the model（Lateral output makes it easier to remove the model）Observe, measure 七、Printer operating： 7.
(1)“Info screen” Press the button, rotate the button, and select the ready (2) Press the button, rotate the button, and select the ready (3) Rotate the button, drop the menu, and select preheat PLA: 40
(4) Preheat to a specified temperature (e.g., 195℃), Follow the steps below to replace filament. 7.
(2) Print paused，Nozzle move to the left-back position: (3) Press the lever to push the filament down one step and pull it out, reinsert the new consumables, click： (4) Extruder automatically extrude a piece of filament.
(5) click“Continue”： (6) Extruder back the printing position，continue printing： 7.3 Pause and resume printing： 7.3.
7.3.
(4) Extruder back the position and continues printing: 7.4 Stop printing： (1)“Info screen” click，select“Stop print”,click ok： (2)“Info screen” show“Print aborted” 7.
(2) Press the lever to push the filament down one step and pull it out, reinsert the new filament, and click (3)Extruder automatically extrudes a piece of filament： (4)Click“Continue”menu： 46
(5)Extruder back the printing position and continues printing： 7.
(3)Setting nozzle or hotbed temperature，click ok 7.7 Adjust printing speed： (1)“Info screen” rotate the knob，adjust speed： 8，Problem Solutions 8.1 Analysis common problem： （Please reference SD card file“9.Analysis common problem FAQ” “Common problem solutions”） 8.2 Protect heating： （Please reference SD card file“9.
9 Support and service Our all the staff will by your side all the time and we are happy to solve any problems you encountered in the use of ADIMLab-gantry process. If you can't find the answer from the user’s guide or technical card, you can enter into our official website to search for the solution, by the way, you can contact us by phone or facebook group. You can contact the maintenance team of the buildup team on Monday through Friday from 8:30 a.m. to 6:00 p.m.
