User Instructions

Fusion Tri FX Bar Introduction

©American DJ Supply® - www.americandj.com - Fusion Tri FX Bar - Page 2

Rev. 3/14

Unpacking: Thank you for purchasing the Fusion Tri FX Bar by Ameri-

can DJ®. Every Fusion Tri FX Bar has been thoroughly tested and has

been shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Do not return this unit to your dealer without rst contact-

ing customer support.

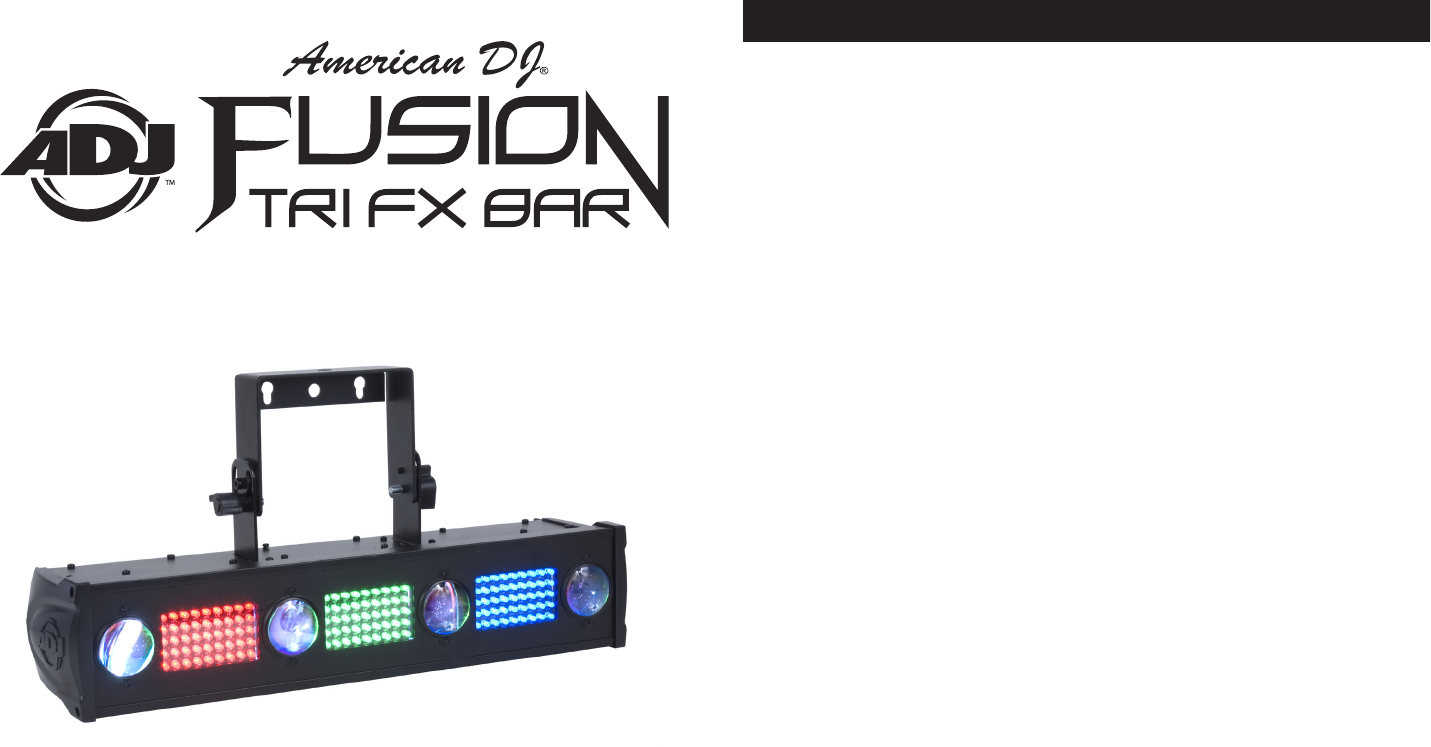

Introduction: The Fusion Tri FX Bar is part of American DJ’s continu-

ing pursuit for creating high quality affordable intelligent fixtures. The

Fusion Tri FX Bar is a DMX intelligent LED display fixture. This unit

can be used as a stand alone, or in a Master/Slave conguration. The

unit three operating modes; sound active mode, show mode, and DMX

control mode. This fixture is a great piece for retail stores, displays,

mood, architectural, interior and exterior decoration, and clubs.

Customer Support: American DJ® provides a toll free customer sup-

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

American DJ®.

PLEASE recycle the shipping carton when ever possible.

Summary of content (10 pages)

PAGE 1
Fusion Tri FX Bar Introduction Unpacking: Thank you for purchasing the Fusion Tri FX Bar by Ameri- can DJ®. Every Fusion Tri FX Bar has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
PAGE 2
Fusion Tri FX Bar General Instructions To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit, for future reference.
PAGE 3
POWER Fusion Tri FX Bar Set Up Fusion Tri FX Bar Notice: Be sure to follow figures two and three when making your own automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. cables. Do not use the ground lug on the XLR connector.
PAGE 4
Fusion Tri FX Bar System Menu Fusion Tri FX Bar System Menu On-Board System Menu. The Fusion Tri FX Bar comes with an easy to navigate system menu. This next section will detail the functions of each command in the system menu. Please read the next section thoroughly! To access the main menu press the MENU button. Tap the UP or DOWN buttons until you reach function you wish to change. When you reach the function you wish to change press the ENTER button.
PAGE 5
Fusion Tri FX Bar or on. System Menu Fusion Tri FX Bar System Menu three seconds to confirm. 1. Tap the MENU button until “SHND” is displayed, press ENTER. 2. “Sh X” will now be displayed, “X” representing a number between 116. Shows 1-16 are preset shows, while “Sh 0” is random show. Press the UP or DOWN buttons to find your desired show. 3. Press ENTER, and then press and hold the MENU button for at least 3 seconds to confirm. SOUN - In this mode you can run the unit in sound active mode 1.
PAGE 6
Fusion Tri FX Bar Operation Universal DMX Control: This function allows you to use a Elation® universal DMX-512 controller to control the chases and patterns, dimmer and strobe. A DMX controller allows you to create unique programs tailored to your individual needs. 1. The Fusion Tri FX Bar is a 8 DMX channel unit. See page 13 for a detailed description of the DMX traits. 2.
PAGE 7
Fusion Tri FX Bar Channel 1 2 3 4 ©American Value DMX Channels & Functions Function 0-9 10 - 19 20 - 29 30 - 39 40 - 49 50 - 59 60 - 69 70 - 79 80 - 89 90 - 99 100 - 109 110 - 119 120 - 129 130 - 139 140 - 149 150 - 159 160 - 169 170 - 179 180 - 249 250 - 255 CHASES & STROBE OFF CHASE 1 CHASE 2 CHASE 3 CHASE 4 CHASE 5 CHASE 6 CHASE 7 CHASE 8 CHASE 9 CHASE 10 CHASE 11 CHASE 12 CHASE 13 CHASE 14 CHASE 15 CHASE 16 CHASE 17 STROBING SLOW - FAST ON 0-9 10 - 49 50 - 89 90 - 129 130 - 169 170 - 209 210
PAGE 8
Fusion Tri FX Bar 12 Degree Lens To switch to the 12 Degree lens, simply unscrew and remove the phillips screws located above and below the lenses. After the screws have been removed, remove frame that holds the lens in place. Remove the lens and install the 12 Degree lens. Put the lens frame back into place, and replace the phillips screws to secure the frame and lens. Fusion Tri FX Bar Fuse Replacement Locate and remove the unit’s power cord.
PAGE 9
Fusion Tri FX Bar ©American Notes DJ Supply® - www.americandj.com - Fusion Tri FX Bar - Page 17 Fusion Tri FX Bar ©American Notes DJ Supply® - www.americandj.
PAGE 10
Fusion Tri FX Bar Specifications Model: Fusion Tri FX Bar SPECIFICATIONS: Voltage: 100V~240V 50/60Hz LEDs: 135 LEDs Total (45 Red, 45 Green, and 45 Blue Power Consumption: 32W Fuse: 7 Amp Power Cord Daisy Chain:19 Fixtures Max. Weight: 9lbs./ 3.7Kgs. Dimensions w/ Bracket: 21.25” (L) x 5.75” (W) x 10.
