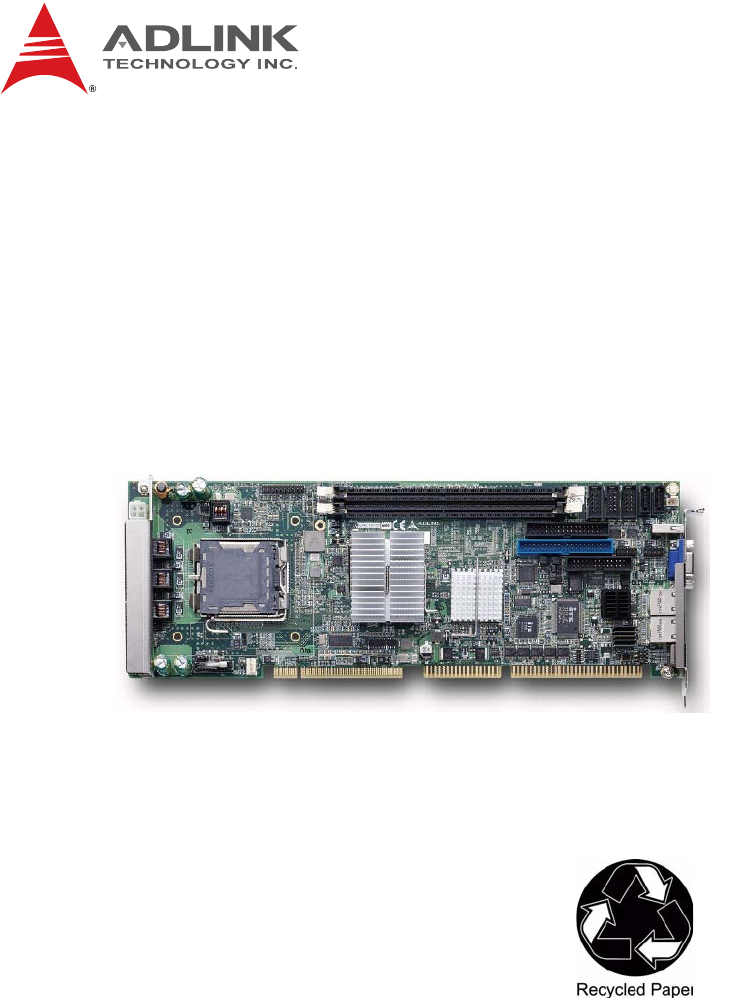

NuPRO-935A 1 Introduction 1.1 Overview The ADLINK NuPRO-935A is a PICMG 1.0 industrial SBC supporting the next-generation Intel® Core 2 Quad/Duo and Intel® Celeron® processors in the LGA775 package to deliver a high performance platform for a wide array of industrial automation applications. The NuPRO-935A supports processing speeds up to 3.0 GHz and high-bandwidth network connectivity with PCI Express®-based gigabit LAN.
1.3 Specifications System CPU/Cache • Intel® Core™2 Quad, Core™2 Duo, Celeron® in LGA775 Socket FSB • 800/1066/1333 MHz Chipset • Intel® 82Q35 Graphics Memory Controller Hub • Intel® ICH9 I/O Controller Hub Memory • Two 240-pin DIMM sockets support 667/800MHz DDR2 (up to 4GB) BIOS • AMI BIOS in 16-Mbit SPI Flash Audio • Intel® High Definition Audio support via DB-Audio2 daughter board Watch Dog Timer • 1-255 second or 1-255 minute programmable and can generate system reset.
NuPRO-935A VGA Display • GMA 3100 integrated in Q35 GMCH VRAM • Shared system memory up to 256 MB CRT • External Dsub-15 connector, resolution up to 2048 x 1536 @ 75 Hz Ethernet • Intel® 82566DM and Intel® 82573L (NuPRO-935A/LV supports 82566DM only) Controller • Two RJ-45 Ethernet ports (NuPRO-935A/LV supports 1x GbE) Ports Form Factor Mechanical and Environment • Standard full-size PICMG 1.0 SBC Dimensions • 338 x 122 mm (L x W) Operating Temp. • 0ºC to 60ºC Storage Temp.
1.4 Power Consumption Test Configuration CPU Intel® Core 2 Quad processor Q6600 2.40 GHz Memory Transcend DDR2 800 1GB x2 Graphics Intel ® 82Q35 Graphics Memory controller SATA Channel Seagate ST3808110AS Barracuda 7200.9 80GB Power Supply COOLMAX FL-480ATX 450W DOS (idle) Power Req. +5V +12V CPU +12V Total Current (A) 3.37A 367.9mA 3.24A — Watts (W) 16.87W 4.42W 38.88 60.17W Windows XP, Idle Power Req. +5V +12V CPU +12V Total Current (A) 3.203A 233,6mA 1.
NuPRO-935A 1.5 Block Diagram CPU Core™2 Quad/Duo Celeron® LGA775 package 800/1066/1333 MHz FSB Dual-Core Hyper-Threading 800/1066/1333 MHz FSB Northbridge DDR Channel A CRT DIMM x2 Intel® Q35 GMCH DDRII 667/800 MHz DB-15 DDR Channel B DMI Interface 2 GB/s Southbridge PCIe Controller SATA SATA ports x2 USB 2.0 (Bracket x1, Internal x4) USB 2.
1.6 Functional Description Processor Support The NuPRO-935A is a single processor design for the latest Intel Yorkfield/Wolfdale/Conroe Processor family, starting from 1.8 GHz core frequency with future option up to 3.0 GHz. With one LGA775 socket, the CPU connects with Intel Q35 MCH through the 800/1066/1333 MHz Front Side Bus (FSB). Intel® Q35 + ICH9 Express chipset The Intel® Q35 Express chipset provides the vital interfaces for the SBC.
NuPRO-935A Gigabit Ethernet The NuPRO-935A uses two Gigabit Ethernet controllers (Intel® 82566DM, 82573L) connected to the PCI-E x1 bus of the ICH9. 82566DM is a single port Gigabit Ethernet Physical Layer Transceiver (PHY) that connects to its MAC through a dedicated interconnects. Both 82566DM and 82573L support operation at data rates of 10/100/1000 Mbps. Utilizing its wide bandwidth, the Gigabit LAN controller allows up to 1 Gbps of data transfer rate for superior network communications.
timer caused the reset event. The WDT register is cleared during the power-on sequence to enable the operating system to take appropriate action when the watchdog generates a reboot. Trusted Platform Module The NuPRO-935A optionally supports TPM ver. 1.2 (Trusted Platform Module) for secure storage of keys, passwords and digital certificates.
NuPRO-935A 1.
1.8 I/O Connectivity I/O Bracket Onboard Golden Finger USB1 Y — — VGA Y — — GbE1 (RJ-45) Y (with LED indication) — — GbE2 (RJ-45) Y (with LED indication) — — PS/2 KB/MS1* Y — — — KB/MS — Y — 2.54 pitch USB2/3 — Y — 2.54 pitch Remarks DB-15 Act/Link/Speed Act/Link/Speed USB4/5 — Y — 2.54 pitch COM1/2 — Y — 2.
NuPRO-935A 1.9 Package Contents Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing materials for inspection. Obtain authorization from the dealer before returning any product to ADLINK.
This page intentionally left blank.
NuPRO-935A 2 Hardware Information This chapter provides information on the NuPRO-935A board layout, connector pin assignments, and jumper settings. 2.1 Rear Panel I/O Ports 2 1 3 4 5 Figure 2-1: Rear Panel I/O Ports Connector Description 1 PS/2 KB/MS port Connects a PS/2 mouse and keyboard1 2 Gigabit LAN port (RJ-45) Provides Gigabit Ethernet connection 3 Gigabit LAN port (RJ-45) Provides Gigabit Ethernet connection (not supported on NuPRO-935A/LV) 4 VGA port 5 USB 2.
PS/2 Keyboard/Mouse Port Pin # Signal Function 1 KBDAT Keyboard Data 2 MSDAT Mouse Data 3 GND Ground 4 KBMS5V Power 5 KBCLK Keyboard Clock 6 MSCLK Mouse Clock For boards without a Mini-DIN PS/2 KB/MS connector, customers wishing to use a PS/2 type keyboard and mouse may purchase a PS/2 cable with bracket (P/N: 30-01019-2000) which connects to the External Keyboard/Mouse Connector (CN19).
NuPRO-935A LAN (RJ-45) Ports Pin # 10BASET/100BASE-TX 1000BASE-T 1 TX+ BI_DA+ 2 TX- BI_DA- 3 RX+ BI_DB+ 4 -- BI_DC+ 5 -- BI_DC- 6 RX- BI_DB- 7 -- BI_DD+ 8 -- BI_DD- Refer to the table below for the LAN port LED indications.
VGA Port Pin # 16 Signal 1 Red 2 Green 3 Blue 4 NC 5 Ground 6 Ground 7 Ground 8 Ground 9 +5 V 10 Ground 11 NC 12 DDC DAT 13 HSYNC 14 VSYNC 15 DDC CLK Hardware Information
NuPRO-935A 2.2 Board Layout The illustrations below show the locations of connectors, slots, and jumpers on the NuPRO-935A. 1 3 4 1 7 5 2 6 8 9 Figure 2-2: Connectors and Jumpers Pt.
10 11 12 13 14 17 18 15 16 20 19 21 22 23 Figure 2-3: Connectors and Jumpers Pt.
NuPRO-935A 2.3 Onboard Connectors ATX 12V Power Connector (CN7) Pin # NOTE: 2 1 4 3 Signal 1 GND 2 GND 3 +12V DC 4 +12V DC The ATX 12V power connector must be connected to provide sufficient power to the SBC in either ATX or AT modes . See “Installing the Power Connectors” on page 34.
IDE Connector (CN10) 20 Pin # Signal Pin # Signal 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 Reset IDE Host data 7 Host data 6 Host data 5 Host data 4 Host data 3 Host data 2 Host data 1 Host data 0 Ground DRQ0 / DRQ1 Host IOW Host IOR IOCHRDY DACK0 / DACK1 IRQ14 / IRQ 15 Address 1 Address 0 Chip select 0 Activity 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 Ground Host data 8 Host data 9 Host data 10 Host data 11 Host data 12 Host data 13 Host data 14 Host data 15 NC Ground
NuPRO-935A Floppy disk drive connector (CN8) Pin # Signal Pin # Signal 1 GND 2 Extended Density 3 GND 4 NC 5 NC 6 NC 7 GND 8 Index 9 GND 10 Motor A Select Hardware Information 11 GND 12 NC 13 GND 14 Drive A Select 15 GND 16 NC 17 GND 18 Step Direction 19 GND 20 Step Pulse 21 GND 22 Write Data 23 GND 24 Write Gate 25 GND 26 Track 0 27 GND 28 Write Protect 29 GND 30 Read Data 31 GND 32 Side 1 33 GND 34 Disk Change 21
Parallel Port (CN13) Pin # Signal Pin # Signal 1 Line Printer Strobe 14 Auto-Feed 2 Parallel Data 0 15 Error 3 Parallel Data 1 16 Initialize 4 Parallel Data 2 17 Select 5 Parallel Data 3 18 Ground 6 Parallel Data 4 19 Ground 7 Parallel Data 5 20 Ground 8 Parallel Data 6 21 Ground 9 Parallel Data 7 22 Ground 10 Acknowledge 23 Ground 11 Busy 24 Ground 12 Paper Empty 25 Ground 13 Select 26 NC HD Audio Daughter Board Connector (CN4) Pin # Signal 1 GND
NuPRO-935A COM1 Connector (RS-422/485/485+) (CN6) Pin # Signal Functions 1 TX- Transmit (-) 2 NC Not Connected 3 TX+ Transmit (+) 4 NC Not Connected 5 RX+ Receive (+) 6 NC Not Connected 7 RX- Receive (-) 8 NC Not Connected 9 GND 10 NC Ground Not Connected Note: See Section 2.4 for COM1 mode jumper settings.
USB 2.0 Connector (CN11-12) Pin # Signal Pin # Signal 1 +5V 2 +5V 3 USB0- 4 USB1- 5 USB0+ 6 USB01+ 7 GND 8 GND 9 Key 10 NC External Keyboard/Mouse Connector (CN19) Pin # Signal Function 1 KDAT Keyboard data 2 KCLK Keyboard clock 3 MDAT Mouse data 4 MCLK Mouse data 5 P5V_KM 6 GND +5 V Ground For use with PS/2 cable with bracket (P/N: 30-01019-2000).
NuPRO-935A System Panel Connector (CN1) Connects to chassis-mounted buttons, speakers, and LEDs.
2.4 Jumpers COM1 mode Jumper Settings (JP1-4) Short the jumper pins according to the following settings to set COM1 to RS-232/422/485/485+ mode # RS-232 RS-422 RS-485 RS-485+ JP1 JP2 JP3 JP4 1-3, 2-4 1-3, 2-4 1-2 - 3-5, 4-6 3-5, 4-6 3-4 1-3, 2-4 3-5, 4-6 3-5, 4-6 5-6 1-3, 2-4 3-5, 4-6 3-5, 4-6 5-6 3-5, 4-6 Clear CMOS (JP5) The CMOS RAM data contains the date / time and BIOS setting information. CMOS is powered by the onboard button cell battery.
NuPRO-935A 3 Getting Started This chapter provides information on how to install components on the NuPRO-935A SBC. 3.1 Installing the CPU The NuPRO-935A supports a single Intel® Core™2 Quad/Duo, Pentium® D, or Celeron® processor via the surface mount LGA775 socket (Socket T). WARNING: Disconnect all power supply to the board before installing a CPU to prevent damaging the board and CPU. Do not touch socket contacts. Damaging the contacts voids the product warranty.
2. Lift and rotate the load lever to a 135° angle 3. Lift the load plate to a 100° angle using your thumb and forefinger 4.
NuPRO-935A 5. Position the CPU over the socket, then match the notches on the CPU side with the alignment keys on the socket. The golden triangle on the CPU must be positioned on the bottom-left corner of the socket . Notch Golden triangle Alignment key The CPU fits the socket in only one orientation. DO NOT force it into the socket to avoid damaging it. WARNING: 6. Carefully place the CPU on the socket in a vertical motion. The socket has tabs that accommodate your fingers during installation .
7. Close the load plate (A), then fasten the load lever on the retention tab (B) .
NuPRO-935A 3.2 Installing the CPU Fan and Heatsink CAUTION: The CPU requires a chassis with an airflow inlet and maximum internal ambient temperature of 60° C. A especially-designed CPU fan and heatsink must be installed before using the SBC. Failure to install a CPU fan and heatsink may damage the system host board and/or the CPU. The following CPU fan and heatsink assemblies are recommended for use with the NuPRO-935A: 1U LGA 775 CPU Cooler Dimensions: • Heatsink: 92 x 87.
CPU Fan/Heatsink Installation When the CPU fan/heatsink installation procedures presented here are inconsistent with the installation procedures included with the CPU fan and heatsink package, follow the latter. To install the CPU fan/heatsink: 1. Attach the backplate included with the fan/heatsink to the bottom side of the SBC. If necessary, remove the paper strip(s) from the self-adhesive pads to secure the backplate to the SBC. 2.
NuPRO-935A 4. Connect the CPU fan cable to the CPU fan connector on the SBC labeled FAN2 (see “Board Layout” on page 16). Note: Do not use fan/heatsinks with push-pin type attachments. They may exert too much tension on the PCB and cause the board to flex, resulting in damage to the SBC. Holding the SBC with Fan/Heatsink Installed When the fan/heatsink is installed, always hold the SBC with two hands by the card edges.
3.3 Installing the Power Connectors Refer to Section 2.3 Onboard Connectors on page 18 for detailed information on connectors and pin definitions referred to below. ATX 12V Power Connector The NuPRO-935A requires +12V DC power connected to CN7 for proper operation in either ATX or AT modes . If necessary, order a ATX12V Convert Cable from ADLINK for use with Molex 4-pin power connectors (P/N 30-00006-0000).
NuPRO-935A 3.4 Installing Memory Modules The NuPRO-935A supports up to 4 GB of DDR2 800/667 MHz memory modules in two DDR2 DIMM sockets. A DDR2 module has a 240-pin footprint compared to the legacy 184-pin DDR DIMM. DDR2 modules are notched to facilitate correct installation on the DIMM sockets. WARNING: Disconnect all power supply to the board before installing a memory module to prevent damaging the board and memory module .
3. Align the memory module on the socket making sure that the notch matches the break on the socket. Notch Break 4. Insert the module firmly into the slot until the retaining clips snap back inwards and the module is securely seated.
NuPRO-935A 4 Driver Installation This chapter provides information on how to install the NuPRO-935A device drivers under Windows XP/Vista. The device drivers are located in the following ADLINK All-in-One DVD directories: Chipset Driver \NuPRO\NuPRO-935A\Chipset\ Display Driver \NuPRO\NuPRO-935A\VGA\ LAN Driver \NuPRO\NuPRO-935A\Ethernet\ ISA Driver \NuPRO\NuPRO-935A\ISA\ TPM Driver \NuPRO\NuPRO-935A\TPM\ Audio Driver \Audio Daughter Board\DB-Audio2\ 4.
4.2 Display Driver This section describes the installation of the Intel® Graphics Media Accelerator (GMA) 3000 driver. To install the display driver: 1. Locate the display driver from this directory X:\NuPRO\NuPRO-935A\VGA\, then double-click on the Setup.exe file to start installation. 2. Follow screen instructions to complete installation, then restart the system if prompted. 4.3 LAN Driver Follow these instructions to install the LAN driver. 1.
NuPRO-935A 4.4 ISA Driver Follow these instructions to install the ISA driver. 1. Open the Device Manager on your system. 2. Right click on ‘Other PCI Bridge Devices’. 3. A dialog box will appear. Select ‘Update Driver...’ 4. The ‘Hardware Update Wizard’ dialog box will open. Read the instructions and then click option 3, ‘No, not this time’, then click ‘Next’ to continue. 5. The next screen will prompt you to search for the location of the driver for your device.
4.6 Audio Driver Follow these instructions to install the audio driver for the optional DB-Audio2 daughter board. NOTE: Before installing the audio driver, check the BIOS settings to make sure that audio is enabled: Chipset > South Bridge Configurations > HDA Controller (see Section 5.7.1). 1. Place the ADLINK All-in-One DVD to the optical drive. 2. Locate the audio driver from the directory X:\Audio Daughter Board\DB-Audio2\, then double-click on the setup.exe file to start installation. 3.
NuPRO-935A 5 BIOS Setup The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 5.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the system 2. Press the < Delete > key on your keyboard when you see the following text prompt: < Press DEL to run Setup > 3. After you press the < Delete > key, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as Chipset and Power menus.
Setup Menu The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. “Grayed” options cannot be configured, “Blue” options can be. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white.
NuPRO-935A Note: There is a hot key legend located in the right frame on most setup screens. The < F8 > key on your keyboard is the Fail-Safe key. It is not displayed on the key legend by default. To set the Fail-Safe settings of the BIOS, press the < F8 > key on your keyboard. It is located on the upper row of a standard 101 keyboard. The Fail-Safe settings allow the system to boot up with the least amount of options set. This can lessen the probability of conflicting settings.
F10 ESC Enter 44 The < F10 > key allows you to save any changes you have made and exit Setup. Press the < F10 > key to save your changes. The following screen will appear: Press the < Enter > key to save the configuration and exit. You can also use the < Arrow > key to select Cancel and then press the < Enter > key to abort this function and return to the previous screen. The < Esc > key allows you to discard any changes you have made and exit the Setup.
NuPRO-935A 5.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below. System Time/System Date Use this option to change the system time and date. Highlight System Time or System Date using the < Arrow > keys. Enter new values using the keyboard.
5.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the < Arrow > keys. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages.
NuPRO-935A 5.3.1 CPU Configuration You can use this screen to select options for the CPU Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. The settings are described on the following pages. An example of the CPU Configuration screen is shown below.
5.3.2 IDE Configuration You can use this screen to select options for the IDE Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. The settings are described on the following pages. An example of the IDE Configuration screen is shown below. SATA Configuration This item specifies which mode the SATA channels should be initialized in.
NuPRO-935A 5.3.3 Floppy Configuration You can use this screen to specify options for the Floppy Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below. Options: 360 KB 5 ¼”, 1.2 MB 5 ¼”, 720 KB 3 ½”, 1.44 MB 3 ½”, 2.88 MB 3 ½”.
5.3.4 Super IO Configuration You can use this screen to select options for the Super IO settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below. Onboard Floppy Controller Options: Disabled, Enabled Serial Port1 Address Select an address and a corresponding interrupt for Serial Port1. Options: 3F8/IRQ4, 3E8/IRQ4, 2F8/IRQ3, 2E8/IRQ3.
NuPRO-935A if Serial Port1 uses 3F8/IRQ4, the option, the 3F8/IRQ4 will not appear in the options of Serial Port2. Parallel Port Mode This option specifies the parallel port mode. X Normal: Set this value to allow the standard parallel port mode to be used. X EPP: The parallel port can be used with devices that adhere to the Enhanced Parallel Port (EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bi-directional data transfer driven by the host device.
5.3.5 Hardware Health Configuration This option displays the current status of all of the monitored hardware devices / components such as voltages and temperatures.
NuPRO-935A 5.3.6 Remote Access Configuration Remote access configuration provides the settings to allow remote access by another computer to get POST messages and send commands through serial port access. Remote Access Select this option to Enable or Disable the BIOS remote access feature. Note: Enabling Remote Access requires a dedicated serial port connection. Once both serial ports are configured to disabled, you should set this value to Disabled or it may cause abnormal boot.
Serial Port Mode Select the baud rate you want the serial port to use for console redirection. The options are 115200 8,n,1; 57600 8,n,1; 19200 8,n,1; and 09600 8,n,1. Flow Control Set this option to select Flow Control for console redirection. The settings for this value are None, Hardware, or Software. Redirection After BIOS POST This option allows you to set Redirection configuration after BIOS POST. The settings for this value are Disabled, Boot Loader, or Always.
NuPRO-935A 5.3.7 Trusted Computing Trusted computing is an industry standard to make personal computers more secure through a dedicated hardware chip, called a Trusted Platform Module (TPM). This option enables or disables the TPM support.
5.3.8 USB Configuration You can use this screen to select options for the USB Configuration. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below. Legacy USB Support Legacy USB Support refers to USB mouse and keyboard support.
NuPRO-935A there are no USB drivers loaded on the system. Set this value to enable or disable the Legacy USB Support. X Disabled: Set this value to prevent the use of any USB device in DOS or during system boot. X Enabled: Set this value to allow the use of USB devices during boot and while using DOS. X Auto: This option auto detects USB Keyboards or Mice and if found, allows them to be utilized during boot and while using DOS.
USB Mass Storage Device Configuration This is a submenu for configuring the USB Mass Storage Class Devices when BIOS finds they are in use on USB ports. Emulation Type can be set according to the type of attached USB mass storage device(s). If set to Auto, USB devices less than 530MB will be emulated as Floppy and those greater than 530MB will remain as hard drive. The Forced FDD option can be used to force a hard disk type drive (such as a Zip drive) to boot as FDD.
NuPRO-935A 5.4 Advanced PCI/PnP Settings Select the PCI/PnP tab from the setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the < Arrow > keys. The Plug and Play BIOS Setup screen is shown below. 5.4.1 IRQ/DMA Set this value to allow the IRQ settings to be modified. Available – This setting allows the specified IRQ/DMA to be used by a PCI/ PnP device.
5.4.2 ISA Plug and Play This setting enables/disables the ISA Plug and Play functionality.
NuPRO-935A 5.5 Boot Settings Select the Boot tab from the setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item. You can display a Boot BIOS Setup option by highlighting it using the < Arrow > keys. The Boot Settings screen is shown below: 5.5.1 Boot Settings Configuration Use this screen to select options for the Boot Settings Configuration.
Quick Boot Enabling this setting will cause the BIOS power-on self test routine to skip some of its tests during bootup for faster system boot. Quiet Boot When this feature is enabled, the BIOS will display the fullscreen logo during the boot-up sequence, hiding normal POST messages. When it is disabled, the BIOS will display the normal POST messages, instead of the full-screen logo. Bootup Num-Lock This setting is to set the Num Lock status when the system is powered on.
NuPRO-935A 5.5.2 Boot Device Priority The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. First press to enter the sub-menu. Then you may use the arrow keys to select the desired device, then press <+>, <-> or , key to move it up/down in the priority list. 5.5.3 Boot Device Groups The Boot devices are listed in groups by device type. First press to enter the sub-menu.
5.6 Security Setup Password Support Two Levels of Password Protection Provides both a Supervisor and a User password. If you use both passwords, the Supervisor password must be set first. The system can be configured so that all users must enter a password every time the system boots or when Setup is executed, using either or either the Supervisor password or User password. The Supervisor and User passwords activate two different levels of password security.
NuPRO-935A Remember the Password Keep a record of the new password when the password is changed. If you forget the password, you must erase the system configuration information in NVRAM. To access the sub menu for the following items, select the item and press < Enter >: X Change Supervisor Password X Change User Password X Clear User Password Supervisor Password Indicates whether a supervisor password has been set. User Password Indicates whether a user password has been set.
and press < Enter >. If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after completes. Change User Password Select Change User Password from the Security Setup menu and press < Enter >. Enter New Password: Type the password and press < Enter >. The screen does not display the characters entered. Retype the password as prompted and press < Enter >. If the password confirmation is incorrect, an error message appears.
NuPRO-935A 5.7 Chipset Setup Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item. The Chipset BIOS Setup screen is shown below.
5.7.1 South Bridge Configuration You can use this screen to select options for the South Bridge Configuration. Use the up and down keys to select an item. Use the and keys to change the value of the selected option. GbE LAN Boot Invoke the onboard LAN’s PXE ROM to enable boot from LAN. The options are Enabled and Disabled. GbE Wake Up From S5 Set onboard LAN boot wake up from power down mode. The options are Enabled and Disabled.
NuPRO-935A 5.7.2 Advanced Chipset Settings ACPI Aware O/S This option specifies which OS support ACPI. The options are Enabled and Disabled. Resume On PME# This option specifies if the PME#. event will generate a system wake event. The sub-options are Enabled and Disabled. Restore on AC Power Loss Determines which state the computer enters when AC power is restored after a power loss. The options for this value are Last State, Power On and Power Off.
5.8 Exit Menu Select the Exit tab from the setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by highlighting it using the < Arrow > keys. The Exit BIOS Setup screen is shown below. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect. Save Configuration Changes and Exit Now? [Ok] [Cancel] appears in the window.
NuPRO-935A Discard Changes and Exit Select this option to quit Setup without making any permanent changes to the system configuration. Discard Changes and Exit Setup Now? [Ok] [Cancel] appears in the window. Select Ok to discard changes and exit. Discard Changes Select Discard Changes from the Exit menu and press < Enter >. Select Ok to discard changes. Load Optimal Defaults Automatically sets all Setup options to a complete set of default settings when you select this option.
This page intentionally left blank.
NuPRO-935A Appendix A - Watchdog Timer A sample program for configuring the NuPRO-935A’s watchdog timer is included on the ADLINK All-in-One DVD in the following directory: \NuPRO\NuPRO-935A\WDT. A.1 Sample Code #include #include #include #include
//Detect ITE8718F.
NuPRO-935A outportb(0x2E, outportb(0x2E, outportb(0x2E, outportb(0x2E, break; case 0x4E: //Address port = 0x87, 0x01, 0x55, 0xAA outportb(0x2E, outportb(0x2E, outportb(0x2E, outportb(0x2E, break; default: break; } 0x87); 0x01); 0x55); 0x55); = 0x4E, enter keys 0x87); 0x01); 0x55); 0xAA); } void Exit_IT8718_Config(int config_port) { outportb(config_port, 0x02); outportb(config_port+1, 0x02); } void WDTRUN(int config_port,int count_value) { int temp; int counter; //Select WDT device outportb(config_port, 0
// // // // // // else if(count_value <= 60){ temp = temp | 0x80;//chip's default is minute. counter = count_value; printf("WDT timeout in %d seconds.
NuPRO-935A Appendix B System Resources B.
B.2 Direct Memory Access Channels Channel Number Data Width System Resource 0 8-bits Parallel port(1) 1 8-bits Parallel port(1) 2 8-bits Diskette drive(1) 3 8-bits Parallel port(1) 4 Reserved - cascade channel 5 16-bits Open 6 16-bits Open 7 16-bits Open Table B-2: Direct Memory Access Channels Note (1): DMA channel 0/1/3 is selected when using parallel port. Floppy and parallel port cannot be used at the same time.
NuPRO-935A B.
Hex Range Device 278-27F Parallel Port 2 280-2F7 Available 2F8-2FF Serial Port 2 300-36F Available 370-377 Alt.
NuPRO-935A B.
IRQ Lines APIC Mode Typical Interrupt Resource Connected to Pin Available 0 Counter 0 N/A No 1 Keyboard controller N/A No 2 Cascade interrupt from slave PIC N/A No 3 Serial Port 2 (COM2) / PCI / ISA IRQ3 via SERIRQ, IRQ3 at ISA bus Note (1) 4 Serial Port 1 (COM1) / PCI / ISA IRQ4 via SERIRQ, IRQ4 at ISA bus Note (1) 5 Parallel Port 2 (LPT2) / PCI / ISA IRQ5 via SERIRQ, IRQ5 at ISA bus Note (1) 6 Floppy Drive Controller IRQ6 via SERIRQ No 7 Parallel Port 1 (LPT1) / PCI / ISA
NuPRO-935A Typical Interrupt Resource Connected to Pin Available N/A PCI Slot 1/2/3/4, PCIE Port 0/1/2/3/4/5 UHCI Controller 3, PEG Root Port, SATA Host controller, SMBus Controller, Thermal Controller, EHCI Controller #2 Yes 19 N/A PCI Slot 1/2/3/4, PCIE Port 0/1/2/3/4/5 UHCI Controller 2/7, PEG Root Port, SATA Host controller, SATA Host controller#1, Yes 20 N/A ICH9 internal GBE controller No 21 N/A UHCI Controller 5 No 22 N/A ICH9 HDA No 23 N/A UHCI Controller 1, EHCI Controller
PCI Interrupt Request Routing Bus # Device # Function # Routing Description 00h 00h 00h N/A Intel 965 GME GMCH Host-Hub Interface Bridge 00 01H 00H Internal 02 00H 0FFH N/A 00h 02h 00h Internal Intel Integrated Graphics Device 00h 02h 01h Internal Intel Integrated Graphics Device (Function 1) 00h 19h 00h Internal GbE Controller 00h 1Ah 00h Internal Intel USB UHCI Controller 4 00h 1Ah 01h Internal Intel USB UHCI Controller 5 00h 1Ah 02h Internal Intel USB UHCI C
NuPRO-935A Bus # Device # Function # Routing Description 01h 0Dh 0FFh external PCI slot 3 01h 0Eh 0FFh external PCI slot 2 01h 0Fh 0FFh external PCI slot 1 04h 00h 0FFh Internal PCIE Port #0 05h 00h 0FFh Internal PCIE Port #1 06h 00h 0FFh Internal PCIE Port #2 07h 00h 0FFh Internal PCIE Port #3 08h 00h 0FFh Internal PCIE Port #4 09h 00h 0FFh Internal PCIE Port #5 Table B-6: PCI Interrupt Request Routing System Resources 85
PCI Interrupt Routing Map PIRQ A B C D INT Line INTA INTB INTC INTD PEG Root Port INTA INTB INTC INTD VGA X X X SATA Controller SATA Controller1 E F G X SMBUS Controller X Thermal Controller X X UHCI 1 X UHCI 2 X UHCI 3 UHCI 4 X X UHCI 5 UHCI 6 H X X X UHCI 7 X EHCI 1 X EHCI 2 X HDA X Intel GBE X PCIE port 0 INTA INTB INTC INTD PCIE port 1 INTB INTC INTD INTA PCIE port 2 INTC INTD INTA INTB PCIE port 3 INTD INTA INTB INTC PCIE port 4 INTA
