22
CSA-5200

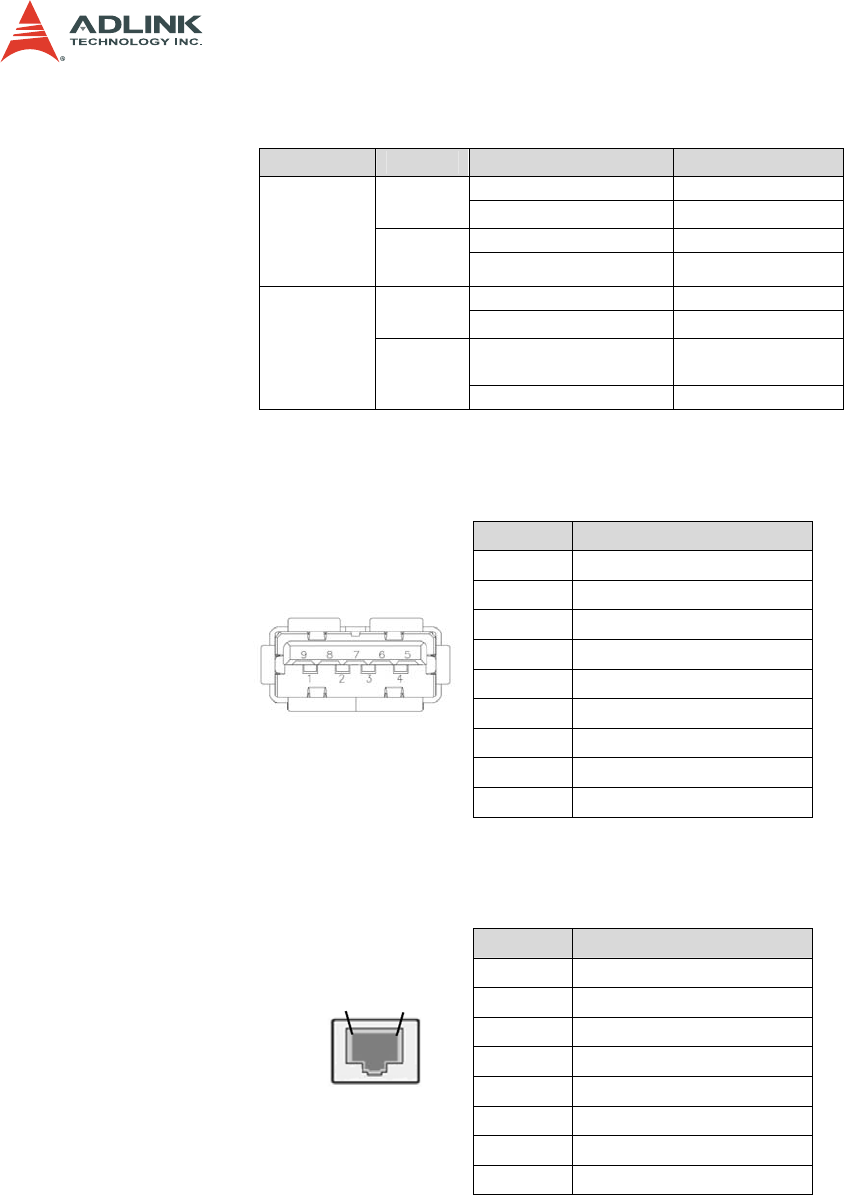

4.1.3 Service Port Status LEDs
LAN LED Status LED Color
10 Mbps Off
Left
100 Mbps GREEN
1000 Mbps Yellow
GbE
Right
Right
LINK with no activity Green
LINK up Yellow
Left
Link down Off
LINK down or Link
with no activity
Off
SFP/SFP+
Right
LINK with activity Green Blinking
4.1.4 USB 3.0 Connectors
Pin Signal
1 P5V_USB3
2 S_USB2_N0_R
3 S_USB2_P0_R
4 GND
5 S_USB3_RN1_R
6 S_USB3_RP1_R
7 GND
8 S_USB3_TN1_R
9 S_USB3_TP1_R
4.1.5 Remote Console Connector (RJ-45)
Pin Signal
1 DCD-L_CN
2 RTS-L_CN
3 DSR-L_CN
4 TXD_CN
5 RXD_CN
6 GND
7 CTS-L_CN
8 DTR-L_CN
8
1
