CSA-5200

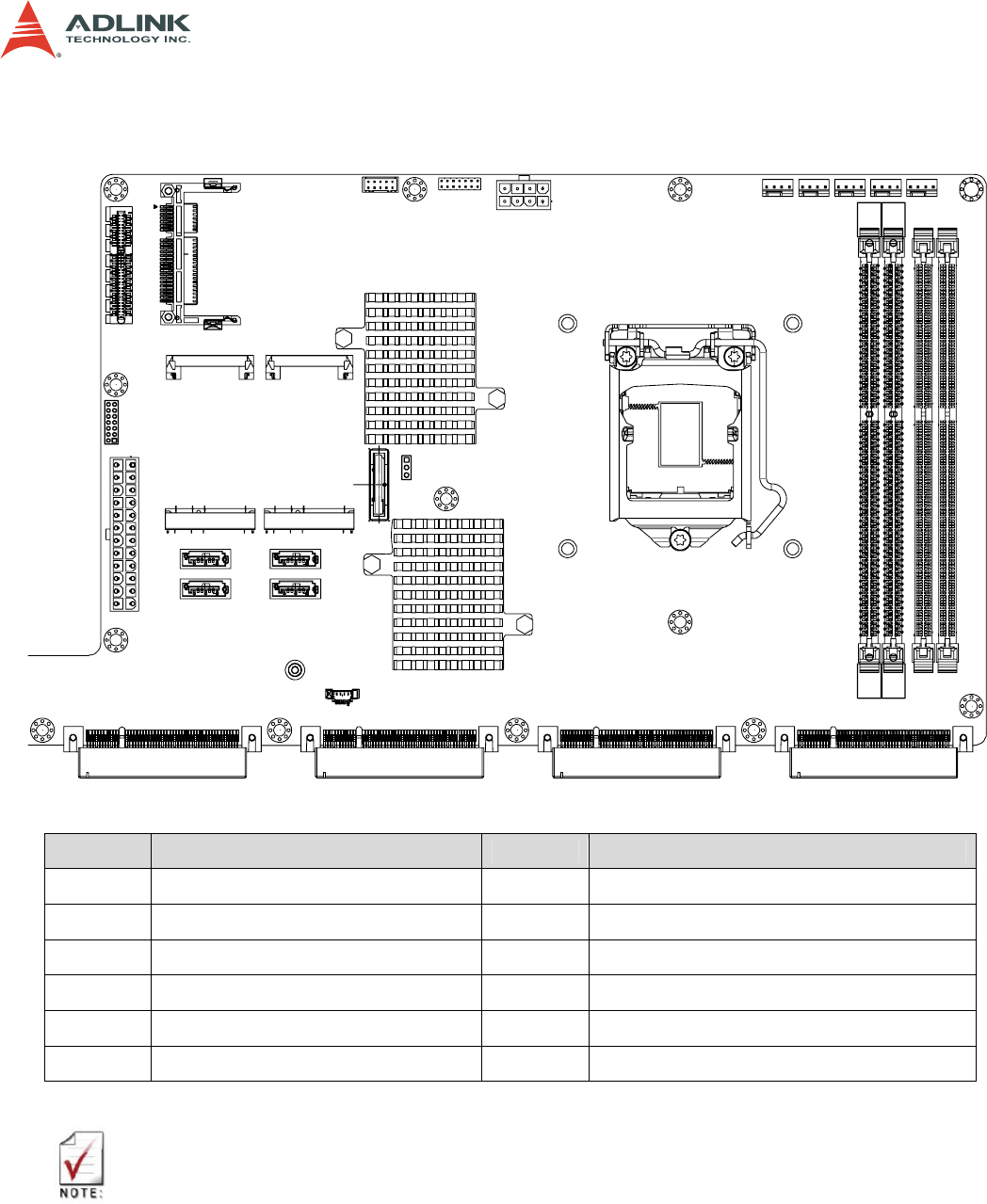

4.2 Board Layout
1
6
2
34 5
77
8
9
10
11 11 11 11
Location Description Location Description
1
PCIe x4 connector (PCIE1)
7
mSATA connectors (CN9/CN48)
2
CFast connector (CN17)
8
SATA connectors (CN30-33)
3
VGA header (CNX1)
9
SATADOM power connector (CN18)
4
ATX12V connector (CN24)
10
Clear CMOS jumper (JBAT1)
5
Fan connectors (FAN1/FAN6-9)
11
NIM slot connectors (PCI1-4)
6
ATX connector (CN19)
SATA connector CN32 is shared with SATADOM.
