CSA-5200

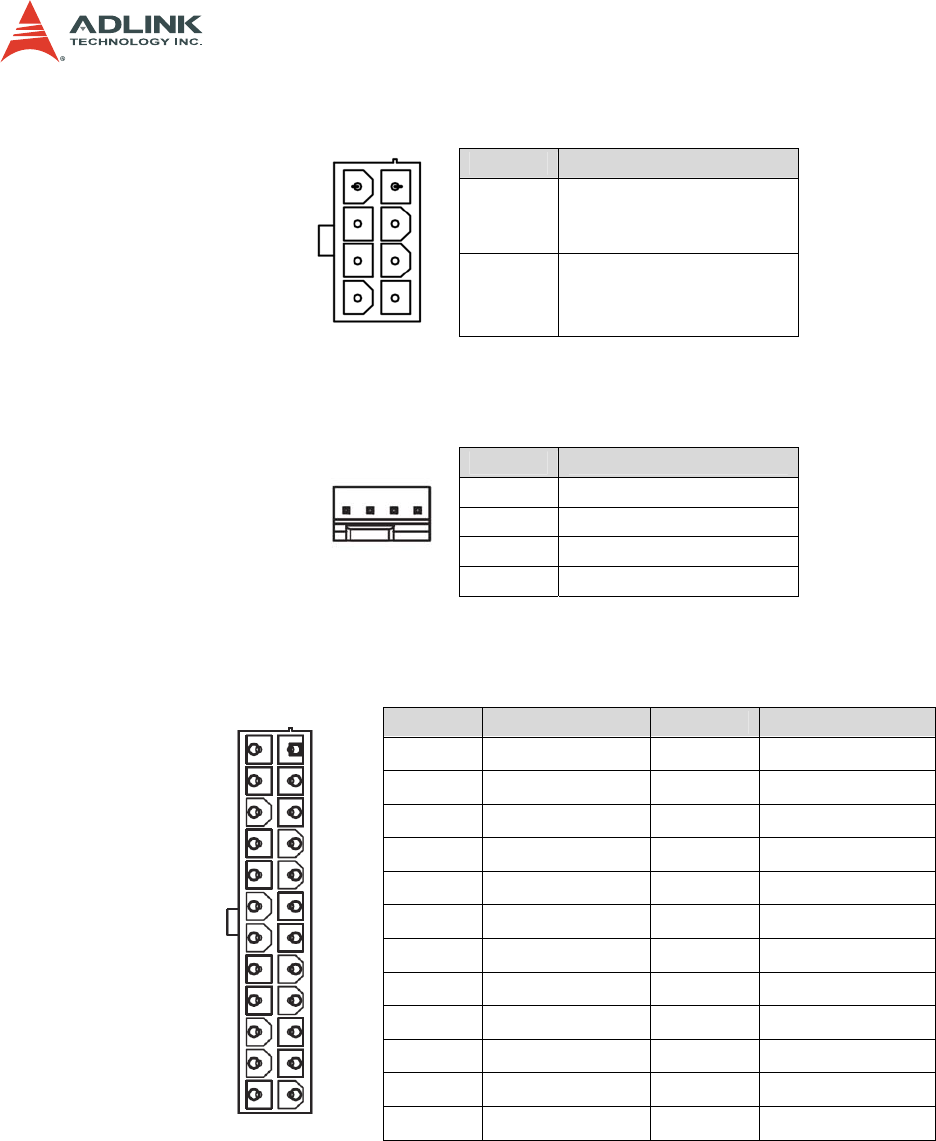

4.3.4 ATX12V Connector (CN24)
Pin Signal
1-4
GND
5-8 P12V_CORE
4.3.5 Fan Connectors (FAN1/FAN6-9)
Pin Signal
1 FAN_CTL
2 FAN_TAC
3 P12V_CORE
4 GND
4.3.6 ATX Connector (CN19)
Pin Signal Pin Signal
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 ATX_PSON#
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 F_PWRGD_PS 20 NC
9 P5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
1
2
1
1
13
