CSA-5200
7.4.2 System Date/System Time
Use this option to change the system time and date. Highlight System Time or System Date
using the < Arrow > keys. Enter new values using the keyboard. Press the < Tab > key or the
< Arrow > keys to move between fields. The date must be entered in MM/DD/YY format. The
time is entered in HH:MM:SS format.
The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30
P.M. as 17:30:00.

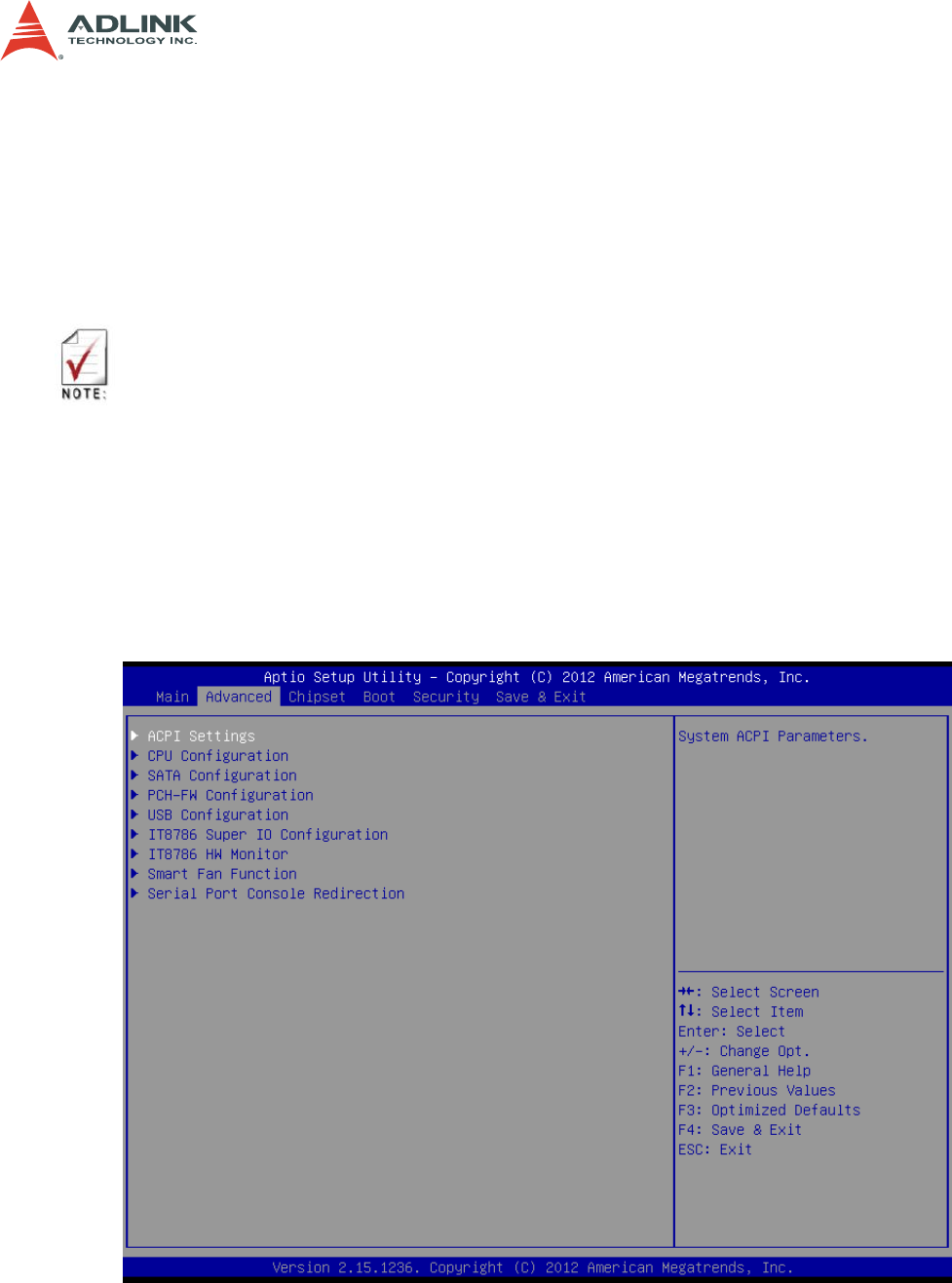

7.5 Advanced BIOS Setup
Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen.
You can select any of the items in the left frame of the screen, (ex: Super IO Configuration),
to go to the sub menu for that item. You can display an Advanced BIOS Setup option by
highlighting it using the < Arrow > keys. The Advanced BIOS Setup screen is shown below.
The sub menus are described on the following pages.
