47

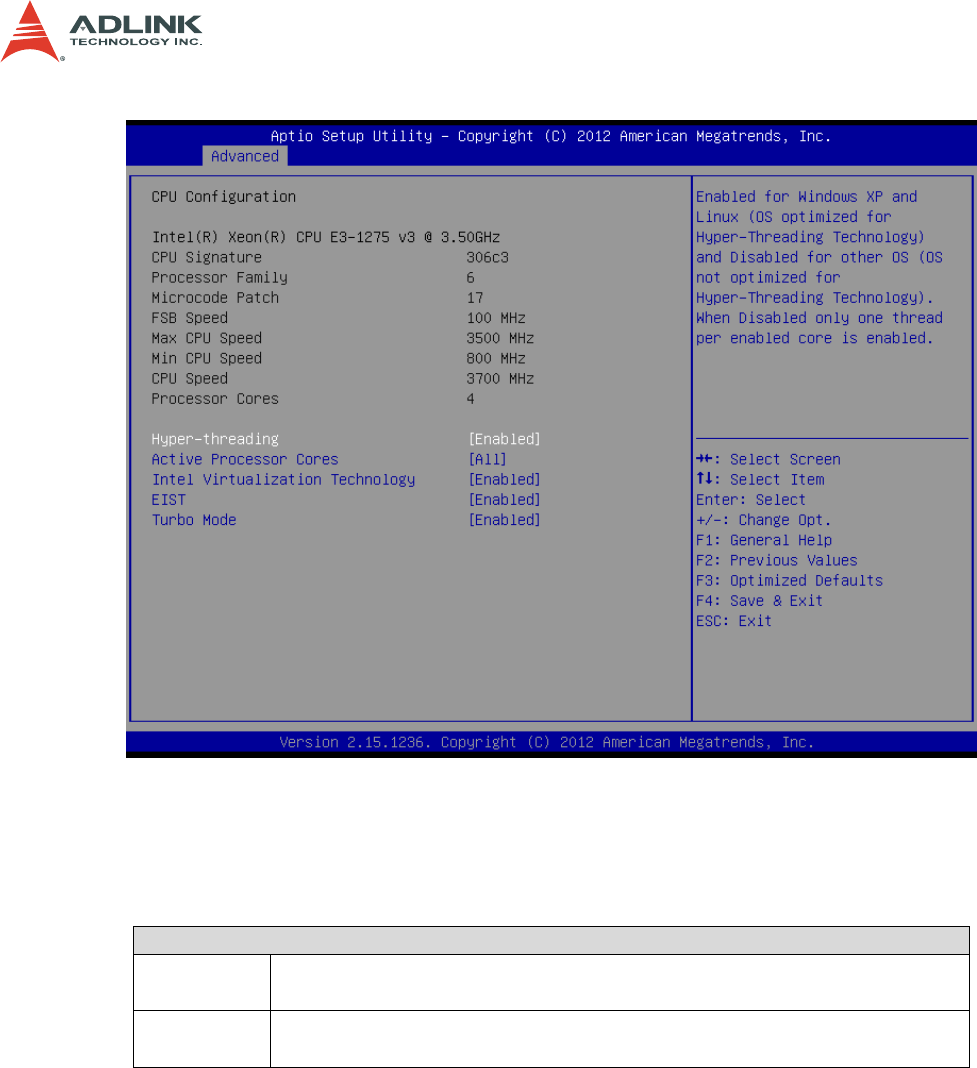

CSA-5200
Hyper-threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology)
and Disabled for other OS (OS not optimized for Hyper-Threading Technology).
Options
Enabled
For Windows XP and Linux (OS optimized for Hyper-Threading
Technology).
Disabled
For other OS (OS not optimized for Hyper-Threading
Technology).
Active Processor Core
Number of cores to enable in each processor package.
Set this value to All, 1, 2, 3.
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware capability provided by
Vanderpool Technology. Set this value to Enabled/Disabled.
EIST
Enable Intel SpeedStep Technology support. Set this value to Enabled/Disabled.
Turbo Mode
Enable Intel Turbo Boost support. Set this value to Enabled/Disabled.
