7.5.4 PCH-FW Configuration

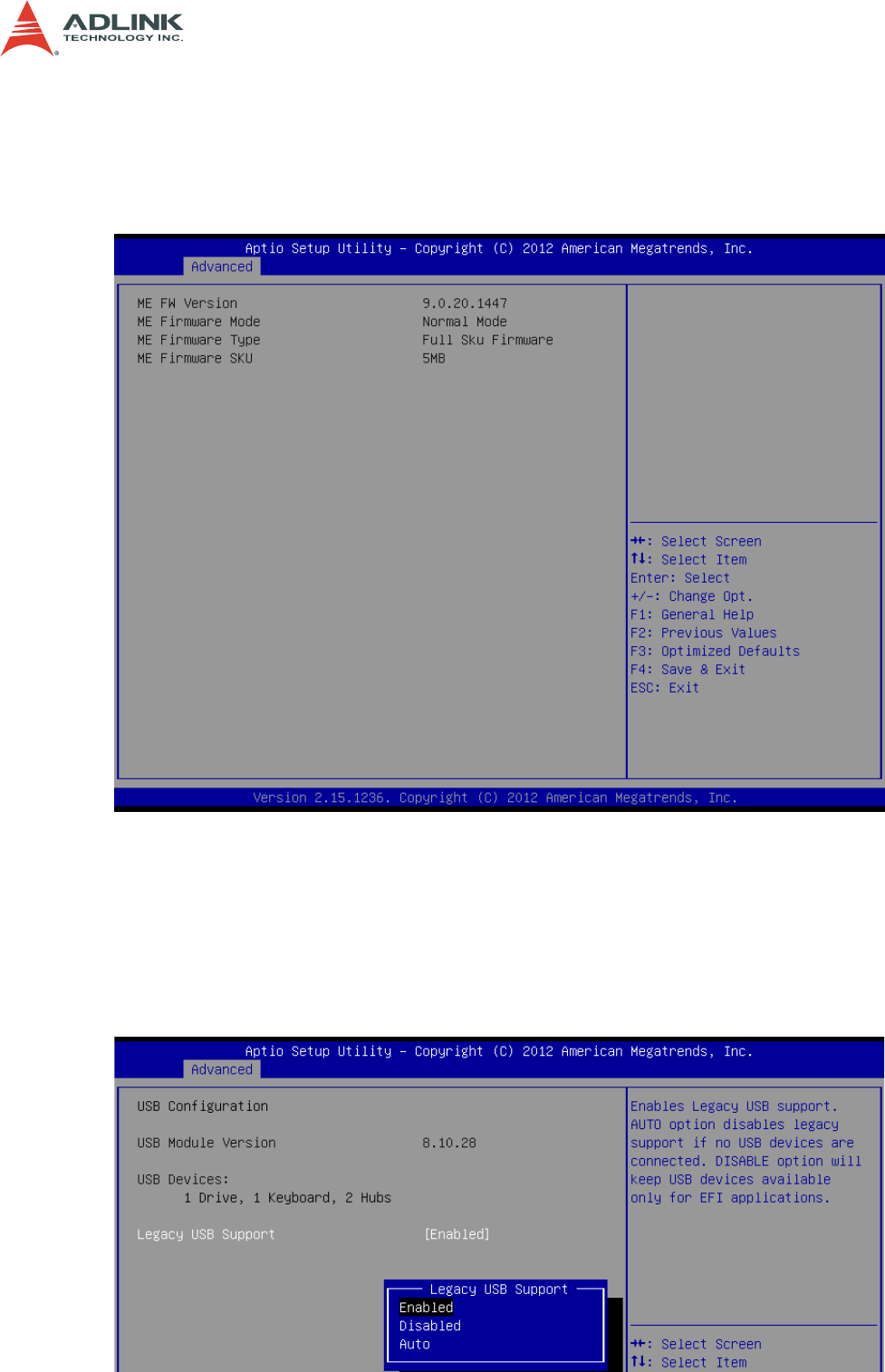

You can use this screen to check Intel Management Engine (ME) firmware status. The
information is described on the following pages.
7.5.5 USB Configuration
You can use this screen to select options for the USB Configuration Settings. Use the up and
down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of
the selected option. A description of the selected item appears on the right side of the screen.
The settings are described on the following pages. An example of the USB Configuration
screen is shown below.
