50
CSA-5200
Legacy USB Support
Enables legacy USB support. Auto option disables legacy support if no USB
devices are connected. The disable option will keep USB devices available only for
EFI applications. Set this value to Enabled/Disabled/Auto.

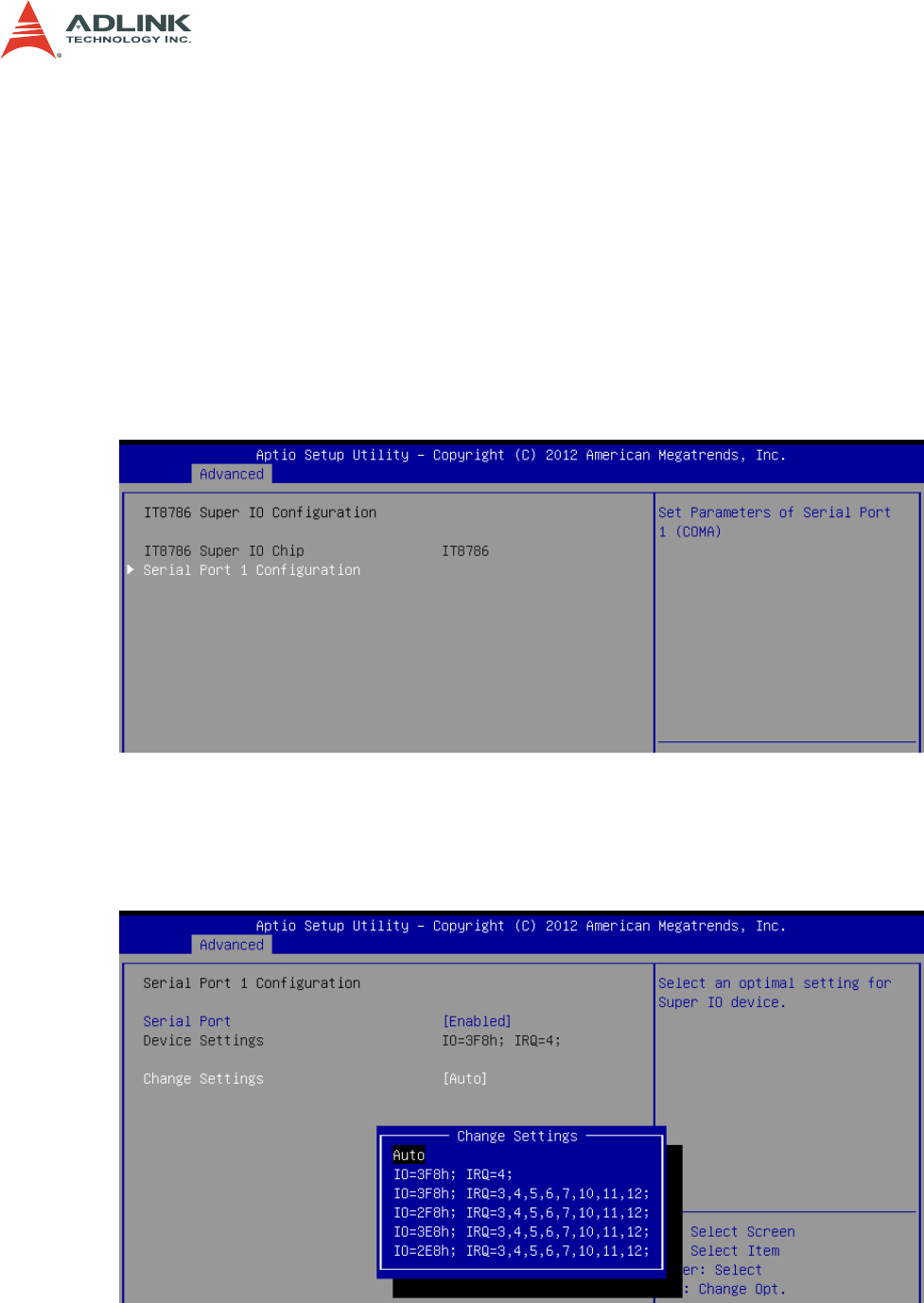

7.5.6 Super IO Configuration
You can use this screen to select options for the Super IO settings. Use the up and down <
Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the
selected option. The settings are described on the following pages. The screen is shown
below.
Serial Port 1 Configuration
Set parameters of Serial Port 1.
Set this value to Enabled/Disabled. The screen is shown below.
Serial Port
Enable or disable Serial Port 1.
