51
CSA-5200

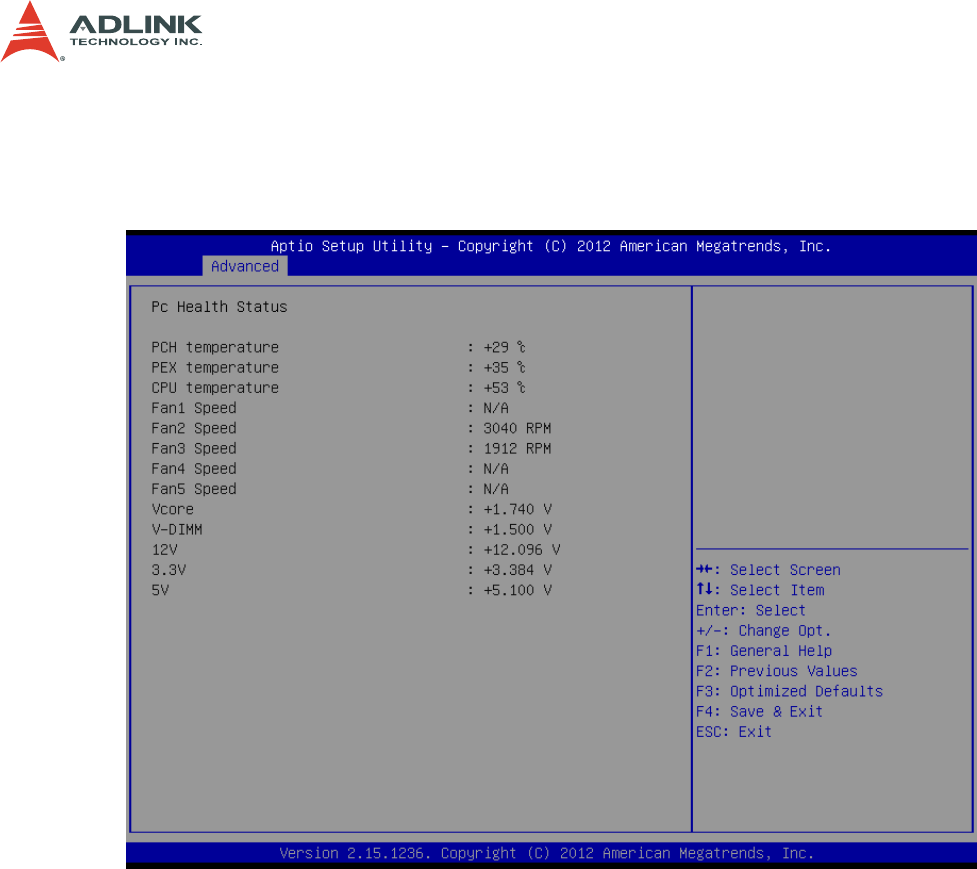

7.5.7 IT8786 HW Monitor
You can use this screen to check PC health status. The information will be described on the
following pages.
PCH Temperature
Displays current PCH temperature.
PEX Temperature
Displays current PEX temperature.
CPU Temperature
Displays current CPU temperature.
Fan1 - Fan5 speed
Displays current system Fan RPM.
Vcore
Displays current system Vcore voltage.
V-DIMM
Displays current system V-DIMM voltage.
3.3V
Displays current system 3.3V voltage.
