52
CSA-5200
5V
Displays current system 5V voltage.
12V
Displays current system 12V voltage.
7.5.8 Smart Fan Function
You can use this screen to select options for the Smart Fan settings. Use the up and down <
Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the
selected option. A description of the selected item will appear on the right side of the screen.

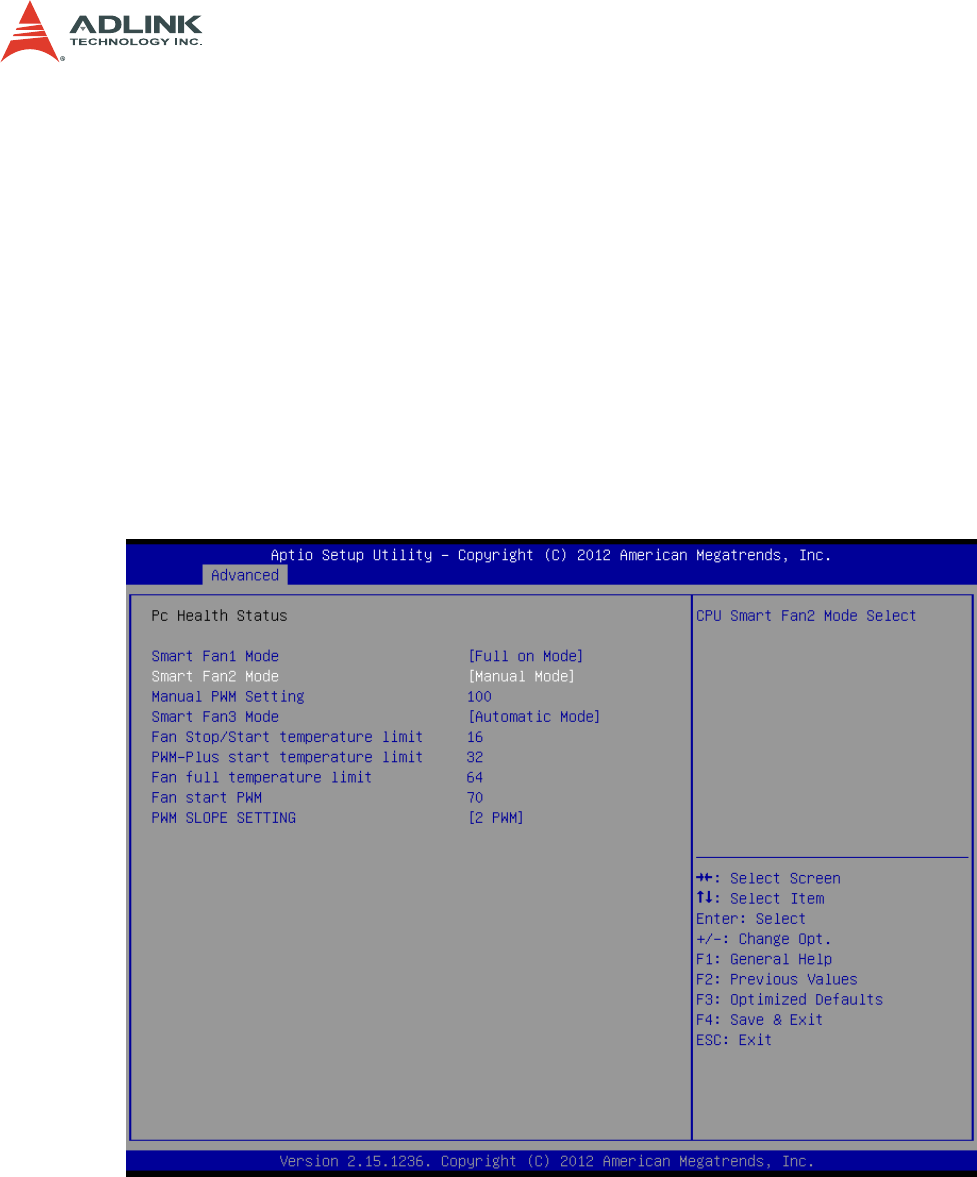

The settings are described in the following pages. An example of the Smart Fan screen is
shown below.
Smart Fan Mode
Full on Mode
Fan on full speed.
Automatic Mode
Fan Stop/Start temperature limit
Fan will stop when temperature lower than this limit, and start when
temperature is higher than this limit.
