CSA-5200
Console Redirection
The BIOS Console Redirection feature is here. Set this value to Enabled/Disabled.

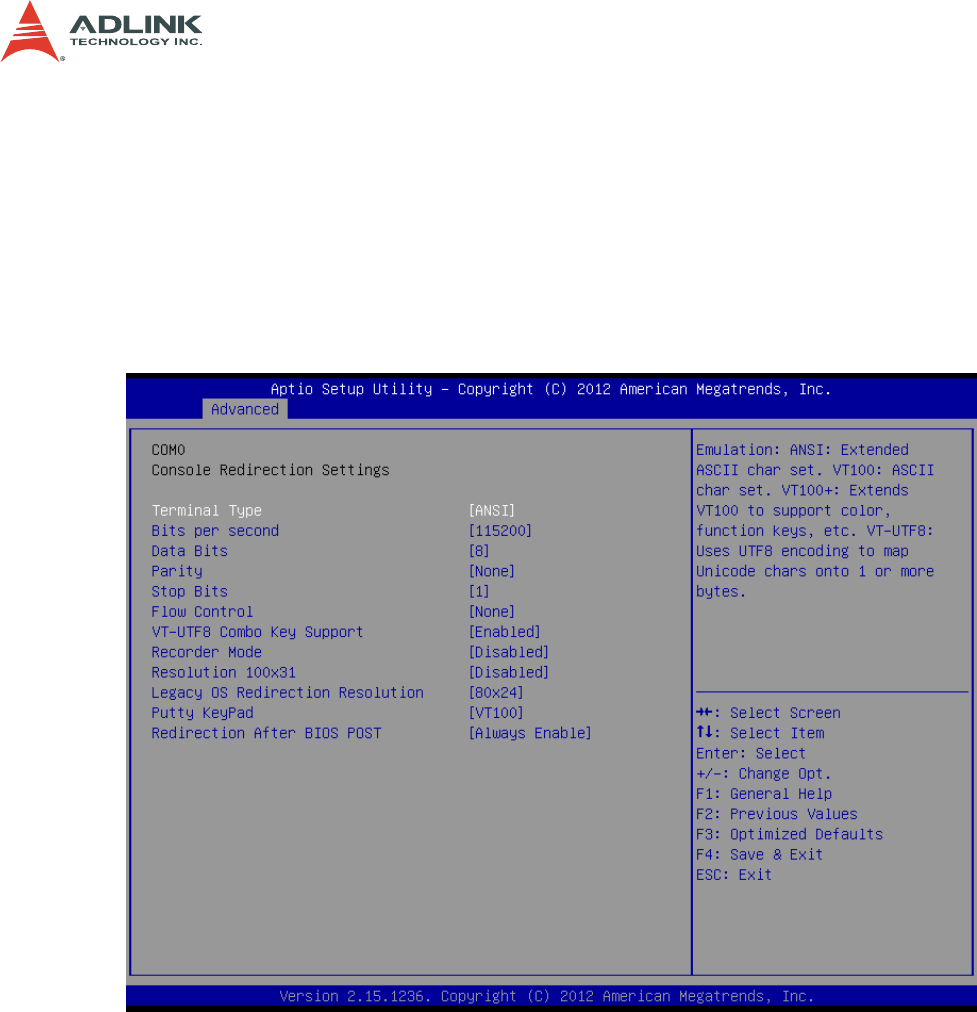

Console Redirection Settings
The settings specify how the host computer and the remote computer (which the
user is using) will exchange data. Both computers should have the same or
compatible settings. The screen is shown below.
Terminal Type
VT100+ is the preferred terminal type for out-of-band management. Configuration
options are: VT100, VT100+, VT-UTF8, ANSI.
Bits per second
Select the bits per second you want the serial port to use for console redirection.
The options are 115200, 57600, 38400, 19200, and 9600.
Data Bits
Select the data bits you want the serial port to use for console redirection. Set this
value to 7, 8.
Parity
Set this option to select Parity for console redirection. The settings for this value are
None, Even, Odd, Mark, and Space.
