7.6.2.1 Graphics Configuration
Primary Display
Select which of IGFX/PEG/ PCIE graphics device should be the primary display. Set
this value to Auto/ IGFX/ PCIE.
Internal Graphics
Keep IGD enabled based on the setup options. Set this value to Auto, Disabled,
Enabled.
DVMT Pre-Allocated
Select DVMT 5.0 Pre-Allocated (fixed) graphics memory size used by the internal

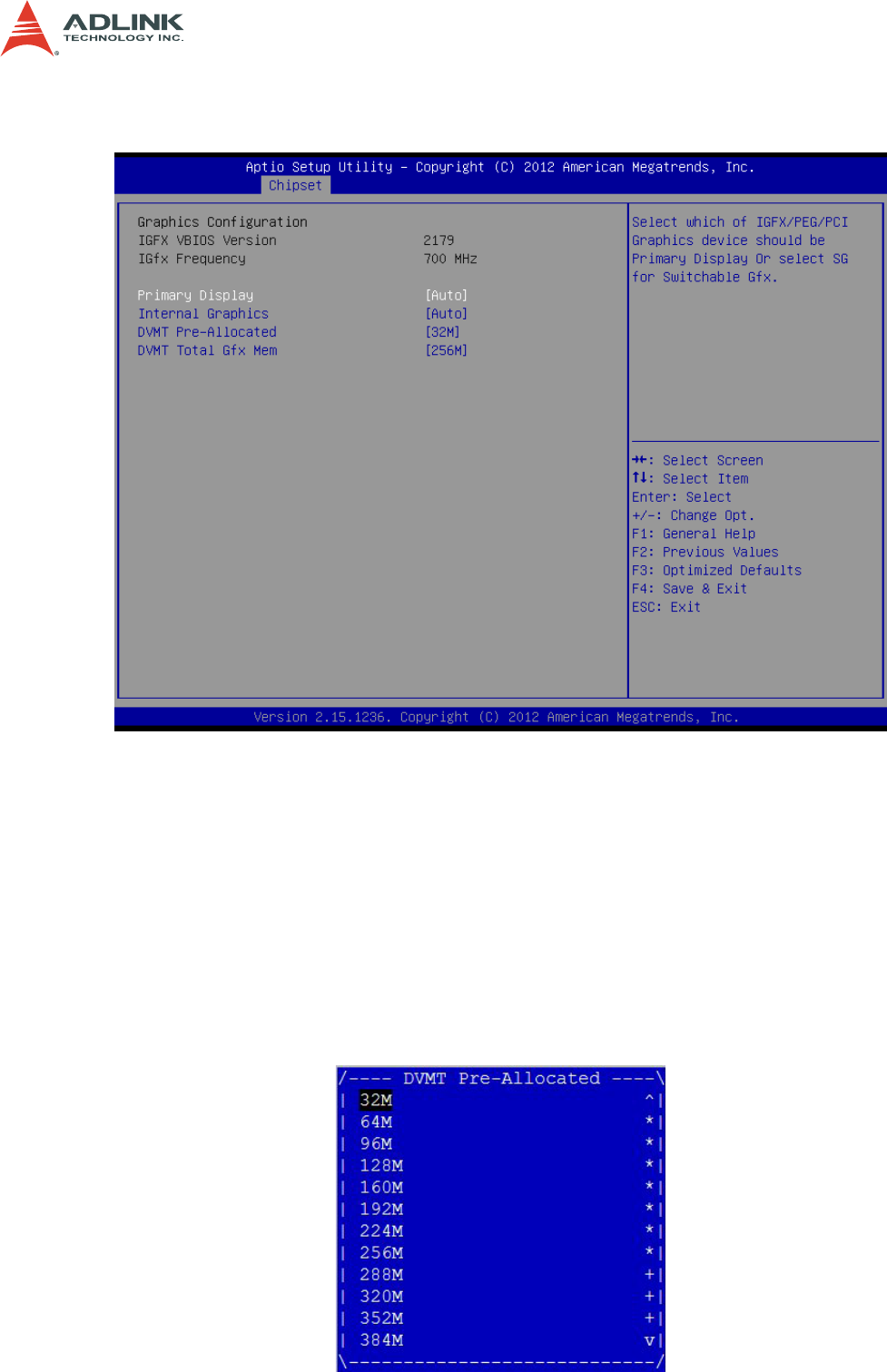

graphics device. Configuration options are as seen on the below screen:
