Network Device Quick Configuration Guide

ManualsBrandsADTRAN ManualsNetwork CardNetVanta Series

Technical Support 1-888-4ADTRAN (1-888-423-8726)

NetVanta Series

(with Octal T1 Wide Module)

Quick Configuration Guide

61200890L1-42B November 2004

• A VT100 terminal or a PC with VT100 emulator software for connecting to the unit.

• DB-9 (male) to DB-9 (female) straight-through serial cable for configuring the unit.

• Appropriate cable(s) for connecting the system to the existing network.

Multilink PPP Internet Access

Equipment Required

The configuration sections of this quick configuration guide are formatted to provide

step-by-step text descriptions for selected applications. The configuration parameters

used in the example outlined in this document are for instructional purposes only. Please

replace all bold underlined entries (example

) with your specific parameters to configure

your application.

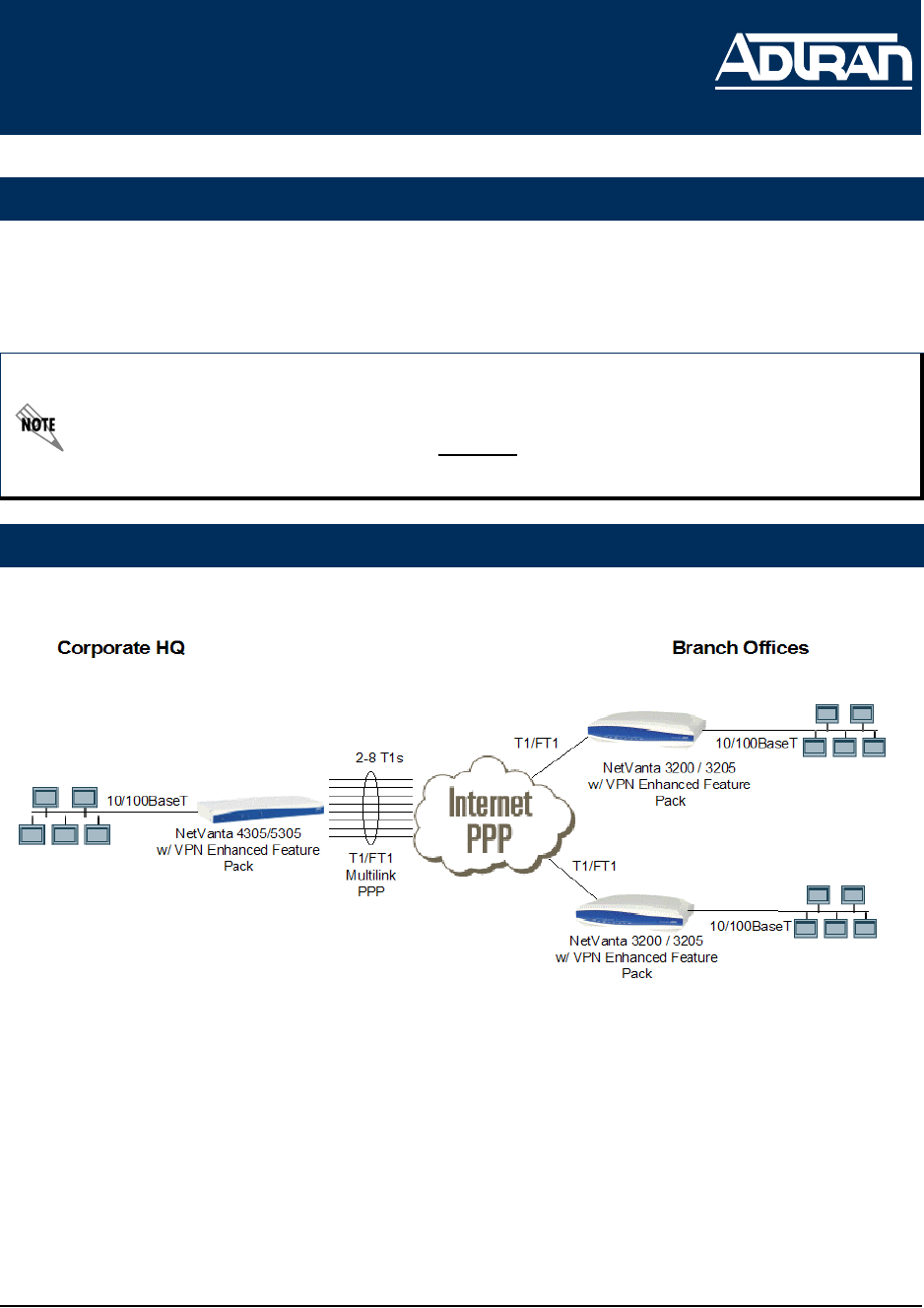

Network Diagram

Summary of content (6 pages)

PAGE 1
NetVanta Series (with Octal T1 Wide Module) Quick Configuration Guide 61200890L1-42B November 2004 Equipment Required • A VT100 terminal or a PC with VT100 emulator software for connecting to the unit. • DB-9 (male) to DB-9 (female) straight-through serial cable for configuring the unit. • Appropriate cable(s) for connecting the system to the existing network.
PAGE 2
Connect to the NetVanta 4305 1. Connect a VT100 terminal (or PC with VT100 emulation software) to the NetVanta CONSOLE port using a DB-9 (male) to DB-9 (female) straight-through serial cable. 2. Configure the COM port with the following parameters: Data Rate: 9600 Data Bits: 8 Parity Bits: None Stop Bits: 1 Flow Control: None 3. Open a VT100 terminal session. (Please refer to the appropriate VT100 terminal software documentation for detailed instructions.) 4. Press the key. 5.
PAGE 3
The NetVanta Network Interface Modules (NIMs) use a slot/port notation for interface identification. All non-modular interfaces built into the base unit (e.g., the Ethernet port) are identified using 0 as the slot number. Configure a Telnet Session The following steps show how to access the Telnet configuration parameters and change the password. The default password for initializing a Telnet session is password (all lowercase). For security purposes, change the password to something unique.
PAGE 4
Create the Interface and Define the Encapsulation 1. Enter interface fr 1 to create a Frame Relay virtual interface labeled 1. 2. Enter frame-relay lmi-type none (contact your service provider for your correct LMI-type) to configure signaling on the Frame Relay virtual interface 1. The default LMI type is ANSI (Annex D). 3. Enter no shutdown to activate the interface to pass data. 4. Enter exit to return to the Global Configuration mode. Create the PVC and Assign an IP Address 1. Enter interface fr 1.
PAGE 5
Create a T1 to a Virtual Interface Cross-Connect For this example we will configure a T1 WAN interface with DS0s 1 through 10 for data. The following steps assume the Global Configuration mode is currently active. Verify that the prompt of your unit displays (config)#. 1. Enter interface t1 1/1 to activate the interface configuration mode for the T1 WAN interface. 2. Enter tdm-group 1 timeslots 1-10 to create a TDM group for DS0s 1-10 on the T1 network connection (t1 1/1). 3.
PAGE 6
Create an Octal T1 Multilink Cross-Connect For this example we will configure T1 WAN interfaces with DS0s 1 through 24 for data. The following steps assume the Global Configuration mode is currently active. Verify that the prompt of your unit displays (config)#. 1. Enter interface t1 3/1 to activate the first T1 interface configuration mode on the Octal T1 Wide Module. 2. Enter tdm group 1 timeslots 1-24 to create a TDM group for DS0s 1 through 24 on the T1 connections. 3.
