ADVANCE ADAPTERS INC. P/N: 713015A

P.O. Box 247, 4320 Aerotech Center Way

Paso Robles, CA 93447 PAGE 1 OF 4

Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 08-10-10

SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will void

any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend that

you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a service

manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive dealerships

and parts stores.

KIT CONSISTS OF:

No. Qty Part No. Description

OPTIONAL ITEMS:

Qty Part No. Description

1. 1 713015LA LEFT SIDE MOUNT (Driver's side)

2. 1 713015RA RIGHT SIDE MOUNT (long mount)

3. 8 725003 1/2"-13 FLAT WASHERS

4. 2 725004 1/2"-13 HEX NUTS

5. 4 725005 1/2"-13 NYLON LOCK NUT

6. 4 725008 1/2"-13 x 1-1/2" H.H.C.S.

7. 1 FM001 FORD INSTRUCTION MANUAL

1 713017 Stock Engine Mount

1 716412 Oil Pan & Pickup Tube

1 716084 Oil filter relocation kit

1 717044A or

717044A-NP Headers

BRONCO II, RANGER 2WD & 1991-94

EXPLORERS TO FORD V8 ENGINE MOUNTS

Rangers 1992 & earlier require one hole to be drilled

on the driver's side for the mount to be installed.

The stock holes on 1993 and newer vehicles are used

to mount our mounts.

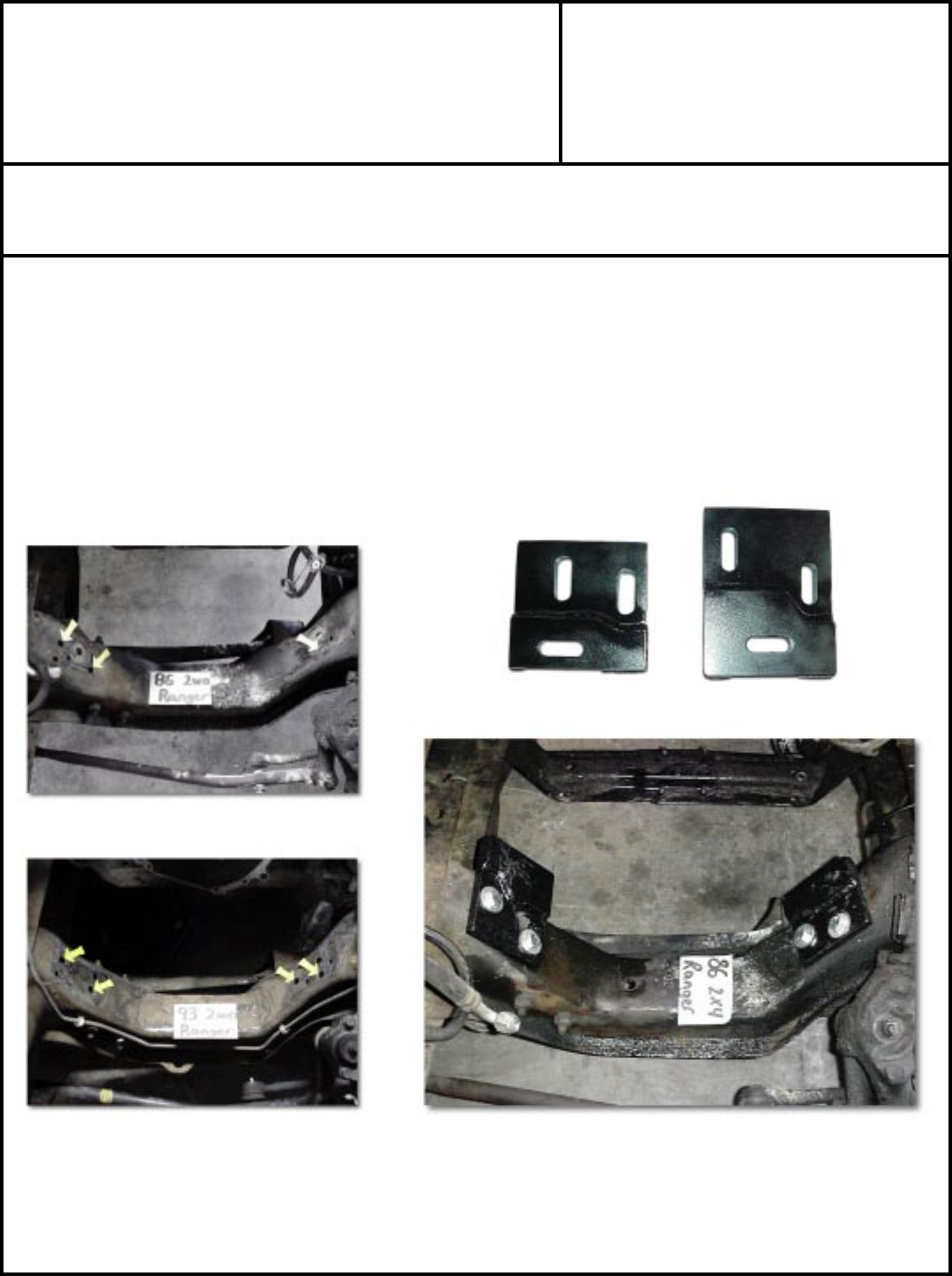

Mounts installed in a Ranger engine cradle

Summary of content (4 pages)

PAGE 1
ADVANCE ADAPTERS INC. P/N: 713015A P.O. Box 247, 4320 Aerotech Center Way Paso Robles, CA 93447 Telephone: (800) 350-2223 Fax: (805) 238-4201 PAGE 1 OF 4 Page Rev. Date: 08-10-10 BRONCO II, RANGER 2WD & 1991-94 EXPLORERS TO FORD V8 ENGINE MOUNTS KIT CONSISTS OF: No. Qty Part No. Description 1. 2. 3. 4. 5. 6. 7. LEFT SIDE MOUNT (Driver's side) RIGHT SIDE MOUNT (long mount) 1/2"-13 FLAT WASHERS 1/2"-13 HEX NUTS 1/2"-13 NYLON LOCK NUT 1/2"-13 x 1-1/2" H.H.C.S.
PAGE 2
ADVANCE ADAPTERS INC. P/N: 713015A P.O. Box 247, 4320 Aerotech Center Way Paso Robles, CA 93447 Telephone: (800) 350-2223 Fax: (805) 238-4201 PAGE 2 OF 4 Page Rev. Date: 10-19-01 BRONCO II & RANGER 2WD FORD V8 ENGINE MOUNTS REMOVAL PROCEDURES: Remove the stock engine and transmission. Refer to the owners or service manual for removal instructions.
PAGE 3
ADVANCE ADAPTERS INC. P/N: 713015A P.O. Box 247, 4320 Aerotech Center Way Paso Robles, CA 93447 Telephone: (800) 350-2223 Fax: (805) 238-4201 PAGE 3 OF 4 Page Rev. Date: 10-29-01 BRONCO II & RANGER 2WD FORD V8 ENGINE MOUNTS These mounts are designed to work with both exhaust headers and or stock manifolds. There are two styles of manifolds that fit these vehicles. The Ford Explorer manifolds fit well and provide the correct emission controls for smog in most vehicles.
PAGE 4
ADVANCE ADAPTERS INC. P/N: 713015A P.O. Box 247, 4320 Aerotech Center Way Paso Robles, CA 93447 Telephone: (800) 350-2223 Fax: (805) 238-4201 PAGE 4 OF 4 Page Rev. Date: 10-19-01 BRONCO II & RANGER 2WD FORD V8 ENGINE MOUNTS The photo above and photo left show the radiator and fan clearance. The photo above shows the driver's side firewall modifications. The photo left shows the air duct modifications for valve cover clearance on the passenger side.
