Installation Instructions for Deluxe and Budget Drawers

SS & GZ Series Drawers
Contents:
(1) Drawer Body
(2) Drawer Slides
(4) 1/4 - 20 x 1/2” Bolts with Nuts
Tools Required:
(2) 7/16 open end wrenches
Step 1:
Remove rubber sleeve from alignment pin
as shown (
Figure 1) - Front of Slide shown.
Step 2:
Install roller bearing slides to underside of
table using 1/4 - 20 x 1/2” bolt and nuts
provided. NOTE: Drawer slide must be
positioned to inside of drawer angles.
Alignment pin must be positioned towards
front of table (Figure 2) - Right Drawer Slide
shown.
Step 3:
Fully extend drawer slides towards front of
table and install drawer body between
drawer slides. Align hole (Top front flange of
drawer body) with alignment pin (Figure 3).
Step 4:
Install rubber sleeves onto alignment pins
(Figure 4).

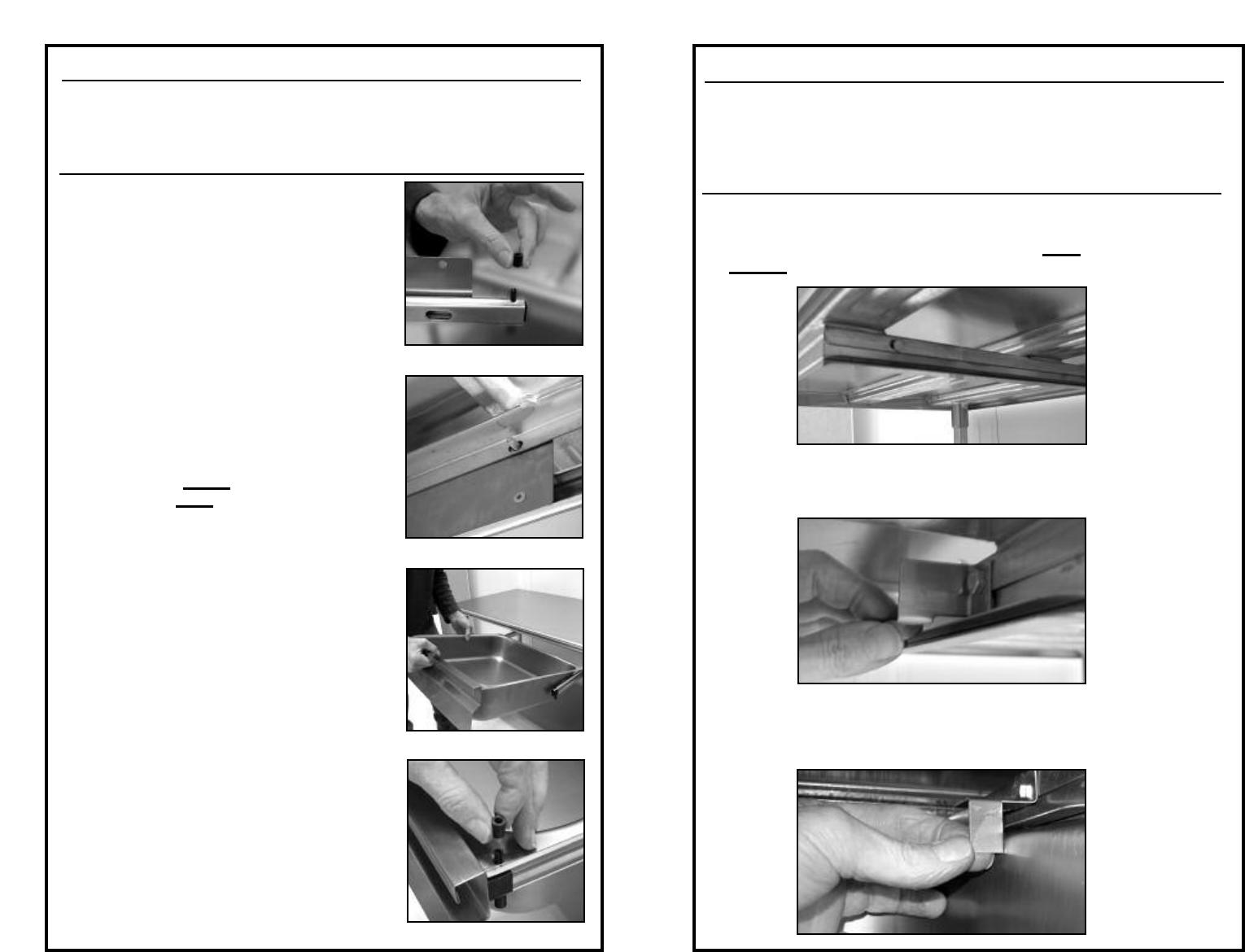

Figure 1
Figure 2
Figure 3
Figure 4
FS & FG Series Drawers
Contents:
(1) Drawer Body
(2) Friction Drawer Slides
(4) 1/4 - 20 x 1/2” Bolts with Nuts
(1) Drawer Retainer Clip
Tools Required:
(2) 7/16 open end wrenches
Step 1:
Install friction slides underneath table top using 1/4 - 20 x 1/2”
bolts and nuts provided. NOTE: Drawer slide must be positioned
to outside of drawer angles (Figure 1) - Left Drawer Slide shown.
Step 2:
Attach drawer retainer clip loosley to front hole of right drawer slide
(Figure 2). DO NOT TIGHTEN.
Step 3:
Pivot retainer clip up - insert drawer body into friction slide.
Reposition clip as shown and tighten all bolts (Figure 3).
Figure 1
Figure 2
Figure 3
