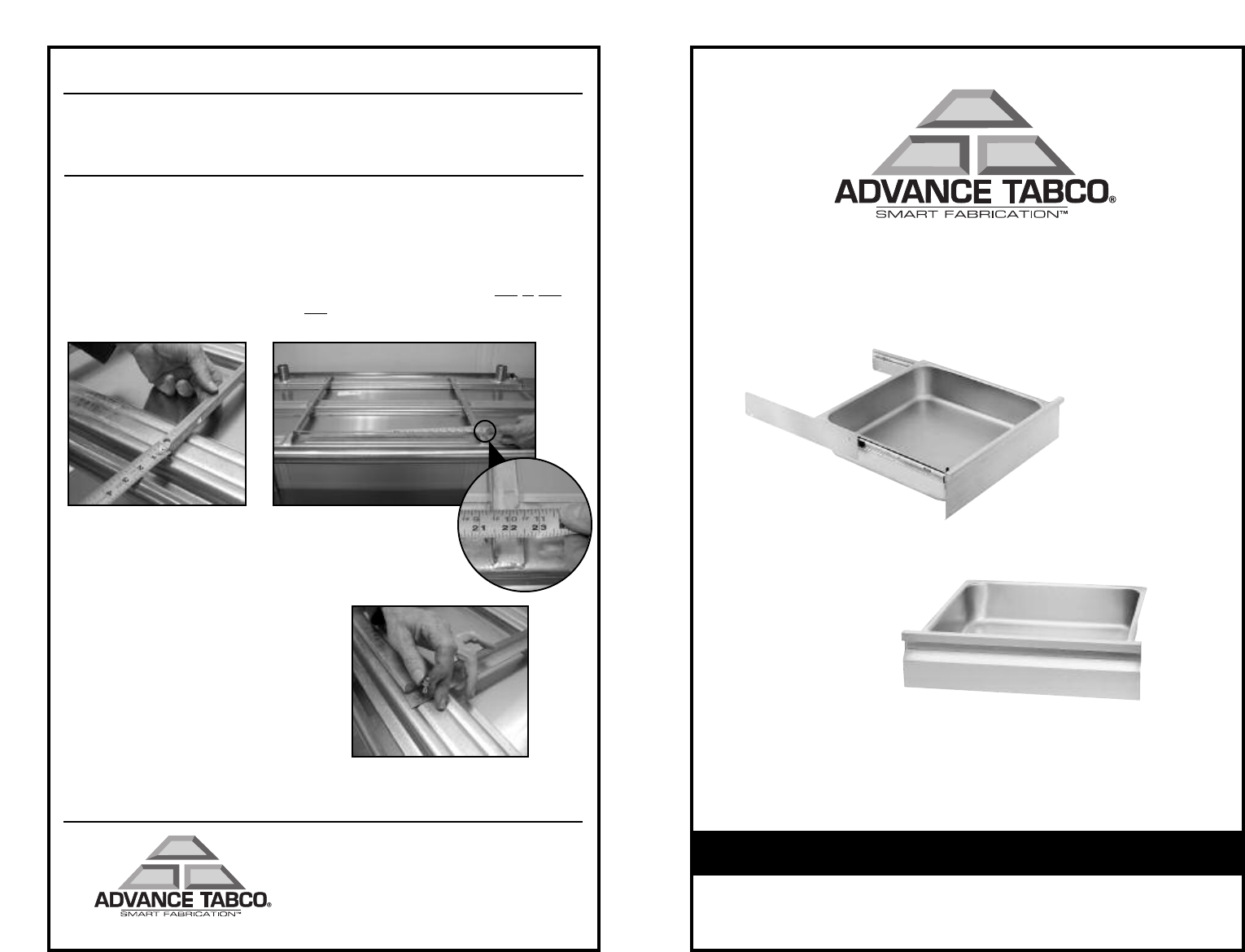

Installation Instructions for Deluxe and Budget Drawers

CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Drawers manufactured by ADVANCE TABCO are designed and constructed for storage.
Applications may include storage of flatware, small utensils, etc. ADVANCE TABCO does
not recommend product use for activities employing harsh and active chemicals.
Please consult factory regarding unusual applications.
Edgewood, New York 11717-8380
© ADVANCE TABCO FEBRUARY 2007
Installation Instructions for
Deluxe and Budget Drawers
Contents:
(2) Drawer Angles
(4) Self Tapping Screws
Tools Required:
Drill with 1/8” Drill Bit
3/8" Socket
TA-90 Drawer Adapter
Step 1:
Turn table top upside down - Position Drawer Adapter (TA-90)
at desired location.
NOTE: Position Drawer Adapters 21-1/2" apart (outside angle to outside
angle) and 3" from front edge of table - mark holes and drill with 1/8"
drill (Figure 2). NOTE: Slotted hole located 3" from end of 30" & 36"
TA-90 Angles OR 1" from end of 24" TA-90 Angles - to be positioned
towards front of table (Figure 1).
Step 2:
Secure TA-90 Drawer Adapter with
Self Tapping Screws provided
(Figure 3).
Step 3:
Install Drawer per referenced instructions. See Page 2 or 3.
Deluxe Drawer:
SS & GZ Series
Budget Drawer:
FS & FG Series
Figure 1
Figure 3
Figure 2
