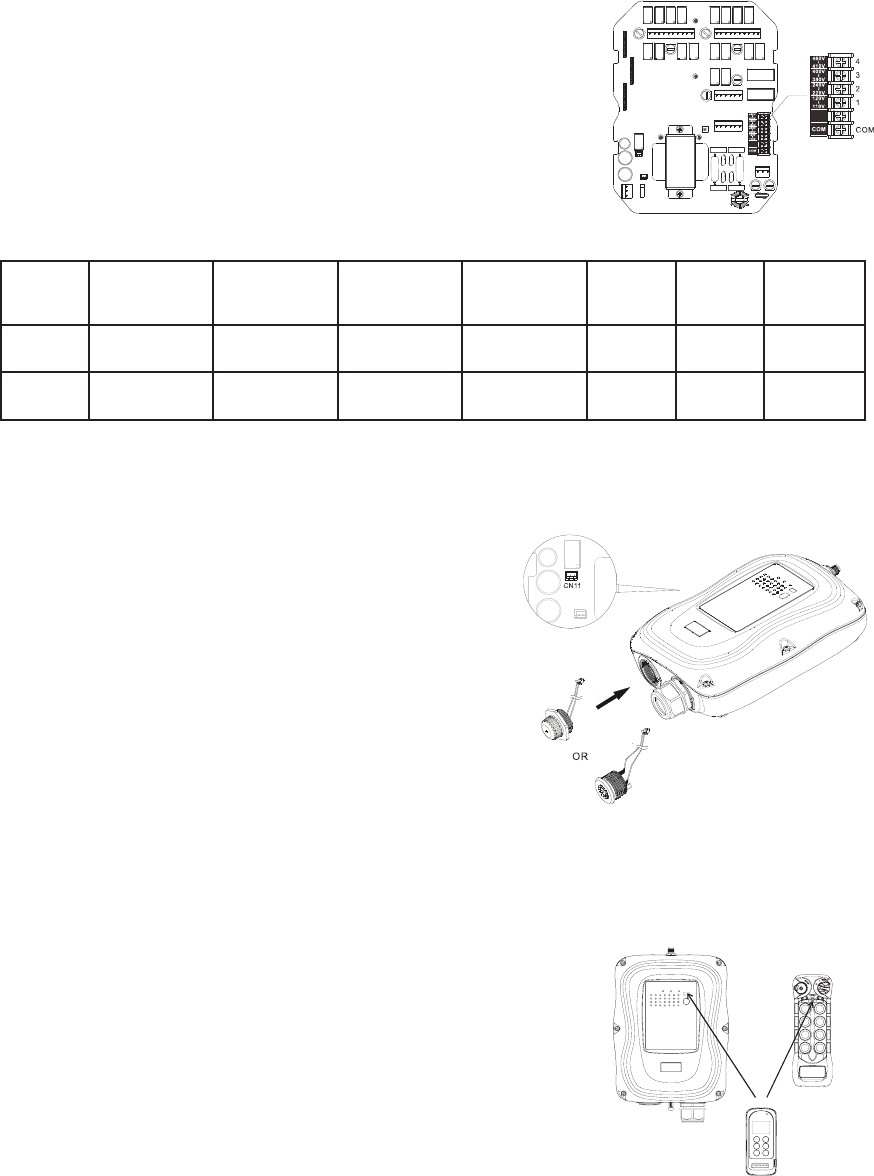

4.2.5. Voltage Settings
Prior to installation always check the voltage setting is correct for your application.
Position 1  110~120VAC
Position 2  220~240VAC or 48VAC* or 24VAC**
Position 3  380~400VAC or 110~120VAC* or 42VAC**
Position 4  410~460VAC or 220~240VAC* or 48VAC** or 9~36VDC***
* For system equipped with 48/110~120/220~240VAC power supply.
** For system equipped with 24/42/48VAC power supply.
*** For system equipped with 9~36VDC power supply.
FUSE # 110~120VAC 220~240VAC 380~400VAC 410~460VAC 24VAC
42 &
48VAC
9~36VDC
F3 ~ F10
5.0A 5.0A 5.0A 5.0A 5.0A 5.0A 5.0A
F1 ~ F2
1.0A 1.0A 1.0A 0.5A 3.0A 2.0A 2.0A
4.2.6. Indicator Light and Buzzer Installation
The miniature indicator light and buzzer can be easily
fitted onto the receiver enclosure. The indicator light or
the buzzer works simultaneously with the receiver MAIN
relays (manufacture preset). When receiver MAIN
relays are activated the indicator light or the buzzer is
also activated, or vise versa. Make sure the indicator
light or the buzzer is connected to the K30 Function
output relay CN11 port located on the AC line filter/relay
board inside the receiver. Please contact ARC
representative if you would like the indicator light or the
buzzer work differently than described above.
4.2.7. Other Function Output Relays Settings
Listed below are other types of functions that can be outputted through the three Function output
relays (K25, K26 and K30) via the infrared IR programmer unit. Please contact ARC
representative for more details.
LV  Function relay closes when receiver voltage is low.
ID  Function relay works simultaneously with all motion commands.
NORMAL  START function + AUX with normal momentary output.
TOGGLE  START function + AUX with toggled/latching output.
TOG&E  START function + AUX with toggled/latching output. The relay
opens when STOP button is pressed down and transmitter power off.
S/P  Function relay closes when START command is executed and
opens only when transmitter power is turned off.
EXT  Function relay works simultaneously with the receiver MAIN relays.
TDM A+B  Function relay closes when selector switch is rotated to the A+B position and opens when
rotate to A or B positions (tandem monitoring output).
HORN  Function relay closes for up to 3 seconds when START command is executed at transmitter power
on and then becomes a normal momentary output thereafter.
G SENSOR  Function relay closes when Zero-G sensor is triggered (receiver MAIN relays deactivated)
and opens when receiver MAIN relays are reactivated.
