COMPETENCE B8871-4 Built-In Electric Oven Operating Instructions
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. 1 3 2 2 The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.
Contents Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 General Overview. . . . . . . . . . . . . . . . . . . . . .
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Defrosting table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 47 48 49 Cleaning and Care . . . . . . . . .
Operating Instructions 1 Safety instructions 5 This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC – 93/68/EEC dated 22.07.1993 CE Marking Directive Electrical safety • This appliance must be only connected by a registered electrician. • In the event of a fault or damage to the appliance: Take the fuses out or switch off.
How to avoid damage to the appliance • Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on the oven floor, as the heat that builds up will damage the oven enamel. • Fruit juices dripping from the baking tray will leave stains, which you will not be able to remove. For very moist cakes, use a deep tray. • Do not put any strain on the oven door when open. • Never pour water directly into the oven when it is hot. This could cause damage to or discoloration of the enamel.
Disposal 2 2 Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance W 1 The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

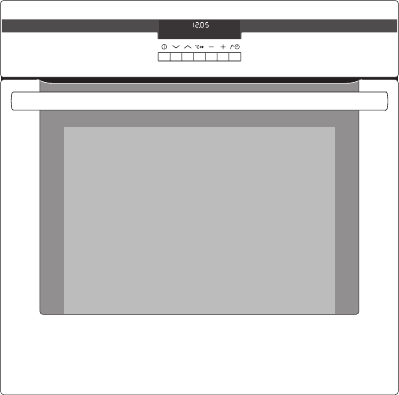

Description of the Appliance General Overview Control panel Door handle Full glass door 8
Control Panel Oven display Function buttons Oven Oven Features Top heat and heating elements Oven lighting Shelf positions Meat probe socket Fat Filter Oven lighting Fan heating element Fan Bottom Heat Oven shelf runners, removable 9
Oven accessories Oven shelf For cookware, cake tins, roasts and grilled foods. Baking tray For cakes and biscuits. Roasting Pan For baking and roasting or as a pan for collecting fat. Meat probe For determining exactly how far joints of meat are cooked.
Before Using for the first time Setting and changing the time 3 The oven only operates when the time has been set. When the appliance is connected to the electrical supply or when there has been a power cut, Time flashes automatically. 1. To change a time that has already been set, first press the On/Off button . Then press the Selection button repeatedly until Time flashes. 2. Using the or button, set the current time. After approx.
Initial cleaning 1 3 Clean the oven before using it for the first time. Important: Do not use caustic or abrasive cleaning agents! These can damage the oven surfaces. For the metal surfaces, use commercially available cleaning agents. 1. Open the oven door. The oven light is lit. 2. Remove all oven accessories, and clean them with warm water and a scouring agent. 3. Wash the oven in the same way, and wipe dry. 4. Wipe the front of the appliance with a damp cloth.
Using the Oven The Electronic Oven Control Temperature/Clock Oven Functions Clock functions/Operating time Heat indicator On/Off Speedcook Oven function selection 3 Selection buttons Clock Functions Meat Probe General instructions • Always switch the appliance on first by pressing the On/Off button. • When the selected function is lit, the oven begins to heat up or the time set begins to count down. • The Operating time display shows how long the oven has been operating.
Selecting the oven function 3 1. Switch on the appliance with the On/Off 2. Press the or button repeatedly until the desired oven function appears. • A suggested temperature appears on the temperature display. • If the suggested temperature is not changed within approx. 5 seconds, the oven begins to heat up. The oven function can be changed while the oven is working. Changing the oven temperature Press the or button, to raise or lower the temperature. The setting changes in steps of 5°C.
Switching off the oven Switch off the appliance using the On/Off button. 3 Cooling fan The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.
3 Heat indicator Indicates warming up When the oven function has been switched on the bars that slowly light up one after the other indicate how far the oven has heated up. Speedcook indicator When the Speedcook function has been switched on, the bars that flash one after the other indicate that fast heating is working. Residual heat indicator When the oven function has been switched off, the bars that are still lit indicate the remaining residual heat in the oven.
Speedcook 1 3 After an oven function is selected, with the use of the additional function Speedcook the empty oven can be pre-heated in a relatively short time. Important: Do not put the food to be cooked into the oven, until Speedcook is completed and the oven is operating using the desired function. 1. Set the desired oven function (e. g. Conventional ). If necessary, change the suggested temperature. 2. Press the Speedcook button. The bars flashing one after another show that Speedcook is operating.
Oven Functions The oven has the following functions: Oven function 18 Application Heating element/ fan Professional hot air For baking on up to three oven levels at the same time. Set the oven temperatures 20-40 °C lower than when using Conventional. Top heat, bottom heat, rear wall heating element, fan Al Gusto hot air For baking on one oven level dishes Bottom heat, rear that require more intensive brown- wall heating eleing and a crispy base.
Inserting the Oven Shelf, Baking Tray and Roasting Pan 3 Shelf runner safety and anti-tip device As a shelf runner safety device, all insertable components have a small curved indentation at the bottom on the right and left-hand edge. Always insert insertable components so that this indentation is at the back of the oven interior. This indentation is also important for preventing the insertable components from tipping.
Inserting/Removing the Grease Filter Only use the grease filter when roasting to protect the rear heating elements from fat splashes. Inserting the grease filter Hold the grease filter by the grip and insert the two mounts downwards into the opening on the rear wall of the oven (fan opening). Taking out the grease filter Hold the grease filter by the grip and unhook it.
Meat probe 1 For switching off the oven when the temperature at the centre of a roast reaches a set temperature. There are two temperatures to be set: – The oven temperature: See Roasting Table – The core temperature: See Meat probe Table Important: Only the meat probe supplied may be used. If replacing, please use only original replacement parts. 1. Switch on the oven with the On/Off button. 2. Push the tip of the meat probe right into the meat so that the tip is in the centre of the meat. 3.
5. Select the desired oven function and temperature. As soon as the core temperature set is reached, an audible signal sounds and the oven switches itself off automatically. 6. To switch off the signal, press any button. 1 Warning: The meat probe is hot. There is a risk of being burned when removing the plug and the tip of the meat probe. 7. Remove the meat probe’s plug from the socket and take the meat out of the oven. 8. Switch off appliance.
Clock Functions Time display Clock Functions Clock Cook time/End time/Operating time Selection buttons Clock Functions Meat Probe Countdown To set a countdown. A signal sounds after the time has elapsed. This function does not affect the functioning of the oven. Cook time To set how long the oven is to be in use. End time To set when the oven is to switch off again. Time To set, change or check the time (See also section “Before Using for the First Time”).
3 3 2 24 How to use the clock functions • After a clock function has been selected, the corresponding function flashes for about 5 seconds. During this period, the desired times can be set or modified using the or button. • When the desired time has been set, the function continues to flash for approx. 5 seconds. After that the function is then lit. The set time begins to run.
Countdown 1. Press the Selection button repeatedly until Countdown flashes. 2. Set the desired Countdown using the or button. After about 5 seconds the display shows the time remaining. Countdown lights up. When 90% of the time set has elapsed, an audible signal sounds. When the time has elapsed, an audible signal sounds for 1 minute. “00.00” and Countdown flash. To stop the flashing and the audible signal: Press any button.
Cook time 1. Select the oven function and temperature. 2. Press the Selection button repeatedly until Cook time flashes. 3. Set the desired cooking time using the or button (max. 09.59 hours). Cook time lights up. When the time has elapsed, “00.00” and Cook time flash. An audible signal sounds for 2 minutes. The oven switches itself off. To stop the flashing and the audible signal: Press any button.
End time 1. Select the oven function and temperature. 2. Press the Selection button repeatedly until End time flashes. 3. Using the or button set the desired switch-off time. End time lights up and the cook time calculated is displayed. When the time has elapsed, “00.00” and End time flash. An audible signal sounds for 2 minutes. The oven switches itself off. To stop the flashing and the audible signal: Press any button.
3 Cook time and End time combined Cook time and End time can be used at the same time, if the oven is to be automatically switched on and off at a later time. 1. Select the oven function and temperature. 2. Using the Cook time function, set the time that the dish needs to cook, for example: 1 hour. 3. Using the End time function, set the time at which the dish should be ready, for example: 14:05. Cook time and End time light up.
Other functions Switching off the display 2 3 You can save energy by switching off the clock display. Switching off the clock display 1. If required, switch off the appliance using the On/Off 2. Press the Selection button and the button at the same time until the display goes out. button. As soon as the oven is switched on again, the display comes on automatically. When the appliance is switched off again, the clock display goes out again.
Child safety device As soon as the child safety device is set, the appliance can no longer be switched on. Activating the child safety device 1. If necessary, switch on the appliance using the On/Off button. No oven function must be selected. 2. Press and hold the Selection and buttons at the same time, until “SAFE” appears in the display. The child safety device is now set. Cancelling the child safety device 1. If necessary, switch on the appliance using the On/Off button. 2.
Button lock To ensure that oven functions set are not accidentally altered. Activating the button lock 1. If necessary, switch on the appliance using the On/Off . 2. Select the oven function. 3. Press and hold the Selection and buttons at the same time, until “LOC” appears in the display. The button lock is now engaged. Cancelling the button lock Press and hold the Selection and buttons at the same time, until “LOC” disappears from the display.
Mechanical Door Lock When the appliance is delivered, the door lock is deactivated. Activate the door lock Pull the safety catch forwards until it locks in place. Open the oven door: 1. Shut the door. 2. Press the safety catch and keep it depressed. 3. Open the doors. Close the oven door Close the door without pressing the safety catch. 3 32 Deactivating the door lock Press the safety catch back into the panel. Switching off the appliance does not cancel the mechanical door lock.
Uses, Tables and Tips Baking Oven function: Professional hot air or Conventional Baking tins • For Conventional dark metal and non-stick tins are suitable. • For Professional hot air bright metal tins are also suitable. Oven levels • Baking with Conventional • With Professional hot air the same time: 1 baking tray: e.g. oven level 3 is possible on one oven level. you can bake on up to 3 baking trays at 1 cake tin: e.g. oven level 1 2 baking trays: z. g.
3 2 34 General Instructions • Insert the tray with the bevel at the front. • With Conventional or Professional hot air you can also bake with two tins next to one another on the oven shelf at the same time. This does not significantly increase baking time. When frozen foods are used the trays inserted may distort during cooking. This is due to the large difference in temperature between the freezing temperature and the temperature in the oven.
Baking table Baking on one oven level Type of baking Oven function Oven level Temperature Time °C Hr: Mins.
Type of baking Fruit flans (made with yeast dough/ sponge mixture)2) Oven function Oven level Temperature Time °C Hr: Mins. Conventional 3 170 0:35-0:50 Professional hot air 3 160-170 0:40-1:20 Yeast cakes with delicate toppings (e.
Baking on more than one oven level Professional hot air Type of baking Professional hot air Shelf positions from bottom 2 levels 3 levels Temperature in °C Time Hours: Mins.
Tips on Baking Baking results Possible cause Remedy The cake is not browned enough underneath Wrong oven level Place cake lower The cake sinks (becomes soggy, lumpy, streaky) Oven temperature too high Use a slightly lower setting Baking time too short Set a longer baking time Baking times cannot be reduced by setting higher temperatures Too much liquid in the mixture Use less liquid.
Table Al Gusto hot air Shelf position Temperature °C Time Hr: Mins.
Table for Bakes and Gratins Shelf position Temperature °C Time Hours mins.
Roasting Oven function: Conventional or Rotitherm Insert the grease filter when roasting! Roasting dishes • Any heat-resistant ovenware is suitable to use for roasting (please read the manufacturer's instructions). • Large roasting joints can be roasted directly in the roasting tray or on the oven shelf with the roasting tray placed below it. • For all lean meats, we recommend roasting these in a roasting tin with a lid. This will keep the meat more succulent.
Roasting table Type of meat Quantity Ovenfunction Shelf position Temperature °C Time Hours mins. Beef Pot roast 1-1.5 kg Conventional 1 200-250 2:00-2:30 per cm. of thickness Roast beef or fillet - rare per cm. of thickness Rotitherm 1 1902001) - medium per cm. of thickness Rotitherm 1 180-190 0:06-0:08 - well done per cm. of thickness Rotitherm 1 170-180 Shoulder, neck, ham joint 1-1.5 kg Rotitherm 1 160-180 1:30-2:00 Chop, spare rib 1-1.
Type of meat Shelf position Temperature °C Time Hours mins. Quantity Ovenfunction Poultry portions 200-250g each Rotitherm 1 200-220 0:35-0:50 Half chicken 400-500g each Rotitherm 1 190-210 0:35-0:50 Chicken, poulard 1-1.5 kg Rotitherm 1 190-210 0:45-1:15 Duck 1.5-2 kg Rotitherm 1 180-200 1:15-1:45 Goose 3.5-5 kg Rotitherm 1 160-180 2:30-3:30 Turkey 2.5-3.5 kg Rotitherm 1 160-180 1:45-2:30 Turkey 4-6 kg Rotitherm 1 140-160 2:30-4:00 1-1.
Low temperature cooking 1 3 3 Oven function: Low temperature cooking With the Low temperature cooking oven function, meat becomes beautifully tender and remains particularly succulent. We recommend Low temperature cooking for lean, tender pieces of meat and fish. Low temperature cooking is not suitable for e.g. pot roast or fatty roast pork. The oven heats up to the selected or pre-set temperature. When this temperature is reached, an audible signal sounds.
Meat probe Table Food to be Cooked Meat Core Temperature Beef Rib steak or fillet steak rare medium well done 45 - 50 °C 60 - 65 °C 75 - 80 °C Pork Shoulder of pork, ham joint, neck 80 - 82 °C Chop (saddle), smoked pork loin 75 - 80 °C Meat loaf 75 - 80 °C Veal Roast veal 75 - 80 °C Knuckle of veal 85 - 90 °C Mutton / lamb Leg of mutton 80 - 85 °C Saddle of mutton 80 - 85 °C Roast lamb, leg of lamb 75 - 80 °C Game Saddle of hare 70 - 75 °C Leg of hare 70 - 75 °C Whole hare 70 - 75 °
Grill Sizes 1 3 Oven function: Grill ture setting or Dual grill with maximum tempera- Important: Always grill with the oven door closed. The empty oven should always be pre-heated with the grill functions for 5 minutes. • For grilling, place the shelf in the recommended shelf position. • Always insert the tray for collecting the fat into the first shelf position from the bottom. • The grilling times are guidelines. • Grilling is particularly suitable for flat pieces of meat or fish.
Defrosting Oven function: Defrost (no temperature setting) • Unwrap the food and place it on a plate on the oven shelf. • Do not cover with a plate or bowl, as these can substantially lengthen the defrosting time. • For defrosting, place the shelf in the 1st oven level from the bottom. Defrosting table Dish Defrosting Further time defrosting mins. time (mins.
Drying Oven function: Professional hot air • Use oven shelves covered with greaseproof paper or baking parchment. • You get a better result if you switch the oven off halfway through the drying time, open the door and leave the oven to cool down overnight. • After this finish drying the food to be dried.
Making Preserves Oven function: Bottom heat • For preserving, use only commercially available preserve jars of the same size. • Jars with twist-off or bayonet type lids and metal tins are not suitable. • When making preserves, the first shelf position from the bottom is the one most used. • Use the shelf for making preserves. There is enough room on this for up to six 1-litre preserving jars. • The jars should all be filled to the same level and clamped shut.
Preserves table The times and temperatures for making preserves are for guidance only. Preserve Temperature in°C Cooking time until simmering in mins. Continue to cook at 100°C in mins.
Cleaning and Care 1 Warning: For cleaning, the appliance must be switched off and cooled down. Warning: For safety reasons, do not clean the appliance with steam jet or high-pressure cleaning equipment. Attention: Do not use any scouring agents, sharp cleaning tools or scourers. Outside of the appliance • Wipe the front of the appliance with a soft cloth and warm water and washing up liquid. • For metal fronts, use normal commercially available cleaning agents.
Pyrolytic cleaning 1 1 3 3 3 52 Warning: The oven gets very hot during this process. Keep small children away. Important! All removable parts including the side rails must be removed from the oven before using the pyroluxe function. If you use the oven shelf runners that are available as special accessories, these must be removed before pyrolytic cleaning. If the side rails/oven shelf runners are still in place, ‘C1’ appears in the time display.
Shelf Support Rails The shelf support rails on the left and right hand sides of the oven can be removed for cleaning the side walls. Removing the shelf support rails First pull the front of the rail away from the oven wall (1) and then unhitch at the back (2). 3 Fitting the shelf support rails Important! The rounded ends of the guide rails must be pointing forwards! To re-insert, first hook the rail into place at the back (1) and then insert the front and press into place (2).
Oven Lighting 1 3 Warning: There is a danger of electric shock! Prior to changing the oven light bulb: – Switch off the oven! – Remove the fuses in the fuse box or switch off the circuit breaker. Place a cloth on the oven floor to protect the oven light and glass cover. Replacing the oven light bulb/ cleaning the glass cover 1. Remove the glass cover by turning it anti-clockwise and then clean it. 2. If necessary: Replace bulb with a 40 watt, 230 V, 300 °C heat-resistant oven light bulb. 3.
Oven door For easier cleaning of the oven interior the oven door of your appliance can be taken off its hinges. Removing the oven door from its hinges 1. Open the oven door as far as it will go. 2. Undo the clamping levers (A) on both door hinges fully. 3. Close the oven door as far as the first position (approx. 45°). 3 4. Take hold of the oven door with a hand on each side and pull it away from the oven at an upwards angle (Take care: It is heavy).
Hanging the oven door back on its hinges 1. From the handle side take hold of the oven door with a hand on each side and hold at an angle of approx. 45°. Position the recesses on the bottom of the oven door on the hinges on the oven. Let the door slide down as far as it will go. 2. Open the oven door as far as it will go. 3. Fold up the clamping levers (A) on both door hinges back into their original positions. 4. Close the oven door.
Oven door glass 1 The oven door is fitted with four panels of glass mounted one behind the other. The inner panels can be removed for cleaning. Important Rough handling, especially around the edges of the front panel, can cause the glass to break. Removing door glass panels 1. Open the oven door as far as it will go. 2. Undo the clamping levers (A) on both door hinges fully. 3. Close the oven door as far as the first position (approx. 45°). 4.
Cleaning the door glass panels Clean the door glass panels thoroughly with a solution of water and washing up liquid. Then dry them carefully. 3 Putting the door glass panels back. 1. From above insert the door glass panels one after the other into the door profile at the bottom edge of the door at an angle and lower them. The two smaller panels first, then the larger panel. 2.
3. Open the oven door as far as it will go. 4. Fold up the clamping levers (A) on both door hinges back into their original positions. 5. Close the oven door.
What to do if … Problem The oven does not heat up Possible cause Remedy The oven is not switched on Switch the oven on The clock is not set Set the current time on the clock The required settings have not been set Check the settings The oven’s safety cut-out has been tripped See “Safety fuse” The fuse in the house’s electrical Check fuse.
1 3 3 If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department. Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs. If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.
Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. In order to be able to assist you quickly, we require the following information: – Model description – Product number (PNC) – Serial number (S No.
