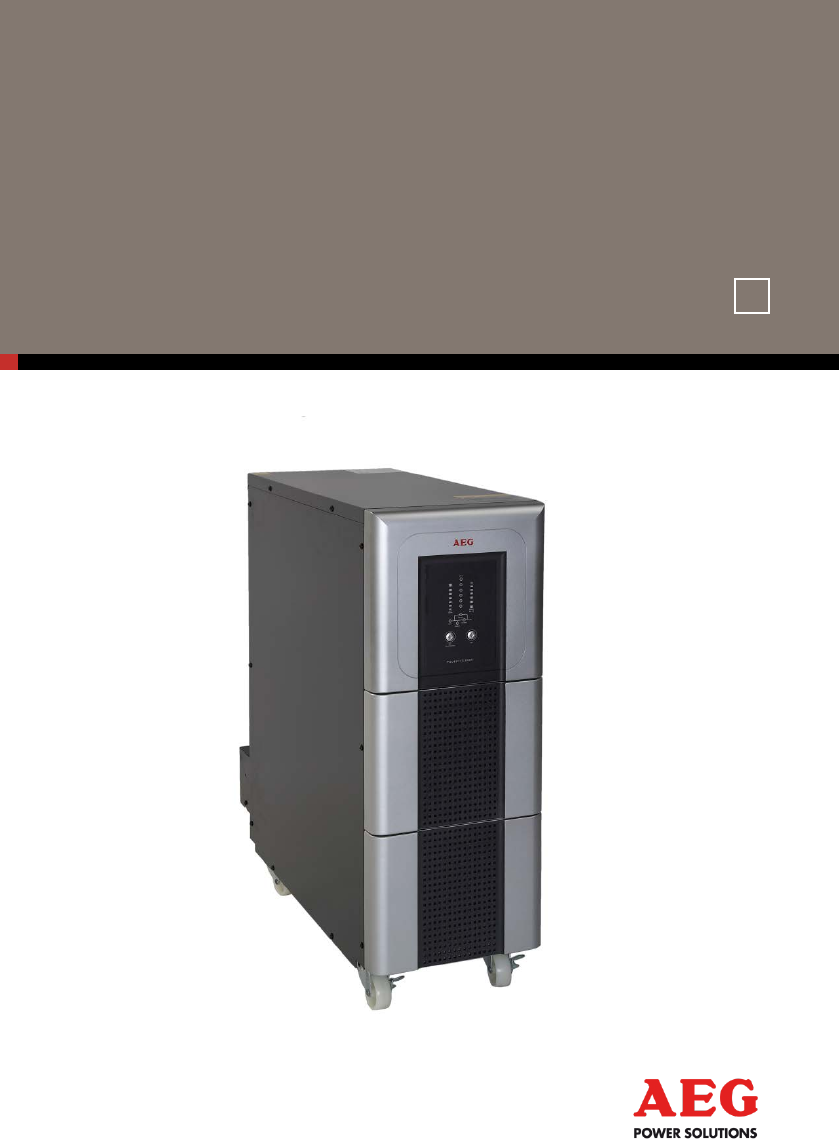

OPERATING INSTRUCTIONS Protect C Protect C. 6000 (S) Protect C. 6000 BP Protect C. 10000 (S) Protect C.
Thank you for deciding to purchase the Protect C UPS from AEG Power Solutions. The following safety precautions are an important part of these operating instructions. They are designed to help you avoid problems caused by operating errors and to Protect you against any possible hazards.
1 Notes on these Operating Instructions Duty to Provide Information These operating instructions will help you to install and operate the Uninterruptible Power Supply (UPS) Protect C. 6000 (S) or Protect C. 10000 (S) as well as the associated external battery units Protect C. 6000 BP or Protect C. 10000 BP – all referred to as Protect C in this document – safely and properly, and for its intended purpose.
The warranty does not apply to damage caused by noncompliance with these instructions (such damage also includes damaging the warranty seal). AEG will accept no liability for consequential damage. AEG reserves the right to rescind all obligations such as warranty agreements, service contracts, etc.
Table of Contents 1 2 Notes on these Operating Instructions ............................4 General Information .......................................................8 2.1 Technology ................................................................... 8 2.2 System Description ....................................................... 9 2.3 Technical Data............................................................ 12 3 Safety ..........................................................................16 3.
6 Electrical Start-Up .......................................................34 6.1 Operating ................................................................... 36 6.1.1 Normal Operation ...........................................36 6.1.2 Battery Operation / Autonomy Operation ........37 6.1.3 Bypass Operation...........................................38 6.1.4 Manual bypass ...............................................39 6.1.5 Unit Overload .................................................
2 General Information 2.1 Technology i Protect C is an Uninterruptible Power Supply (UPS) for essential loads such as PCs, workstations, servers, network components, telecommunication equipment and similar devices.
EN View of the Protect C components 2.2 System Description The UPS is connected between the public utility's mains and the loads to be Protected. The power section of the rectifier converts the mains voltage to DC voltage for supplying the inverter. The circuit technology used (PFC) enables sinusoidal current consumption and therefore operation with little system disturbance.
voltage system on the Protected busbar is of the highest quality and availability. In the event of mains faults (e.g. current failures), the voltage continues to be supplied from the inverter to the load without any interruption. From this point onwards, the inverter draws its power from the battery instead of the inverter. No switching operations are necessary; this means there is no interruption in the supply to the load. The automatic electronic bypass serves to increase the security of supply further.
Parallel system with Protect C. 6000 (S) Number of UPS units Available Power Active redundancy level 1 2 3 0 6 kVA 12 kVA 18 kVA 1 --- 6 kVA 12 kVA 2 --- --- 6 kVA Parallel system with Protect C.
2.3 Technical Data Type power Protect C. 6000 (S) 6000 VA (cos ϕ = 0.7 lag.) 4200 W Protect C. 10000 (S) 10000 VA (cos ϕ = 0.7 lag.) 7000 W UPS Input (single phase) 1ph ~ / N / PE Rated connection voltage Voltage tolerance range without battery operation Nominal frequency 220 / 230 / 240 Vac 176 Vac – 276 Vac ± 3 % Frequency tolerance range Curr. consumption (full load) Protect C. 6000 (S) Protect C. 10000 (S) Input power factor 50 Hz / 60 Hz (automatic detection) ± 4 Hz 31 A 50 A λ ≥ 0.
Overload behaviour in battery mode Short circuit behaviour up to 105 % continuous; > 105 % for 10 s 3 x IN for 300 ms Battery Autonomy time (full load with internal battery) Protect C. 6000 8 min. Protect C. 10000 5 min. Autonomy times with external optional battery expansions (only for Protect C. models): Coupled battery modules 1 2 3 4 Autonomy times (full load) C.6000 C.10000 26 min. 47 min. 67 min. 94 min. 16 min. 27 min. 42 min. 53 min. Rated direct voltage (intermediate circuit) Protect C.
Type Sealed, maintenance-free Protect C. 6000 Protect C. 10000 Protect C. 6000 BP Protect C. 10000 BP 12 V 7.2 Ah x 20 12 V 9 Ah x 20 12 V 7.2 Ah x 20 12 V 9 Ah x 20 “S” versions with boosted battery charger for charging external battery (no integrated battery) Communication Ports RS232 SUB-D (9-pole) Communication slot for expansion (e.g. AS/400 / USB / SNMP, ...
Max. site altitude up to 1000m at rated power; if the UPS is used above than 1000m, decreasing as follows: Altitude (m) 1000 1500 2000 2500 3000 Power 100% 95% Colour Weight: Protect C. 6000 Protect C. 6000 S Protect C. 6000 BP Protect C. 10000 Protect C. 10000 S Protect C. 10000 BP 90% 85% 80% Blackline 90 kg 35 kg 65 kg 93 kg 38 kg 68 kg EN Dimension W x H x D: Protect C. 6000 (S / BP) Protect C.
3 Safety 3.1 General Safety Instructions Canonical operation and maintenance as well as the complying with afffiliated security regulations are imminent for the Protection of personal and the readiness to use of the unit. The personnel that sets up, activates, operates and maintains the unit has to be aware and has to stick to the security regulations. Any activity may only be performed by qualified personnel with designated and intact tools, appliances, measuring units and expandable items.
♦ Assure for no power ♦ Ground and short circuit system ♦ Cover or seals adjacent components still under power 3.3 Qualified personal The Protect C may only be transported, setup, connected and maintained by qualified personnel, that is aware do the legal security and installation regulations and knows how to apply them. All executions have to be supervised by responsible qualified personnel.
Protect C. may only be operated with or connected to a 220 V / 230 V / 240 V mains with Protective grounding using a CE marked mains connection cable with PE conductor that has been tested in accordance with national standards. Danger! Risk of burning! The battery has powerful short circuit currents.
♦ Do not block the air vents of the unit! Keep children away from the unit and ensure that objects are never inserted through the air vents! ♦ Do not connect household appliances such as hairdryers to the UPS! Also take care when working with motor loads. It is essential to avoid back-feeding the inverter, e.g. if the load is intermittently operated in regenerative mode.
3.
4 Set-Up and Operation 4.1 Unpacking and Inspection The device has been fully tested and inspected. Although the device has been packed and shipped with the usual degree of care, damage during transport cannot be ruled out completely. i Claims for damage during transport must always be made with the transport company! Check the shipping container for damage on arrival.
Handle the components with care. Please take into account the weight. It may be necessary to engage the help of a second person. 4.2 Transportation to the site The Protect C provides for easy transportation to the site of installation transport rolls.
4.3 Point of Installation Note the following points when setting up the UPS system and its external battery units (special accessories): ♦ The contact surface must be smooth and in level. It must also be sufficiently strong and sturdy to avoid vibration and shock loads. ♦ Make sure the mounting is able to support the weight: This is particularly important in conjunction with external battery units (special accessories). ♦ Set up the units so that adequate air circulation is assured.
4.4 Overview: Connections, Operating / Display Elements 4.4.1 Front view Protect C. 6000 (S) Protect C.
4.4.2 Display 12 11 10 9 8 7 3 6 4 5 1 2 Explanations 1. OFF - Pushbutton 2. ON / Alarm off - Pushbutton 3. Orange LED bypass 4. Green LED inverter 5. Orange LED for battery mode (Battery) 6. Green LED for net state (Line) 7. - 11. Bar graph LEDs for UPS battery utilization resp. capacity (remaining autonomy time) 7. LED load (0-35%) battery capacity (81-100%) 8. LED load (36-55%) battery capacity (61-80%) 9. LED load (56-75%) battery capacity (41-60%) 10.
4.4.3 Rear view (connections): Protect C. 6000 (S) Protect C.
Comments: 1. Connectors for mains input and output, additional connectors for setting single and parallel operation 2. Manual bypass switch 3. Mains input circuit breaker 4. Connection for external battery module 5. Connector for parallel operation 6. Communication slot for optional expansion cards, e.g. SNMP, USB, AS/400, … 7. Communication interface RS232 (9-pin SUB-D socket) 8.
5 Commissioning Attention Before any work is started, ensure that the cables are free of tension and no power can be switched on. i To prevent a deformation of the bus-bar and to keep the foot of the terminal free of torsion, it is recommended to hold the cable when removing the terminal screw. The grounding Protection prevents inappropriately high contact tension with reachable metal pieces. The grounding of the Protect C is realised via the grounding screw / PE).
5.1 Protection for the personnel Before setting up the UPS appliance and the external battery modules (optional accessory) check the following: ♦ ♦ ♦ ♦ Disconnect the unit from the mains. Protect against reconnection. Assure for no power. Ground an short circuit system. ♦ Cover or seals adjacent components still under power. 5.2 Mains connection (general) To guarantee the correct operation of the UPS and the optional accessories it is necessary to supply the mains line with the respective Protection.
5.2.2 Connection diameter and Protection Please gather the minimal dimensions from the following table: Type Protect C. 6000 (S) C. 10000 (S) Diameter Mains line Loads connector 6 mm2 6 mm2 10 mm 10 mm2 Protection Mains fuse 32 A 50 A 2 Connection diameter and Protection 5.3 One phase mains connector 5.3.
5.3.2 Connection of the one phase mains connector To Protect the personnel during installation, ensure that the connection takes place und the following precautions: ♦ No mains power present. ♦ Loads are switched of. ♦ The Protect C is switched of (display completely off). To activate the Protect C execute the following steps: ♦ Set Manual bypass „Maintenance Switch“ to “Bypass” on the rear of the UPS. Remove the four screws of the cover (Pos. 2, page 26/27). ♦ Set the mains input circuit breaker (Pos.
recommended. In the sub distribution the following indications are necessary: ♦ Maximal total load ♦ Maximal total load for the separate load power circuits i 5.3.4 In the case of one common distributor cabinets (Circuits for mains and UPS power) each has to be labelled separately (Mains or UPS). Connection of the loads To Protect the personnel during installation, ensure that the connection takes place und the following precautions: ♦ No mains power present. ♦ Loads are switched of.
Protect C. with 1 battery expansion EN Fig.: Protect C. 6000 and C. 6000BP 1. Check the correct fit of the UPS and the battery unit (the casings e.g. have to have the same dimension). 2. Now connect both battery connectors using the supplied battery connection cable. When connecting, make sure that you push the plug quickly and firmly in the battery connectors. Proceed analogue accordingly for a 2. and 3. battery expansion. 5.
6 Electrical Start-Up Verify that UPS voltage of your country corresponds to your equipment voltage. The default setting is set to 230 V. Output voltage on the UPS system can be adjusted with the software “CompuWatch” in steps of 220 Vac and 240 Vac. Turn on the Protect C to the mains 1. 2. 3. 4. 5. i Ensure, that the connection have been realised according to the installation guide. Ensure, that all loads are switched of.
i 8. i Please shut down the entire system if you cannot solve any problems which occur. Press the OFF button for about 2 seconds. Disconnect the UPS from the mains by pressing the mains input circuit breaker (Pos 3, page 26/27). Please contact our hotline (page 5). When all displays are lit as described, switch on your loads one after the other. Note the maximum permitted UPS load when doing this.
6.1 Operating The following operation modes are possible: Operation with existing mains (6.1.1) Operation with faulty mains (6.1.2) Operation with faulty inverter (6.1.3) Manual bypass (6.1.4) 6.1.1 Normal Operation Energy flow with existing mains Manual bypass path REC Mains SBS INV Mains input circuit breaker Manual bypass Charger Shematic illustration Battery Safety bus-bar Load Once you have connected the UPS to a suitable mains connection, you can start operation using the UPS main switch.
6.1.2 Battery Operation / Autonomy Operation Energy flow with faulty mains Manual bypass path REC Mains SBS INV Mains input circuit breaker Manual bypass Charger Shematic illustration Battery Safety bus-bar Load The mains is not within the required tolerance range or has failed. In this case power is supplied to the inverter from the charged battery without interruption. The power supply to the loads is therefore also ensured in the event of a mains failure.
the inverter and the battery charger takes over charging the battery. The LED bargraph (LED chain on the left hand side of the ON / OFF button) show during operation the actual utilization of the UPS (chapter 8.1.1, page 45). 6.1.3 Bypass Operation Energy flow with faulty rectifier Manual bypass path REC Mains SBS INV Mains input circuit breaker Manual bypass Charger Shematic illustration Battery Safety bus-bar Load If the inverter is overloaded or if overtemperature is detected, e.g.
the frequency and phase of synchronised with the mains. i 6.1.4 the inverter voltage is The LED bar graph functions as display for USP utilisation. The signal goes off during this operations status every 2 seconds.
Do not connect any household appliances or machine tools to the UPS. Never connect or switch on any additional loads to the UPS if there is a mains failure, i.e. if the UPS is working in emergency power operation! As a rule, if there has never been an overload during normal operation, there will not be one during battery operation either. The signalling of the fault LED in combination with a continuous alarm points out a switching of fault. Follow the instructions in chapter 8.2.
7 Interfaces and communication 7.1 Computer interfaces RS232 The UPS offers various interfaces to manage the system and to comfortable readout state information and important parameters. The communication protocol is optimized for operation with the shutdown and UPS management software “CompuWatch” from AEG. To connect the UPS to your computer use the provided RS232 communication cable by attaching them to a free port of your pc.
In conjunction with the "intelligent" UPS, this ensures that the availability of IT components and data security is guaranteed. The “CompuWatch” shutdown and management software supports a diverse range of operating systems, including Windows NT/2000/XP, Windows Vista/7/8, Linux SUSE, Linux RedHat, Novell Netware, IBM AIX, HP-UX, SUN Solaris, Mac OS X, ... For details on the installation under the different operating systems, please refer to the operating manuals on the CD.
8 Signalling and Error Correction 8.1 Signalling 12 11 10 9 8 7 3 6 4 EN 5 1 2 1. 2. 3. 4. OFF push button (OFF): Press the OFF switch for about 2 seconds to switch on the UPS ON push button (ON): Press the ON switch for about 2 seconds to switch off the UPS. Deactivate acoustic alarm: By pressing this switch for about 2 seconds during the alarm an acoustic alarm can be deactivated. UPS Test: To execute an UPS self test press this button for about 2 seconds in the normal operation mode.
5. LED Battery: The orange-coloured LED lights up when power is supplied by the batteries. 6. LED Line (Mains status): The green LED lights up if mains voltage is in a specified range of tolerance. 7. -11. LED Bargraph for UPS battery utilization resp. capacity (remaining autonomy time) These LEDs show the load of the UPS system if the mains power is available (normal operation): 11. orange LED 96%-105% 10. green LED 76%-95% 9. green LED 56%-75% 8. green LED 36%-55% 7.
Table overview of LED display / alarm signals LED Display (see chapter 8 on page 42) Alarm signal No. Operation status 1 2 3 4 5 Norm,al operation (Mains there) 12 11 10 6 7 8 9 Battery operation 8.1.
Continuation overview of LED display / alarm signals LED Display (see chapter 8 on page 42) Alarm signal No. Operation status 12 11 10 9 8 7 6 5 4 3 19 Output short circuit Continous alarm signal 20 BUS voltage anomalous Continous alarm signal 21 DC circuit faulty; pos.
8.2 Fault Diagnosis / Fault Rectification The PROTEC C generates detailed error messages. Support personal can localise and interpret faults quickly and precisely. Search for the right method and solutions recommendations referring to the errors according to chapter 8.1.1. 8.2.1 Error Messages Problem Cause Solution UPS does not start. No indication, no warning tone even though system is connected to mains power supply.
Emergency supply period shorter than nominal value. Batteries not fully charged Charge the batteries for / batteries old resp. defect at least for the charging time acc. Chapter 2.3 and then check capacity. If the problem still persists, consult your dealer. LED “Line” and LED “Fault” light up, continous tone (Error No. 17). Cutoff because of UPS internal overtemperature detection.
9 Parallel operation 9.1 Functionality Protect C. 6000 (S) and C. 10000 (S) was developed for the parallel operation in n+x technology (”n“ stands for the number of necessary appliances for load supply, “x“ stands for the redundancy level). Up to three appliances of the same type can be connected in parallel to raise the output power and/or to receive a higher availability. EN The following constellations are possible according to the n+x technology: 1 + 0 Use of 1 unit max.
The active redundant parallel operation will switch automatically to the increase power mode if more power is required at the output of the UPS. This implements that the redundancy level decreases or will diminish completely. On the other hand the level of redundancy of the UPS will increase if the power consumption on the output decreases.
The first step is to remove the parallel port cover (Pos 5, page 26/27) and to connect the UPS with each other with the parallel operation line. With two units use one, with three units use two parallel operation lines (don’t set up a ring structure!) (Communication) parallel operation interconnection ... with 2 units: ... with 3 units: After connecting the units with the parallel operation line close the parallel operation cover again. Turn the cover by 180° such that the notches show to the bottom.
5. 6. i position „bypass” i.e. that the mains supplies the loads bus-bar. Connect the separator of the output of each UPS, i.e. connect every output of a UPS with the parallel operation bus-bar. Put in the prefuse of the low voltage main distribution field (there, where the UPS systems are connected on the input side with the mains), resp. switch on the corresponding line fuse. The load supply now takes place via the central external manual bypass.
10. i Now switch on the inverters of each UPS. To do this, press and hold the UPS ON switch one by one for about 2 seconds. When being powered on, the UPS will perform self-diagnosis, the Load/Battery level LEDs will be turned on and then off one after another in ascending order. After synchronising all inverters successfully the LED “Inverter” will go on after some seconds on each UPS, with the UPS in parallel normal mode. The loads bus-bar is supplied by the UPS.
bypass for the loads is done, i.e. activation of the manual bypass operation, suspension of the supply for the load by the UPS bus-bar. The clearance of the voltage of each UPS is realised in the low voltage distribution. Now the expansion resp. the reduction of the parallel compound can be executed now. Watch out for the bridge between “JP1” and JP2” and the parallel operation line. The activation follows the steps in chapter 9.3.1.
10 Maintenance The Protect C consists of advanced and resistant components. To guarantee a continuous and high availability it is recommended to check the unit (especially the batteries and the fans) in regular intervals (at least every 6 months). CAUTION: Before going through the next step disconnect the Protect C from the mains. 10.1 Charging the Battery The battery is automatically charged when the mains is present, irrespective of the operating mode.
♦ there is any mechanical damage or foreign bodies can be found in the system, ♦ any conductive dirt or dust has accumulated in the unit, ♦ accumulation of dust affects heat supply and dissipation. CAUTION: Protect C must be disconnected from the power supply prior to carrying out the following work. If large quantities of dust have accumulated, the unit should, as a precaution, be cleaned with dry compressed air, in order to ensure adequate heat dissipation.
11 Storage, Dismantling and Disposal 11.1 Storage Long storage times without charging or discharging the battery at regular intervals may lead to permanent damage of the battery. If the battery is stored at room temperature (20° C to 30° C) it will automatically discharge at a rate of 3 - 6% per month due to internal reactions. Storing the battery at temperatures above room temperature should be avoided. A high storage temperature also means greater battery self-discharge.
12 Glossary 12.1 Technical terms Appliance Protection Surge technology term The conventional mains surge Protection consists of an mains earthwire (class B), an overvoltage Protection (class C) and an appliance Protection (class D) – see also e.g. under http://www.phoenixcontact.
EN 59
