Protect C. with 1 battery expansion

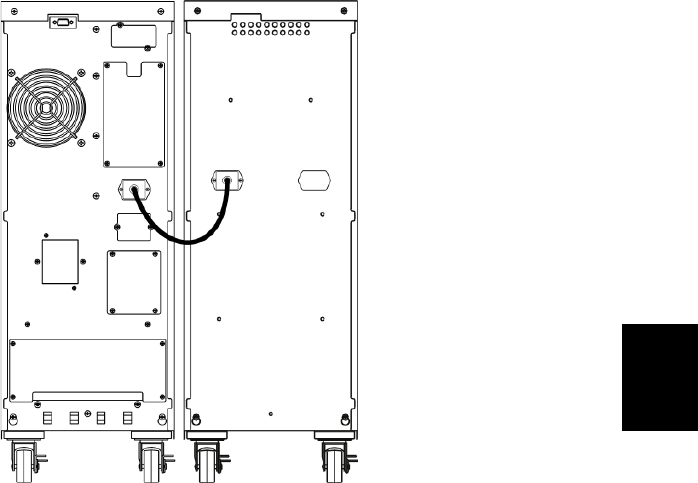

Fig.: Protect C. 6000 and C. 6000BP
Check the correct fit of the UPS and the battery 1.
unit (the casings e.g. have to have the same
dimension).
Now connect both battery connectors using the 2.
supplied battery connection cable. When
connecting, make sure that you push the plug
quickly and firmly in the battery connectors.
Proceed analogue accordingly for a 2. and 3. battery
expansion.
5.5 Mechanic blocking of the Protect C
After finishing the connection procedure fix the connection
terminal cover again. At the final position fix the cabinets with
the breaks against moving away.
