Protect PV.600/800 OD Series - Operating Instructions
8000041160 BAL Page 31 of 100
4.5. LV Main Distributor
The LV main distributor (LVMD) is located in the AC cabinet on the
left-hand side of the OD housing.
1 2 3
4
5
6
7
8
2
8/9 2 13 12 11 10 9

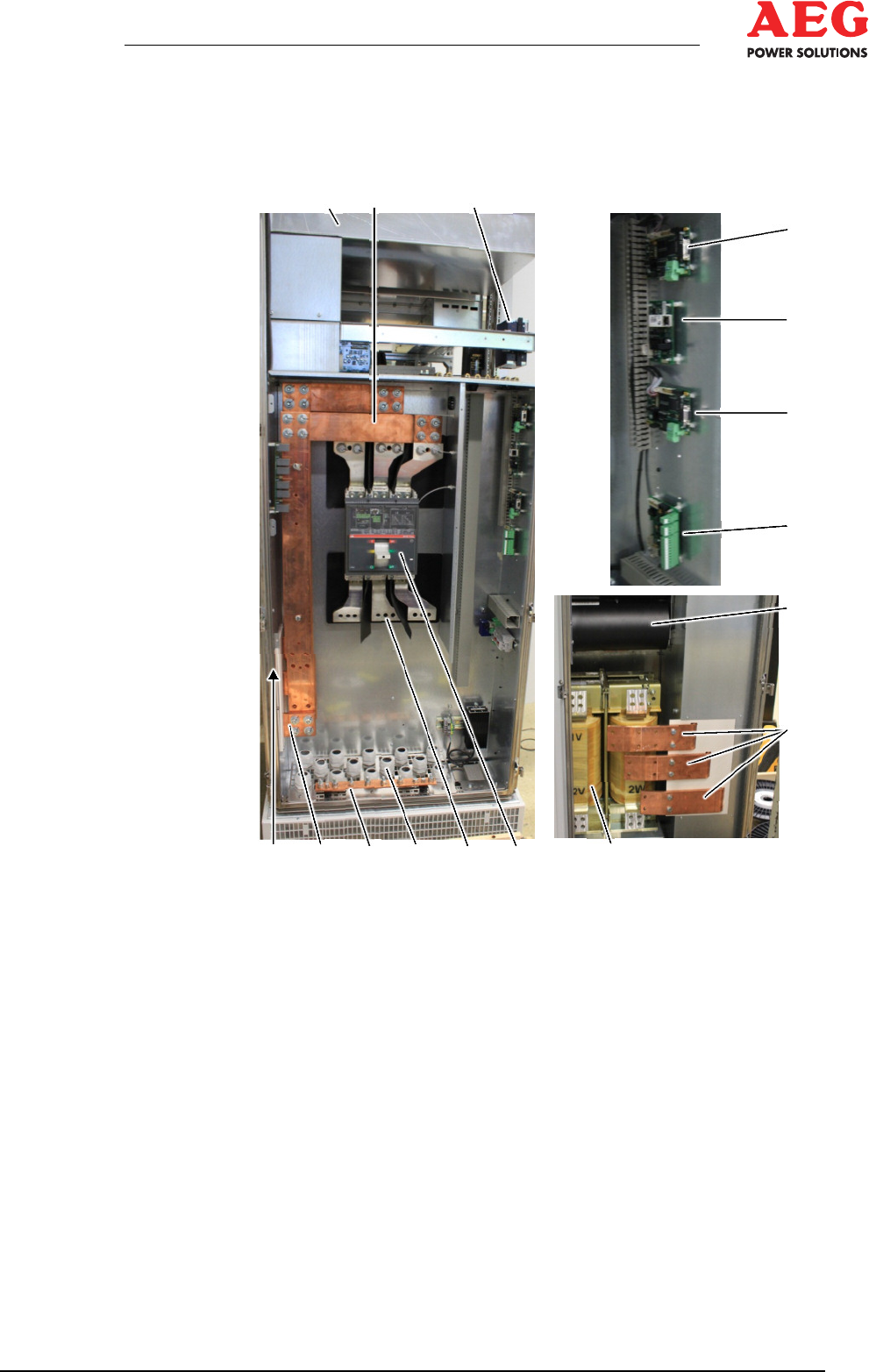

Figure 5 - LV main distribution (example)
1 Pressure chamber bypass
2 AC busbars
3 A51 power supply units
4 A29.1 CAN bus
5 A27 Ethernet
6 A29.2 Modbus
7 A12 remote signalling
8 Filter resistors
9 Filter capacitor
10 Load interrupter switch Q26.n
11 AC connections to transformer
12 AC cable feed-through
13 PE busbar
The LVMD must always be kept closed during operation.
