Protect PV.600/800 OD Series - Operating Instructions
8000041160 BAL Page 51 of 100
1 2 2 3 4 5

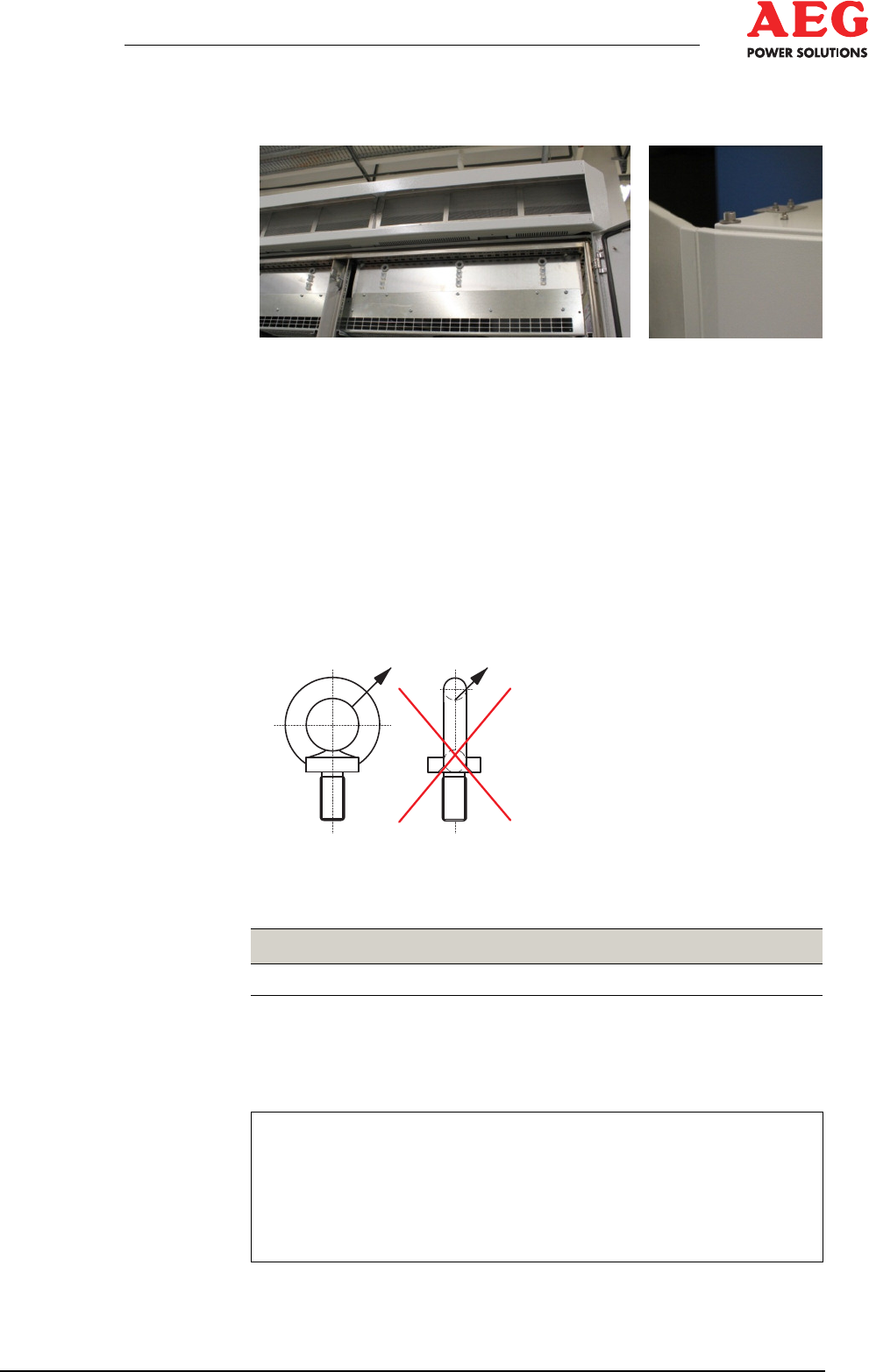

Figure 10 - Removing the roof
1 Roof
2 Screw connection
3 Cabinet door
4 Screw/placeholder
for eye bolt M16
5 Top of the cabinet
To do this, open the cabinet doors, unscrew the three screw con-
nections from the roof, lift the roof (approx. 50 kg) by moving it
forward and then lift it off completely by moving it towards the rear.
Preparatory work
1 2
Figure 11 - Crane transport load-bearing capacity
1 Eye bolt 2 Load-bearing capacity
F1 (vertical, 90°) F2 (45°)
M16 7000 N (700 kg) 5000 N (500 kg)
Table 10 - Load-bearing capacity according to DIN 580
• Use eye bolts in accordance with DIN 580.
i
Transverse loads on DIN 580 eye bolts
are forbidden!
In the case of multipoint suspension with 4 lines, the ring lev-
els of the eyelets must be in the direction of pull when the eye
bolts are firmly tightened.
