Protect PV.600/800 OD Series - Operating Instructions
8000041160 BAL Page 81 of 100

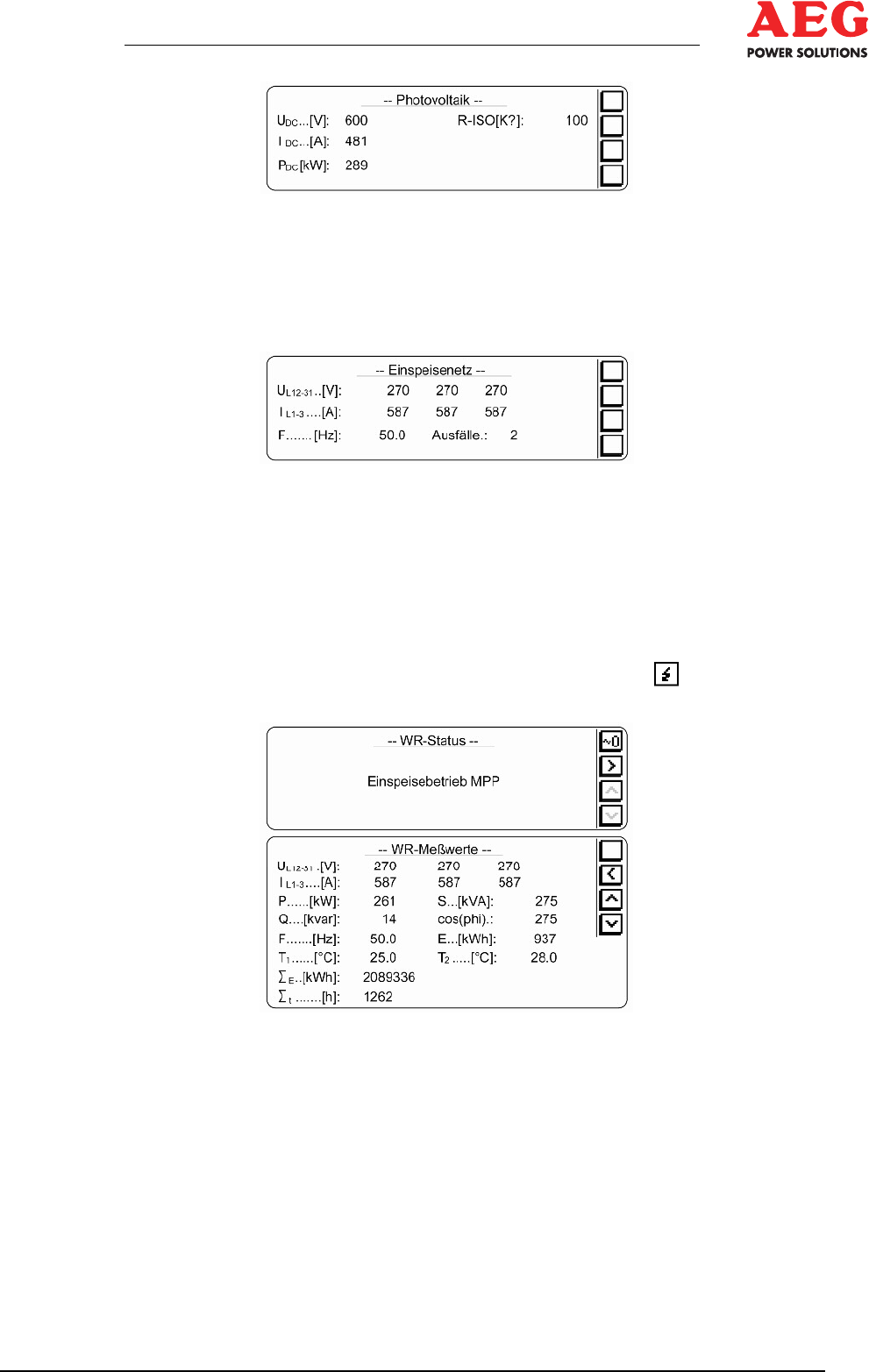

Figure 35 - Menu - Photovoltaics
The measured values of the incoming mains, as well as any mains
faults and equipment faults on the AC side, are displayed via the
"Incoming mains" menu item.
Figure 36 - Menu - Incoming mains
Statuses and measured values of the inverter are displayed via the
"Inverter" menu item. You can switch from one menu to the other
using the ">" and "<" keys.
In normal operation, the inverter can be switched on and off using
the top key here. In the event of a deactivating fault, you can call
up a detailed description of the fault here. Once it has been recti-
fied, the fault must be acknowledged using the key.
Figure 37 - Menu - Inverter
Measured values:
Voltage U and current I of the 3 phases
•
Power values P, S, Q and cos-phi
•
Frequency F and daily energy E
•
Ambient temperature of the cabinet T1 and supply air tem-
•
perature of the IGBT stack T2
Total energy counter E and
•
Inverter operating hours counter t
•
