MC CABLES

800-757-6996

Armor

Interlocked Aluminum Strip with ColorSpec

Conductors

Solid or Stranded Copper

Conductor Insulation

THHN/THWN

Assembly Covering

Polypropylene Tape

Maximum Temperature Rating

90°C (Dry)

Grounding

Insulated Green Grounding Conductor

Neutral Conductor

Gray 277/480V

Maximum Voltage Rating

600V

References & Ratings

• UL 83, 1479, 1569, 1581, 2556, File Reference E80042

• NEC

230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518,

520, 530, 645

• Federal Speciﬁcation A-A-59544 (formerly J-C-30B)

• Meets all applicable OSHA and HUD Requirements

• May be surface mounted, ﬁshed and/or embedded in plaster

• Cable Tray Rated, install per NEC

• UL Classiﬁed 1, 2, and 3 hour through (Fire) penetration product, R14141

• Environmental Air-Handling Space Installation per NEC

300.22(C)

• U.S. Patent No. 8,278,554 B2

• Made in USA of US and/or imported materials

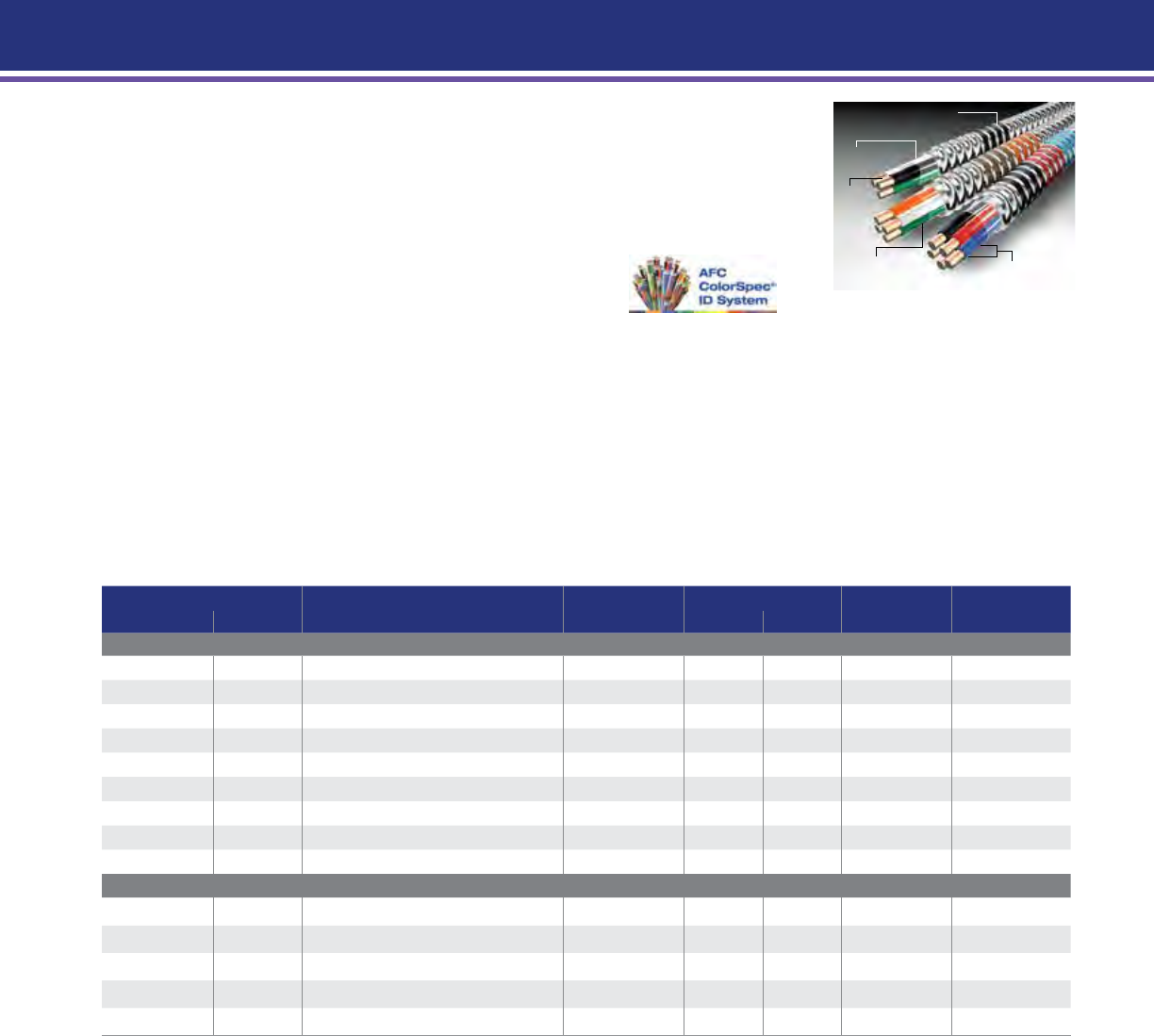

MC Lite® Aluminum Armored Cable

Type MC (277/480V Colors) Technical Specifications

Nylon Thermoplastic

THHN/THWN Insulation

Interlocked Aluminum Strip

ColorSpec

ID System

Green Insulated Copper

Grounding Conductor

Assembly Tape

Copper

Conductors

Product Code No.

Trade Size

Grounding

Conductor AWG

Length (ft)

Approx. Weight/

1,000ft (lbs)

Approx. Armor O.D.

(in)

Coil Reel Coil Reel

Solid 277/408V

2104S42-01 2104S60-01 12-2 Solid (Brown, Gray) 12 Solid (Green) 250 1000 106 0.517

2104S42-02 2104S60-02 12-2 Solid (Orange, Gray) 12 Solid (Green) 250 1000 106 0.517

2104S42-03 2104S60-03 12-2 Solid (Yellow, Gray) 12 Solid (Green) 250 1000 106 0.517

2104S42-07 2104S60-07 12-2 Solid (Purple, Gray) 12 Solid (Green) 250 1000 106 0.517

2105S42-01 2105S60-01 12-3 Solid (Brown, Orange, Gray) 12 Solid (Green) 250 1000 134 0.549

2105S42-02 2105S60-02 12-3 Solid (Orange, Yellow, Gray) 12 Solid (Green) 250 1000 134 0.549

2105S42-03 2105S60-03 12-3 Solid (Brown, Yellow, Gray) 12 Solid (Green) 250 1000 134 0.549

2105S42-07 2105S60-07 12-3 Solid (Brown, Purple, Gray) 12 Solid (Green) 250 1000 134 0.549

2106S42-01 2106S60-01 12-4 Solid (Brown, Orange, Yellow, Gray) 12 Solid (Green) 250 1000 162 0.586

Stranded 277/408V

2158S42-01 2158S60-01 12-2 Stranded (Brown, Gray) 12 Stranded (Green) 250 1000 111 0.538

2158S42-02 2158S60-02 12-2 Stranded (Orange, Gray) 12 Stranded (Green) 250 1000 111 0.538

2158S42-03 2158S60-03 12-2 Stranded (Yellow, Gray) 12 Stranded (Green) 250 1000 111 0.538

2159S42-01 2159S60-01 12-3 Stranded (Brown, Orange, Gray) 12 Stranded (Green) 250 1000 140 0.573

2160S42-01 2160S60-01 12-4 Stranded (Brown, Orange, Yellow, Gray) 12 Stranded (Green) 250 1000 169 0.613

NOTE: All dimensions and weights are subject to normal manufacturing tolerances. Other conductor colors available by special order

MC Lite® is also available in 8 AWG-2 through 2 AWG-4, see page 38.

AFC Cable Catalogwww.afcweb.com
