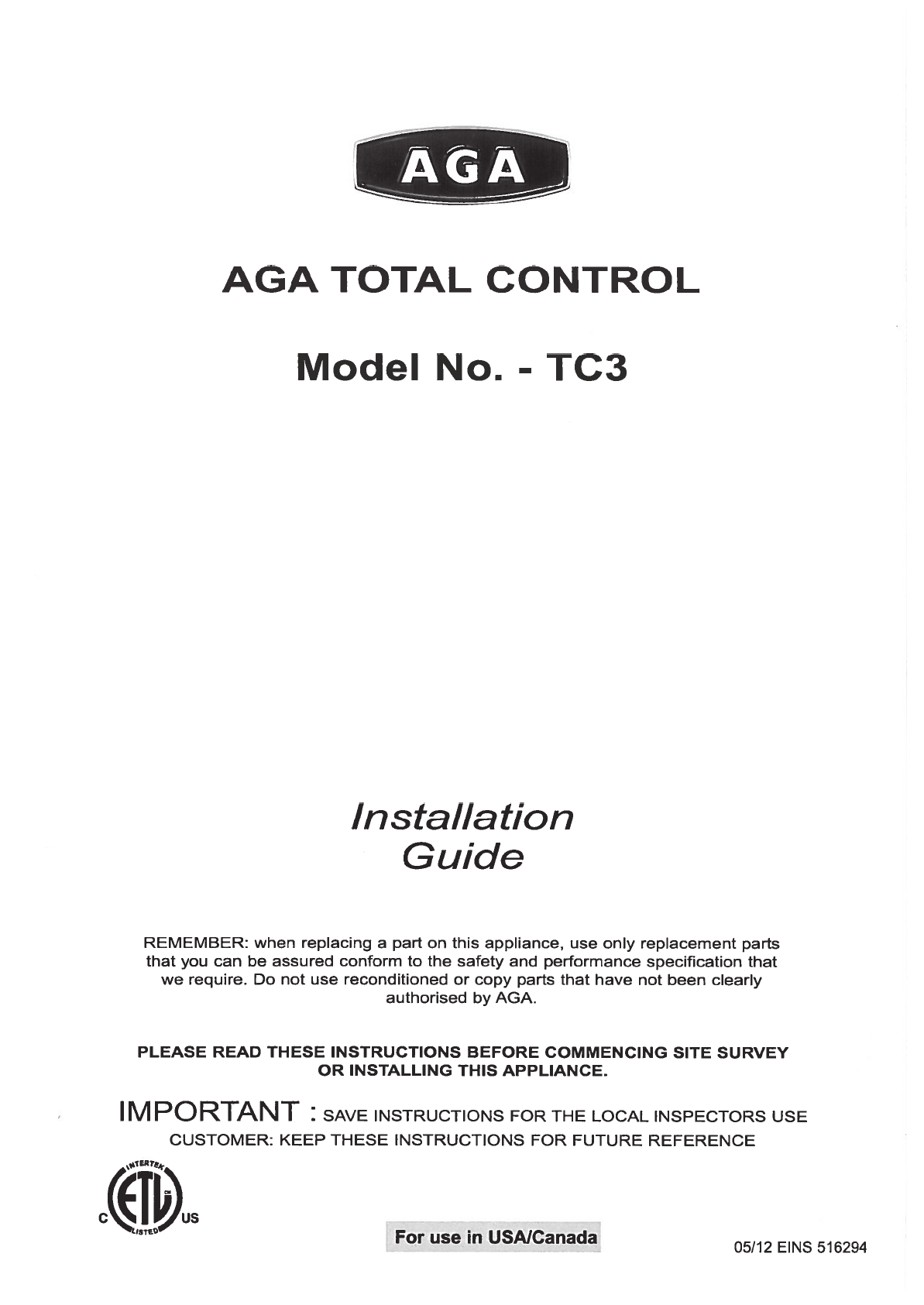

AGA TOTAL CONTROL Model No. TC3 Installation Guide REMEMBER: when replacing a part on this appliance, use only replacement parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorized by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY OR INSTALLING THIS APPLIANCE.
CONTENTS SECTION PAGE GENERAL NOTES AND DELIVERY 3 APPLIANCE DIMENSIONS AND WEIGHTS 4 INSTALLATION 5 INSTALLATION CLEARANCES 8 CONNECTION TO THE POWER SUPPLY 7 MAINS SUPPLY LOCATION 8 WIRING DIAGRAM 9 INSTRUCTIONS 10 CAUTION: THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE MANPOWER MUST BE USED IN MOVING THE RANGE TO AVOID DAMAGE TO THE UNIT OR THE FLOOR
GENERAL NOTES NOTE: THESE INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH THE APPLIANCE AND THE USER TO RETAIN FOR FUTURE REFERENCE.
APPLIANCE DIMENSIONS SINE VIEW venison MINIMUM WALL POSITION KNIT WALL POSITION Fig. 1 DENS 516297 987 945 910 680 1385 760 1145 698 116 10 ins | 3874 | 37%s | 35| 263 | 542 | 209 Cooker Dimensions When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be increased by 3/8" (10mm) beyond the figures quoted above, This allows safe margin to take into account the natural dimensional variations found in major castings.
o1} Range Base or Hearth It is essential that the base or hearth on which the range stands should be level and be capable of supporting the total weight of the range. The base of the built-in AGA plinth must be level and sit above finished floor height for service access. Plinth The front plinth cover is removable and must not be obstructed by flooring or tiles, If necessary the cooker must be raised by the thickness of the tiles to ensure the plinth can be removed.
CONNECTION THE POWER SUPP @ Electric Shock Hazard Electrical Grounding is required on this appliance. Rating plate is located behind removable plinth, see Fig. 3. DO NOT connect to the electrical supply until the appliance is permanently grounded. Disconnect the power to the junction box before making the electrical connection, This appliance must be connected to a grounded metallic permanent supply or a grounding connector should be connected to the grounding terminal or wire lead on the appliance.
MAINS SUPPLY LOCATION RATING LABEL LOCATED ' . BEHIND PLINTH, PULL l T TO REMOVE : THE MAINS SUPPLY CONNECTION AND ISOLATION POINT MUST BE WITHIN THE ZONE SHOWN Fig.
INSTRUCTIONS Hand this Installation Guide to the user for retention and instruct in the safe operation of the appliance. Also advise the user that, for continued efficient and safe operation of the appliance, servicing is carried out at intervals recommended by the AGA distributor.
For further advice or information contact your local AGA Specialist With AA's policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any ime US Office; AGA MARVEL 1260 £ Van Denise 8t Greenmail, Mi 48838 i marvelous 12
