Operating instructions

THERMOSTAT OPERATION

Setting 0: Closed Overnight Burning

Setting 1: 1/4 Open

Setting 2: 1/2 Open Slowburning

Setting 3: 3/4 Open Medium burning

Setting 4: Full Open Maximum Heat

Rotate the knob to give the required burning rate.

SECONDARY AIR CONTROL

OPEN When burning coal, timber or peat.

CLOSE When burning anthracite and

smokeless fuels.

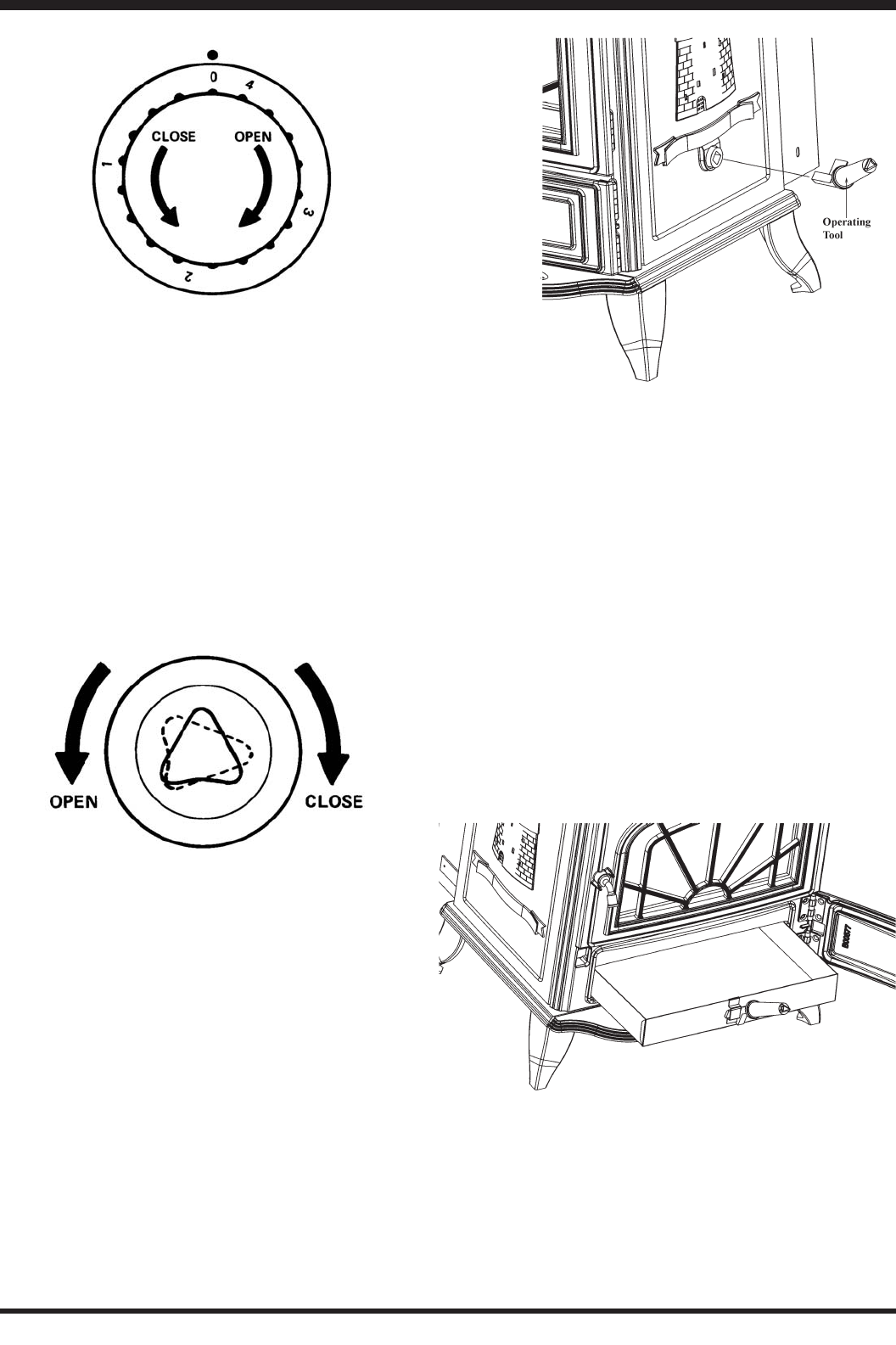

Fig.16

The secondary air control knob is hot when the

appliance is in use. The ashpan handle is a com-

bined operating tool and can be used to operate this

knob or use the glove provided.

DE-ASHING

When ash build-up becomes excessive in the fire

chamber shake the firebars by inserting the operat-

ing tool into the square slot on the right side of the

stove.

Fig.18

Fig.17

DISPOSAL OF ASHES

Your stove is provided with a steel ashpan. This

ashpan should be emptied every day.

If ashes are allowed to build to grate level you could

damage the firebars by overheating. We recom-

mend that you remove ashes after you have riddled

the fire following overnight burn.

Ashes should be placed in a metal or other non-

combustible container with a tight fitting lid. The

closed container of ashes should be placed on a

non-combustible material, pending final disposal. If

ashes are buried in soil, or otherwise dumped they

should be retained in the closed container until they

are thoroughly cooled. See Fig.19.

Fig.19

Replace ashpan. Close ashpit Door.
